Chicago PneumaticT025214

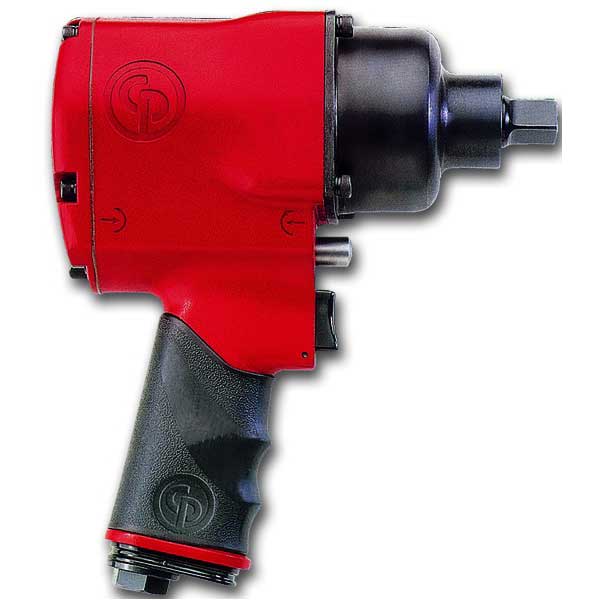

CP6500 RS | 1/2 in. 625 ft lb Air Impact Wrench, Pistol, 6400 rpm
Best heavy duty 1/2'' impact for the toughest jobs!
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP6500 RS 1/2 in. 625 ft lb Air Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP6500 RS 1/2 in. 625 ft lb Air Impact Wrench Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP6500 RS 1/2 in. 625 ft lb Air Impact Wrench CE Certificate (PDF)Open
T025214 | CP6500 RS | 1/2 in. 625 ft lb Air Impact Wrench, Pistol, 6400 rpmCP6500 RS
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CP6300 RSRT025285 | CP6300 RSR | 3/8 in. 180 ft lb Air Impact Wrench, Pistol, 6800 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 625 ft lb Air Impact Wrench, Pistol, 6400 rpm
CP6500 RS
CP6500 RS, 1/2 in. 625 ft lb Air Impact Wrench, Pistol, 6400 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. 625 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Best performer for Industrial Maintenance & Production applications
- Operator comfort and control even on high torque
- Reliable double-dog clutch in oil bath & durable housing
- Compact 3-part construction for easy maintenance
Features
- 1/2" industrial impact wrench with Pin-type socket retainer
- CP's patented double dog clutch with oil bath
- Aluminum body & steel clutch housing
- Regulator 4 settings & One-hand reverse
- Comfortable handle with rubber grip
| Technical Specifications | |
|---|---|
| Max working torque fwd | 680 Nm |
| Max torque reverse | 850 Nm |
| Min working torque fwd | 170 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration (m/s²) | 8 |
| Free Speed | 6400 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 178 mm |
| Power weight ratio | 320 Nm/kg |
| Side to Center | 32 mm |
| Weight | 2.65 kg |
| Blow per minute | 1320 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Aluminium |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Pin retainer |
| Starting system | Trigger |
| MPN | CP6500 RS |
| Features & Benefits | |
| Ideal for Maintenance and Production | |
| Ring retainer | |
