Chicago Pneumatic6151590100

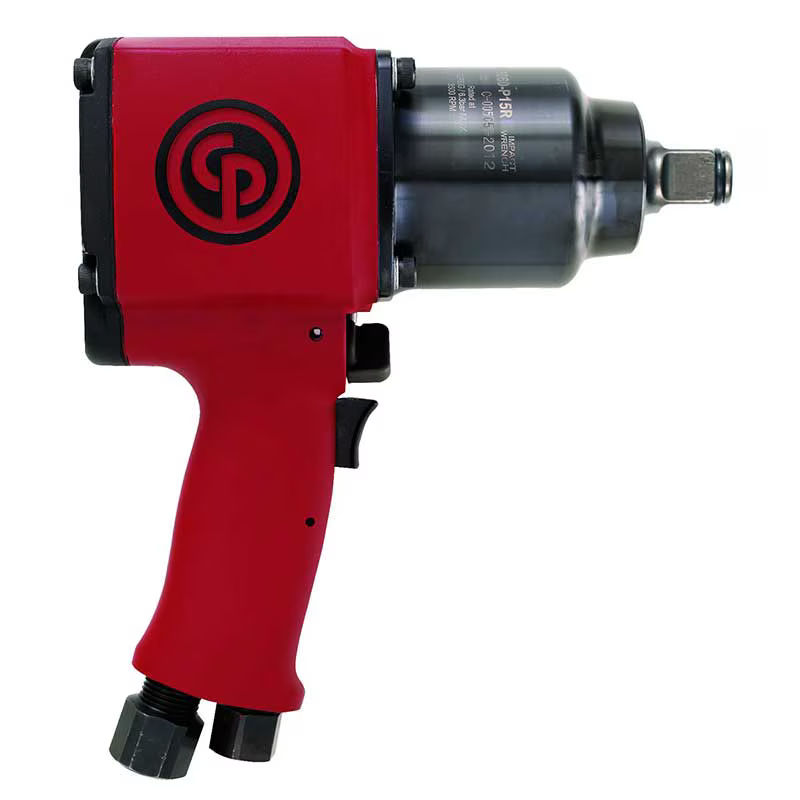

CP6060-P15R | 3/4 in. 1100 ft lb Air Impact Wrench, Pistol, 4000 rpm
The Best super industrial 3/4'' square impact
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151590100 | CP6060-P15R | 3/4 in. 1100 ft lb Air Impact Wrench, Pistol, 4000 rpmCP6060-P15R
Price on request
Details
Product information
Overview
Chicago Pneumatic 3/4 in. 1100 ft lb Air Impact Wrench, Pistol, 4000 rpm
CP6060-P15R
CP6060-P15R, 3/4 in. 1100 ft lb Air Impact Wrench, Pistol, 4000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3/4 in. 1100 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Constant & progressive Performances thanks to the 2-Jaw clutch
- Superior Quality resisting to worst conditions and usages
- Unmatched comfort for the Safety First
- Best 3/4" impact for Industrial Maintenance and Production applications
Features
- Super Industrial 3/4" impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Durable reverse valve & steel trigger
- Compact 3-part construction & easy maintenance
- Ring type socket retainer for easy versatility
| Technical Specifications | |
|---|---|
| Max working torque fwd | 1220 Nm |
| Max torque reverse | 1490 Nm |
| Min working torque fwd | 270 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Uncertainty vibration-K | 4.1 m/s² |
| Vibration (m/s²) | 13.9 |
| Free Speed | 4000 rpm |
| Air consumption at free speed | 35 l/s |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 222 mm |
| Power weight ratio | 280 Nm/kg |
| Side to Center | 37 mm |
| Weight | 5.3 kg |
| Blow per minute | 1100 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | 2-jaws |
| Main Material type | Aluminium |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP6060-P15R |
| Features & Benefits | |
| Unmatched durability | |
