Chicago Pneumatic6151580170

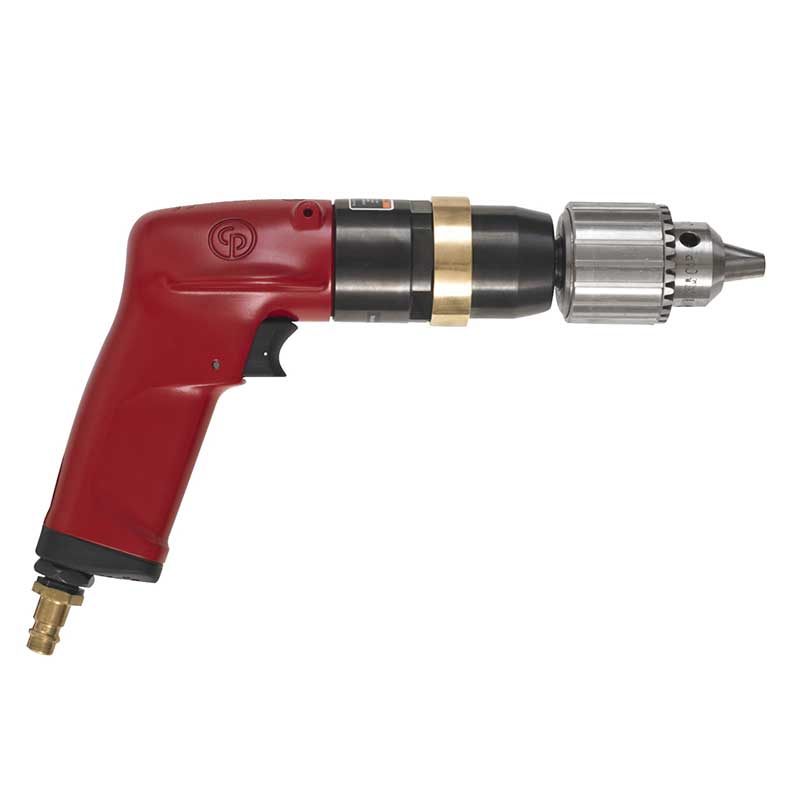

CP1117P05-K | 1/2 in. Pneumatic Air Drill, 1 hp, 500 rpm, 22.2 ft lb stall
The best power to weight ratio drills for Industrial production, intensive duty with high durability and operator comfort.
$513.92List $642.40
Save $128.48Total$513.92Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580170 | CP1117P05-K | 1/2 in. Pneumatic Air Drill, 1 hp, 500 rpm, 22.2 ft lb stallCP1117P05-K
Total$513.92
1
Details
Product information
Overview
Chicago Pneumatic 1/2 in. Pneumatic Air Drill, 1 hp, 500 rpm, 22.2 ft lb stall
CP1117P05
CP1117P05, 1/2 in. Pneumatic Air Drill, 1 hp, 500 rpm, 22.2 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Improve your productivity thanks to high power & speed
- Operator comfort thanks to exclusive ergonomic features
- Super Industrial drills designed for intensive duty and high durability
Features
- 1/2" (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
- The best power to weight ratio with 1 hp (750 W) motor
- Durable gearbox reduce maintenance cost and downtime
- Includes side handle for torque reaction
| Technical Specifications | |
|---|---|
| Model | CP1117P05-K |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 203 |
| Free Speed (RPM) | 500 |
| SKU | 6151580170 |
| Stock Code | 2 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 22.2 |
| Weight (lbs) | 3.4 |
| Actuation | Trigger |
| Stall Torque (ft lb) | 22.2 |
| Series | CP1117 |
| Spindle | 3/8'' - 24 |
| Stall Torque (in lb) | 266.4 |
| Air Inlet NPT (in) | 1/4 |
| Chuck Capacity (in) | 1/4 |
| Rated Power (hp) | 1 |
| Air Consp. @ Free Speed (L/s) | 16.1 |
| MPN | CP1117P05-K |
| Features & Benefits | |
| High power 1hp (750W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations | |
| High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) | |
| Key Chuck | |
| High Ergonomic with compact CP Ergo Wings body | |
| Low Noise and Low vibrations | |
| High quality industrial pistol drill with keyless | |
| without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) | |
