Chicago Pneumatic6151580090

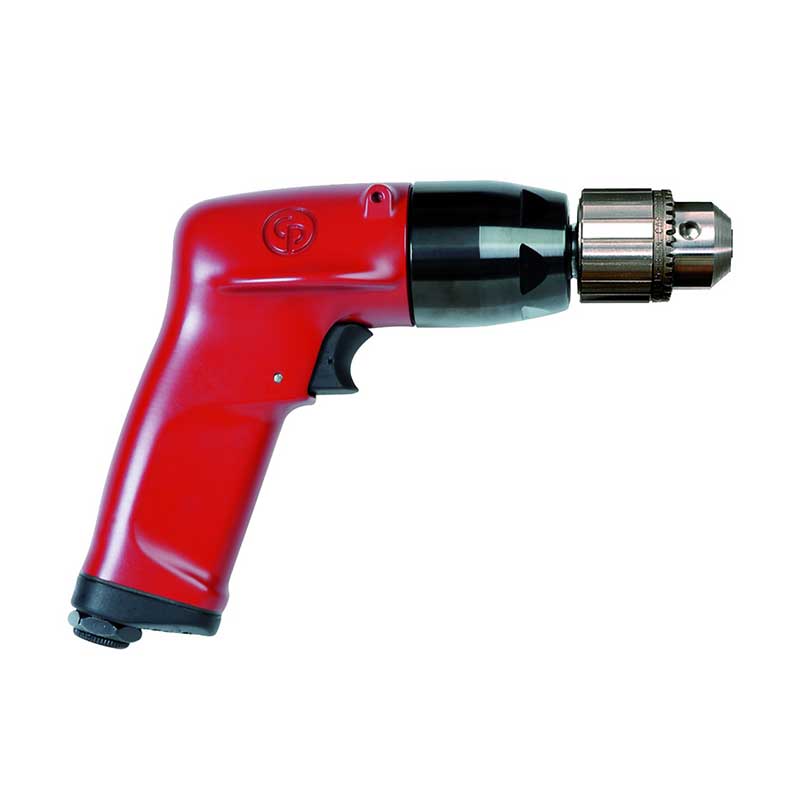

CP1117P60-K | 3/8 in. Pneumatic Air Drill, 1 hp, 6000 rpm, 2.5 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1117P60 3/8 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1117P60 3/8 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1117P60 3/8 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580090 | CP1117P60-K | 3/8 in. Pneumatic Air Drill, 1 hp, 6000 rpm, 2.5 ft lb stallCP1117P60-K
Price on request
Details
Product information
Overview
Chicago Pneumatic 3/8 in. Pneumatic Air Drill, 1 hp, 6000 rpm, 2.5 ft lb stall
CP1117P60
CP1117P60, 3/8 in. Pneumatic Air Drill, 1 hp, 6000 rpm, 2.5 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Improve your productivity thanks to high power & speed
- Operator comfort thanks to exclusive ergonomic features
- Designed for intensive duty and high durability for industrial production applications
Features
- 3/8" (10 mm) industrial pistol drill with Jacobs industrial keyed chuck
- The best power to weight ratio with 1 hp (750 W) motor
- Durable gearbox reduce maintenance cost and downtime
| Technical Specifications | |
|---|---|
| Model | CP1117P60-K |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 180 |
| Free Speed (RPM) | 6000 |
| SKU | 6151580090 |
| Stock Code | 2 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 2.5 |
| Weight (lbs) | 2.2 |
| Actuation | Trigger |
| Stall Torque (ft lb) | 2.5 |
| Series | Low Speed |
| Spindle | 3/8'' - 24 |
| Stall Torque (in lb) | 30 |
| Air Inlet NPT (in) | 1/4 |
| Chuck Capacity (in) | 3/8 |
| Rated Power (hp) | 1 |
| Air Consp. @ Free Speed (L/s) | 16.5 |
| MPN | CP1117P60-K |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| Key Chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck,Key Chuck | |
