Chicago Pneumatic6151740240

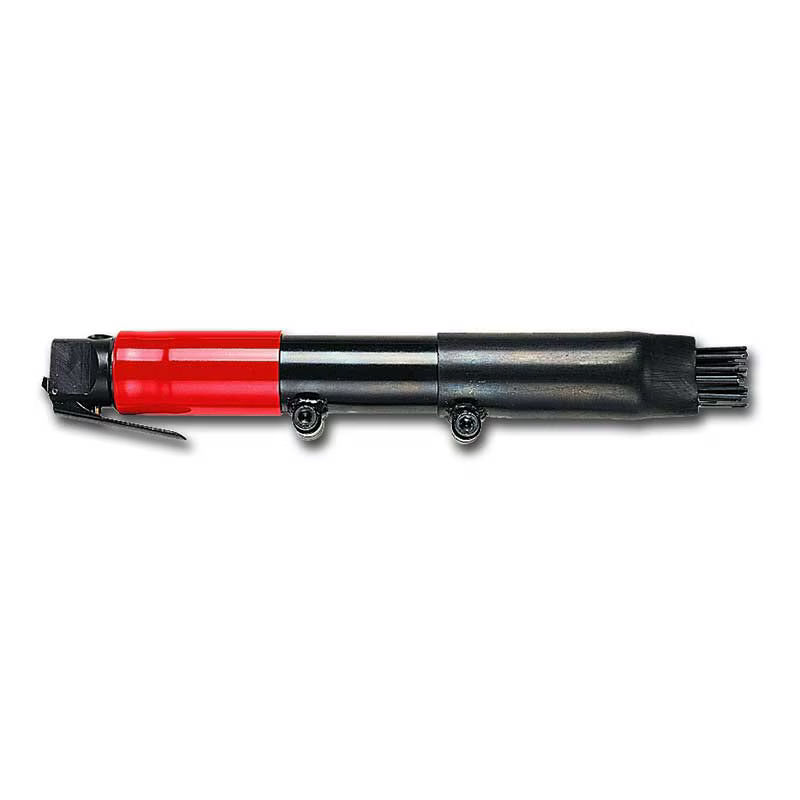

B15M | Needle Scaler, 3800 bpm, 2.9 Joules
Straight chipping hammer. Lightweight and Compact
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151740240 | B15M | Needle Scaler, 3800 bpm, 2.9 JoulesB15M
Price on request
Details
Product information
Overview
Chicago Pneumatic Needle Scaler, 3800 bpm, 2.9 Joules
B15M
B15M, Needle Scaler, 3800 bpm, 2.9 Joules by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Needle Scaler at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Great accessibility for hard to reach areas
- One hand operation
- Adjustable front tube grants extended needle life
Features
- Straight chipping hammer
- Lightweight and compact
- Easy to change to chipping hammer
- Possible to convert into 29 x 5/64" (2 mm)
| Technical Specifications | |
|---|---|
| Air consumption at load | 1.4 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.28 in |
| Min hose diam (5 m hose length) | 8 mm |
| Blow per minute | 3800 |
| Energy | 2.9 J |
| Main Material type | Steel, Composite over-sleeve |
| Needle capacity | 12x1/8 (3) |
| Starting system | Lever |
| Bore diameter | 18 mm |
| Length (L) | 335 mm |
| Stroke | 30 mm |
| Weight | 1.6 kg |
| ItemType | product |
| ItemCountryOfOrigin | GB |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Uncertainty vibration-K | 6.3 m/s² |
| Vibration | 10.6 m/s² |
| MPN | B15M |
| Features & Benefits | |
| Great accessibility for hard to reach areas | |
| Adjustable front tube grants extended needle life | |
| Easy to change to chipping hammer | |
| Possible to convert into 29 x 5/64'' (2 mm) | |
