Chicago Pneumatic6151740280
B18M | Needle Scaler, 3000 bpm, 5.8 Joules
Great size and power to guarantee maximum comfort to the operation in a wide range of applications
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151740280 | B18M | Needle Scaler, 3000 bpm, 5.8 JoulesB18M
Price on request
Details
Product information
Overview

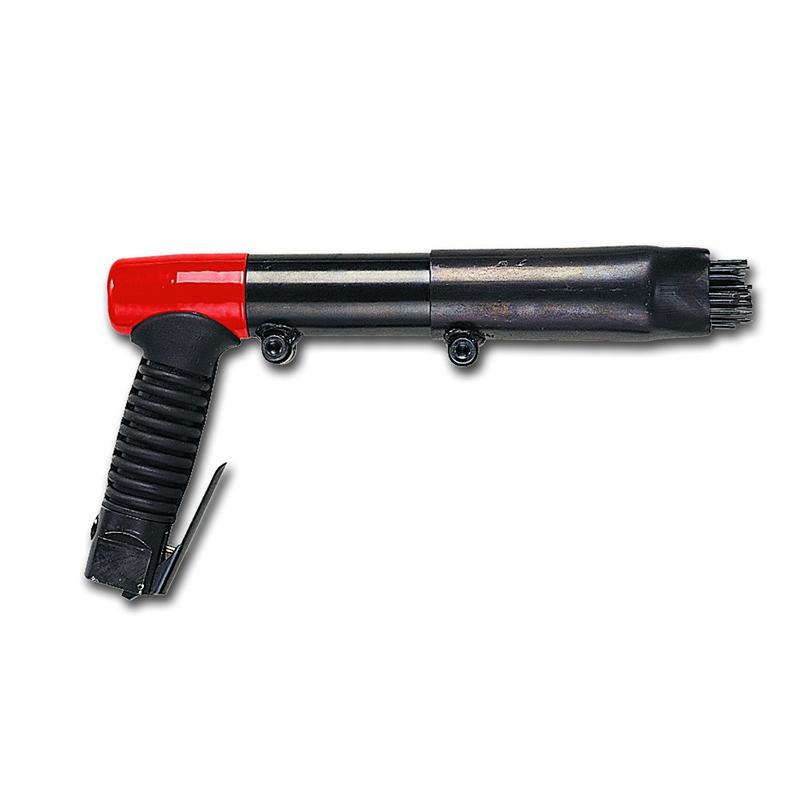

Chicago Pneumatic Needle Scaler, 3000 bpm, 5.8 Joules
B18M
B18M, Needle Scaler, 3000 bpm, 5.8 Joules by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Needle Scaler at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Great size and power to guarantee maximum comfort to the operation in a wide range of applications
- Adjustable barrel extends needle life
Features
- Cushion grip for better operator comfort
- Good power/weight ratio
- Great durability on all industrial maintenance and production applications
- Easy to change to chipping hammer
- Possible to convert into 51 x 5/64" (2 mm)
| Technical Specifications | |
|---|---|
| Air consumption at load | 2.6 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 3000 |
| Energy | 5.8 J |
| Needle capacity | 19x1/8 (3) |
| Starting system | Lever |
| Bore diameter | 23.5 mm |
| Length (L) | 315 mm |
| Stroke | 35.6 mm |
| Weight | 2.7 kg |
| ItemType | product |
| ItemCountryOfOrigin | GB |
| Sound Power | 111 dB(A) |
| Sound Pressure | 100 dB(A) |
| Uncertainty vibration-K | 5.7 m/s² |
| Vibration | 19.1 m/s² |
| MPN | B18M |
| Features & Benefits | |
| Adjustable barrel extends needle life | |
| Easy to change to chipping hammer | |
| Possible to convert into 51 x 5/64'' (2 mm) | |
| Great durability on all industrial maintenance and production applications | |
