Chicago Pneumatic6151740320
B19M | Needle Scaler, 2200 bpm, 9.5 Joules
Robust construction and power allows for very intensive use
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151740320 | B19M | Needle Scaler, 2200 bpm, 9.5 JoulesB19M
Price on request
Details
Product information
Overview

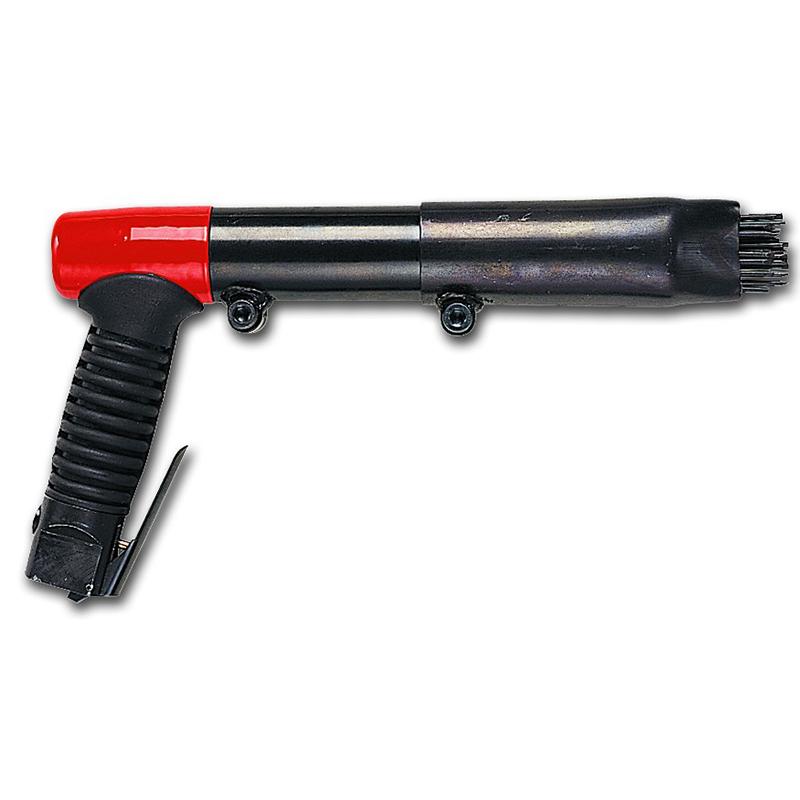

Chicago Pneumatic Needle Scaler, 2200 bpm, 9.5 Joules
B19M
B19M, Needle Scaler, 2200 bpm, 9.5 Joules by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Needle Scaler at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Robust construction and power allows for very intensive use
- Adjustable barrel extends needle life
Features
- Cushion grip for better operator comfort
- Heavy duty chipping hammer
- Suitable for very intensive use
- Easy to change to chipping hammer
- Possible to convert into 19 x 5/32" (4 mm) or 65 x 5/64" (2 mm)
| Technical Specifications | |
|---|---|
| Air consumption at load | 3.8 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 2200 |
| Energy | 9.5 J |
| Main Material type | Steel |
| Needle capacity | 28x1/8 (3) |
| Starting system | Lever |
| Bore diameter | 28.6 mm |
| Length (L) | 342 mm |
| Stroke | 39 mm |
| Weight | 3.7 kg |
| ItemType | product |
| ItemCountryOfOrigin | GB |
| Sound Power | 112 dB(A) |
| Sound Pressure | 91 dB(A) |
| Uncertainty vibration-K | 10.3 m/s² |
| Vibration | 16.9 m/s² |
| MPN | B19M |
| Features & Benefits | |
| Adjustable barrel extends needle life | |
| Easy to change to heavy duty chipping hammer | |
| Possible to convert into 19 x 5/32'' (4 mm) or 65 x 5/64'' (2 mm) | |
| Suitable for very intensive use | |
