Chicago Pneumatic6151740170
GV5 | 3/4 in Hex Shank Pneumatic Hammer, 2400 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151740170 | GV5 | 3/4 in Hex Shank Pneumatic Hammer, 2400 bpmGV5
Price on request
Details
Product information
Overview

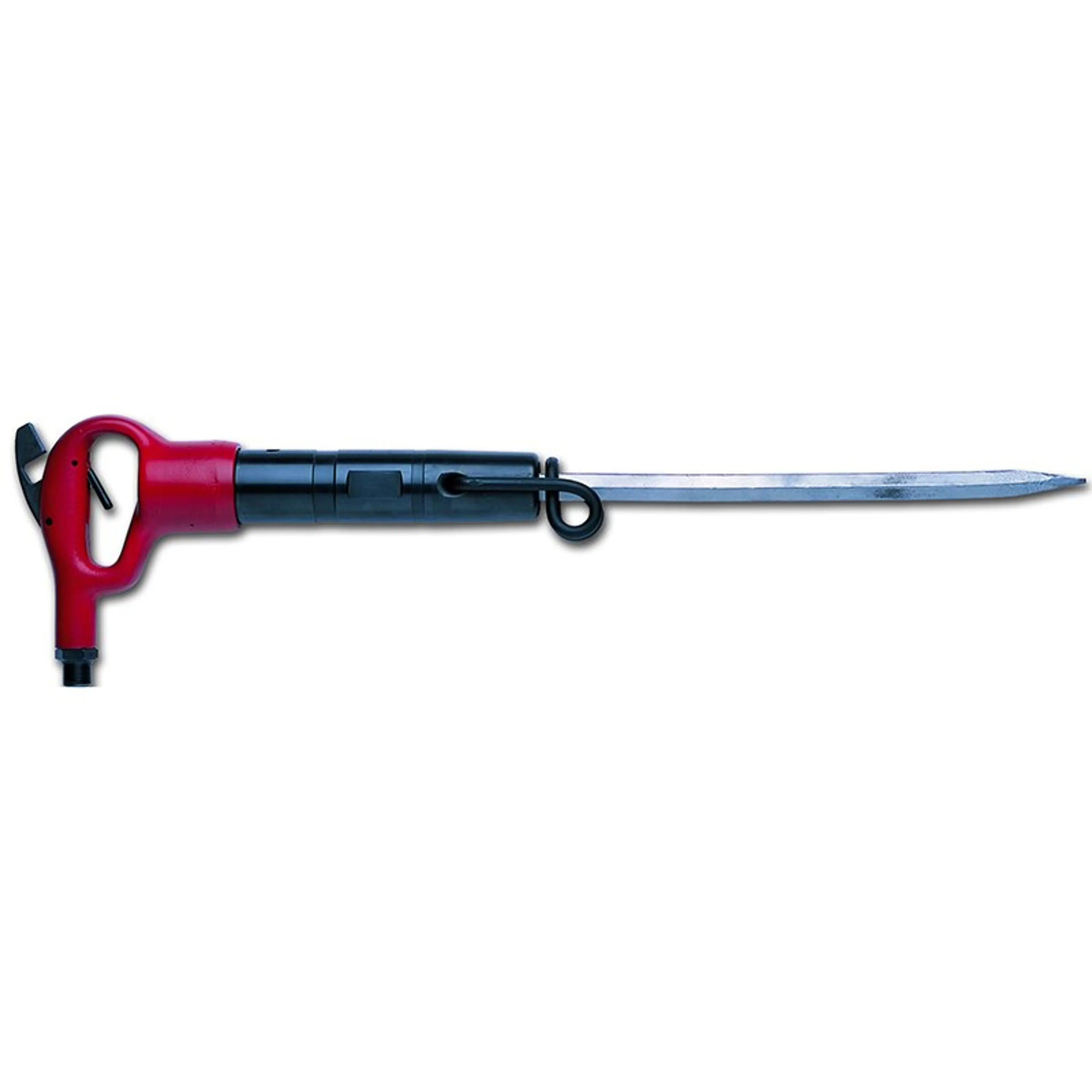

Chicago Pneumatic 3/4 in Hex Shank Pneumatic Hammer, 2400 bpm
GV5
GV5, 3/4 in Hex Shank Pneumatic Hammer, 2400 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Pneumatic Hammer at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Sturdy design for heavy applications
- Powerful and durable
- Ideal tool for heavy chipping or cutting applications
Features
- Pneumatic Hammer for heavy industrial application
- Safety lever furnished
- Hexagonal 3/4" (19.2 mm) Shank
| Technical Specifications | |
|---|---|
| Blow per minute | 2400 |
| Chisel shank | Hex |
| Chisel shank diameter (in) | 3/4 |
| Chisel shank diameter (mm) | 19.01 |
| Energy | 12 J |
| Starting system | Trigger |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Uncertainty vibration-K | 7.9 m/s² |
| Vibration | 19.8 m/s² |
| Bore diameter | 28 mm |
| Length (L) | 385 mm |
| Stroke | 52.5 mm |
| Weight | 5.1 kg |
| Air consumption at load | 8.3 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| MPN | GV5 |
