Chicago Pneumatic6151800120

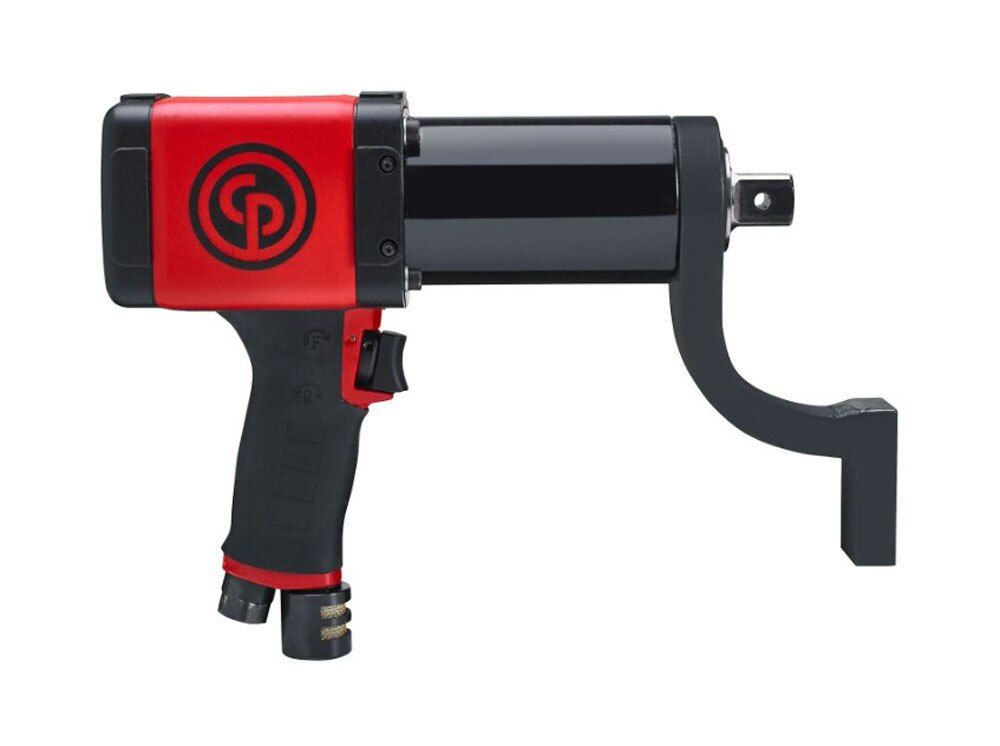

CP6613-FRL | Pneumatic Nutrunner + ATC Pack
Pneumatic Nutrunner + ATC Pack
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
6151800120 | CP6613-FRL | Pneumatic Nutrunner + ATC PackCP6613-FRL
Price on request
Details
Product information
Overview
Chicago Pneumatic Pneumatic Nutrunner Pk
CP6613-FRL
Pneumatic Nutrunner Pk, model CP6613-FRL, by Chicago Pneumatic. Do you see the CP6613-FRL at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| 6s Torque scatter % | ±5 % |
| Max torque in forward | 1300 Nm |
| Max torque reverse | 1300 Nm |
| Min torque in forward | 320 Nm |
| Torque Control System | Non shut-off-stall |
| Adjustment | Torque Chart |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Composite |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Reaction bar type | S-type |
| Reversible | Yes |
| Spline type | 40 |
| Starting system | Trigger |
| Suspension option | Optional |
| Height (H) | 212 mm |
| Length (L) | 254 mm |
| Width (W) | 72 mm |
| Side to Center | 32 mm |
| Weight | 3.7 kg |
| Weight without reaction arm | 3.7 kg |
| Weight with reaction arm | 4.4 kg |
| Free Speed | 20 rpm |
| Air consumption at free speed | 23 l/s |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Vibration (m/s²) | <2.5 |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (3 m hose length) | 16 mm |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| MPN | CP6613-FRL |
