Chicago Pneumatic6151740600
CP4282 | Rivet Hammer, 2X, 0.401 in. shank, 2580 bpm
Aerospace riveting solution from Chicago Pneumatic
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP42 Series Rivet Hammers and Squeezers Brochure (PDF)Open
- PDFChicago Pneumatic CP42 Series Rivet Hammers Operators Manual (PDF)Open
- PDFChicago Pneumatic CP4282 CP4283 CP4284 Rivet Hammer Parts Breakdown (PDF)Open
- PDFChicago Pneumatic Hammers and Scalers Safety Information (PDF)Open
6151740600 | CP4282 | Rivet Hammer, 2X, 0.401 in. shank, 2580 bpmCP4282
Price on request
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview

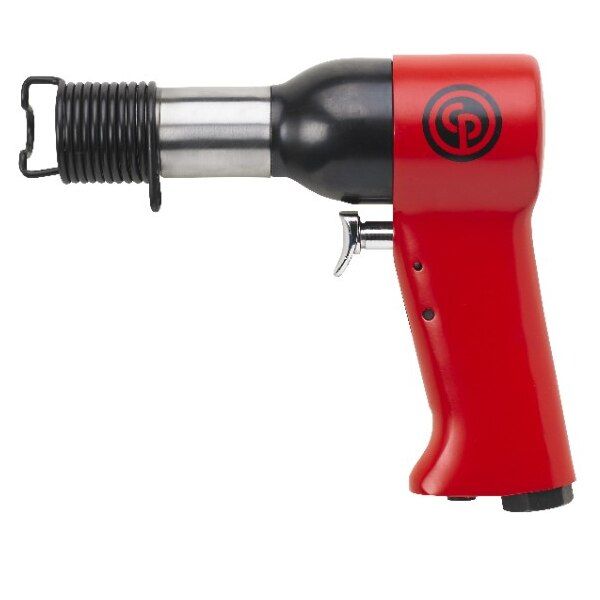

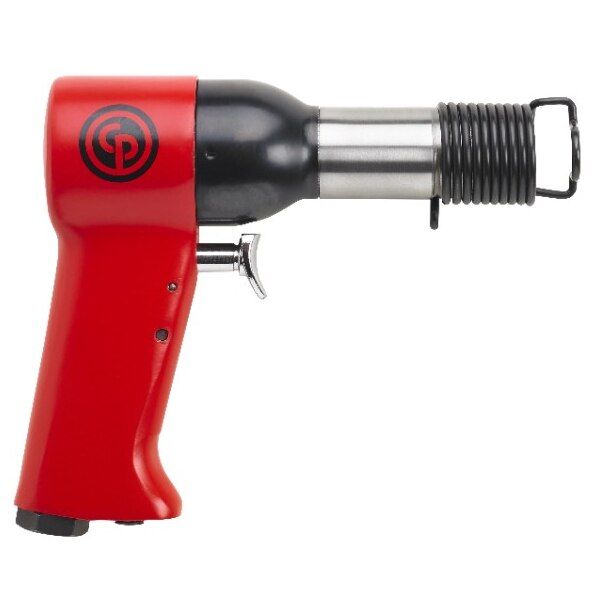

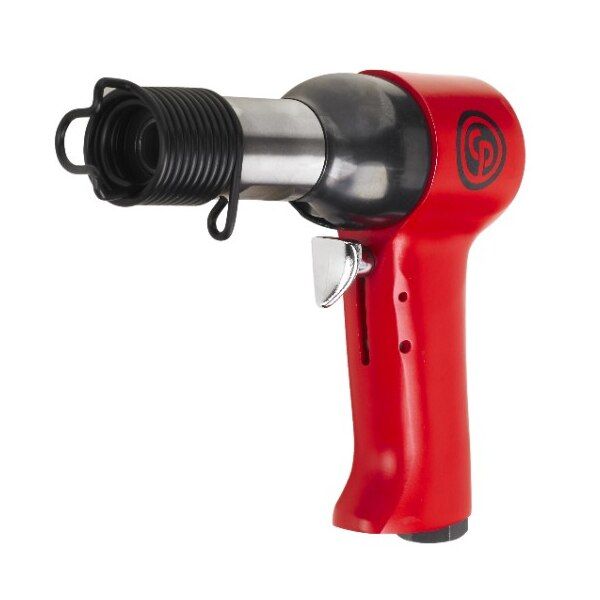

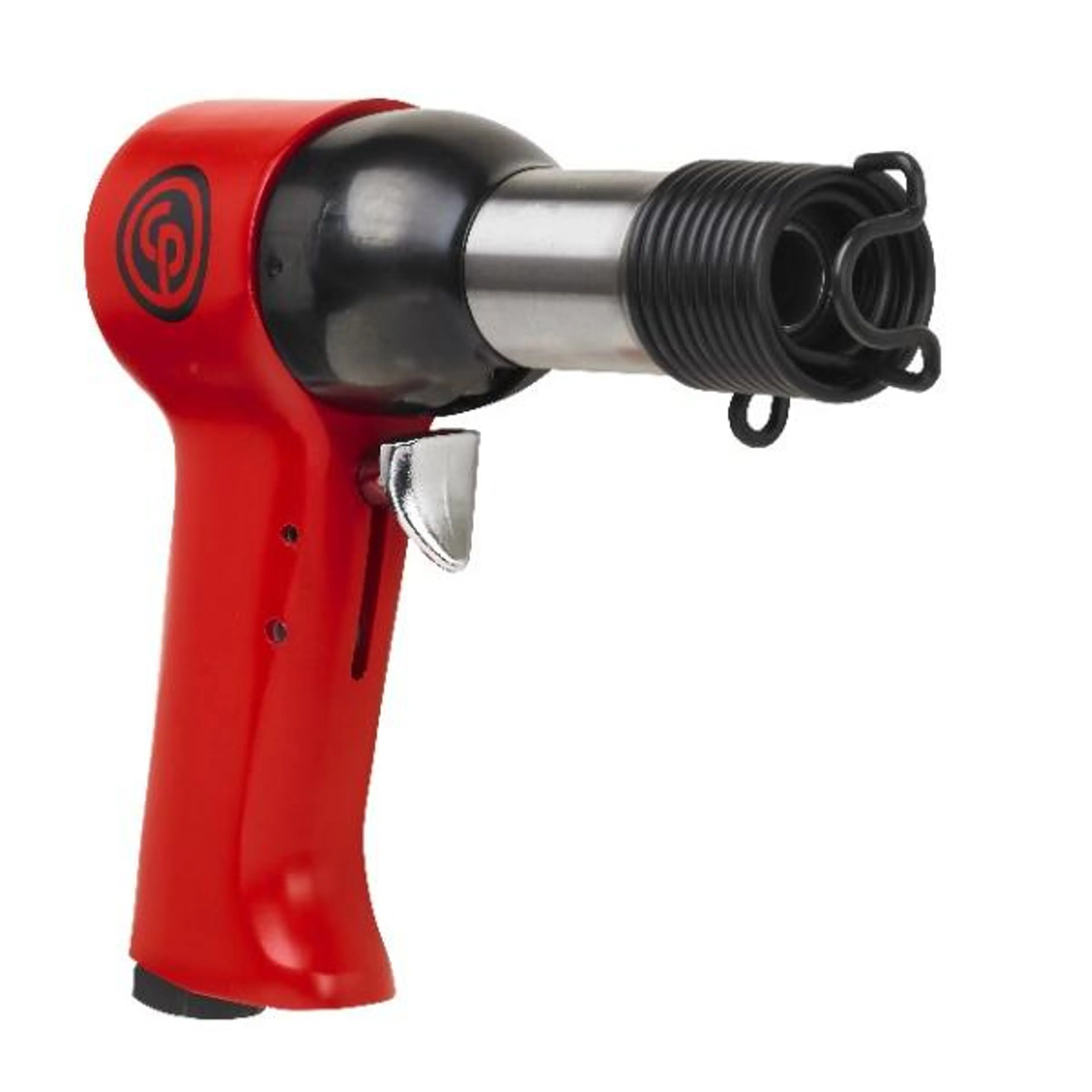

Chicago Pneumatic Rivet Hammer, 2X, 0.401 in. shank, 2580 bpm
Rivet Hammer, 2X, 0.401 in. shank, 2580 bpm, model# CP4282 available to order online. Do you see this Chicago Pneumatic Rivet Hammer available elsewhere for a lower price? Contact Customer Service to price match!
Benefits
- Efficient and powerful
- Lightweight and comfortable to hold
- Excellent control with teasing trigger
Features:
- Designed for rivets up to 1/8"
- Delivered with chiesel retainer included in the box
- To be used with chiesel kit 6153609400
CP4282 by Chicago Pneumatic
The Aerospace riveting solution from Chicago Pneumatic! This Rivet Hammer has a 3/32 and 1/8 in. rivet capacity.
| Technical Specifications | |
|---|---|
| Air consumption at free speed (Normo) | 5.2 1/sNl |
| Air consumption at free speed | 1.9 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 9.5 mm |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 3 m/s² |
| Vibration | 14 m/s² |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Bore diameter | 12.7 mm |
| Height (H) | 142.8 mm |
| Length (L) | 170 mm |
| Width (W) | 50.8 mm |
| Stroke | 57 mm |
| Weight | 1.26 kg |
| Blow per minute | 2580 |
| Chisel shank diameter (in) | 0.401 |
| Chisel shank diameter (mm) | 10.2 |
| Energy | 3.4 J |
| Main Material type | Aluminium, Steel |
| Max rivet size aluminium (in) | 1/8 |
| Max rivet size aluminium (mm) | 3.2 |
| Max rivet size steel (in) | 3/32 |
| Max rivet size steel (mm) | 2.4 |
| Rivet hammer type | 2X |
| Starting system | Trigger |
| MPN | CP4282 |
| Features & Benefits | |
| Efficient and powerful | |
| Lightweight and comfortable to hold | |
| Excellent control with teasing trigger | |
| Designed for rivets up to 1/8" | |
