Chicago Pneumatic6151740650

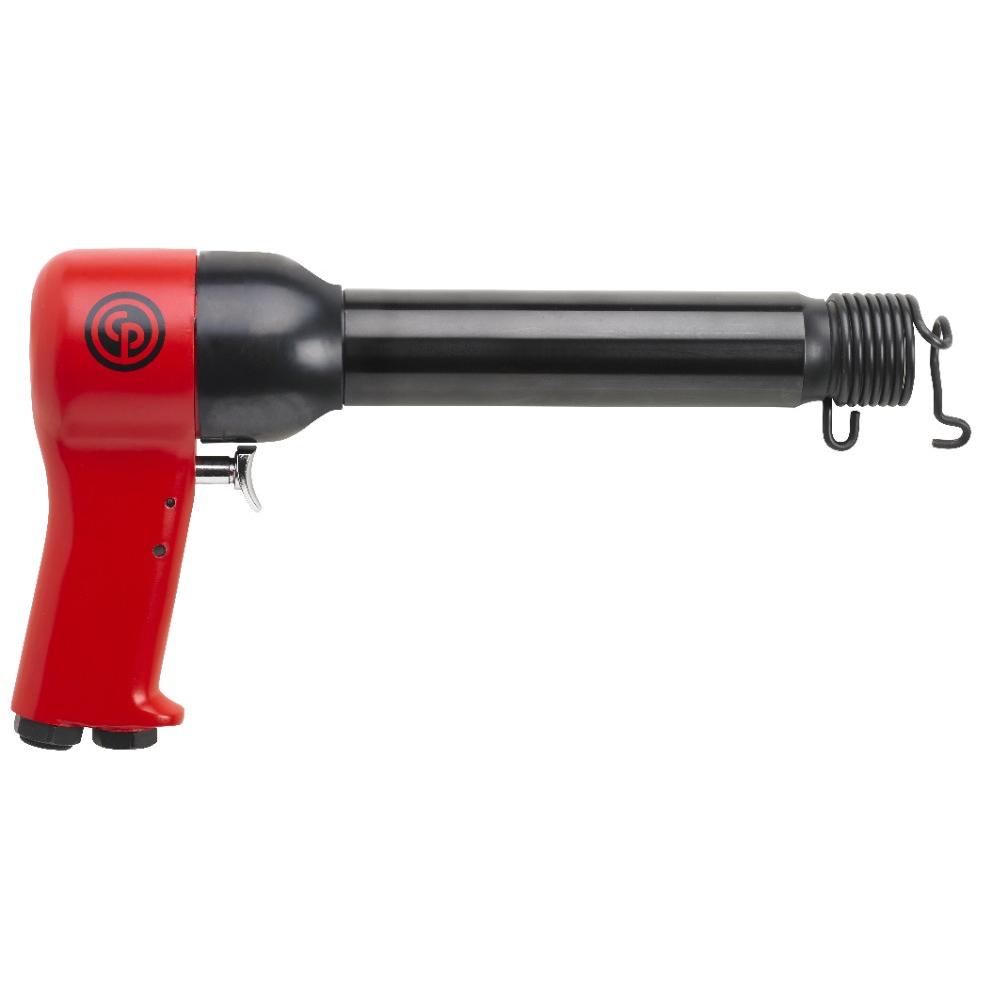

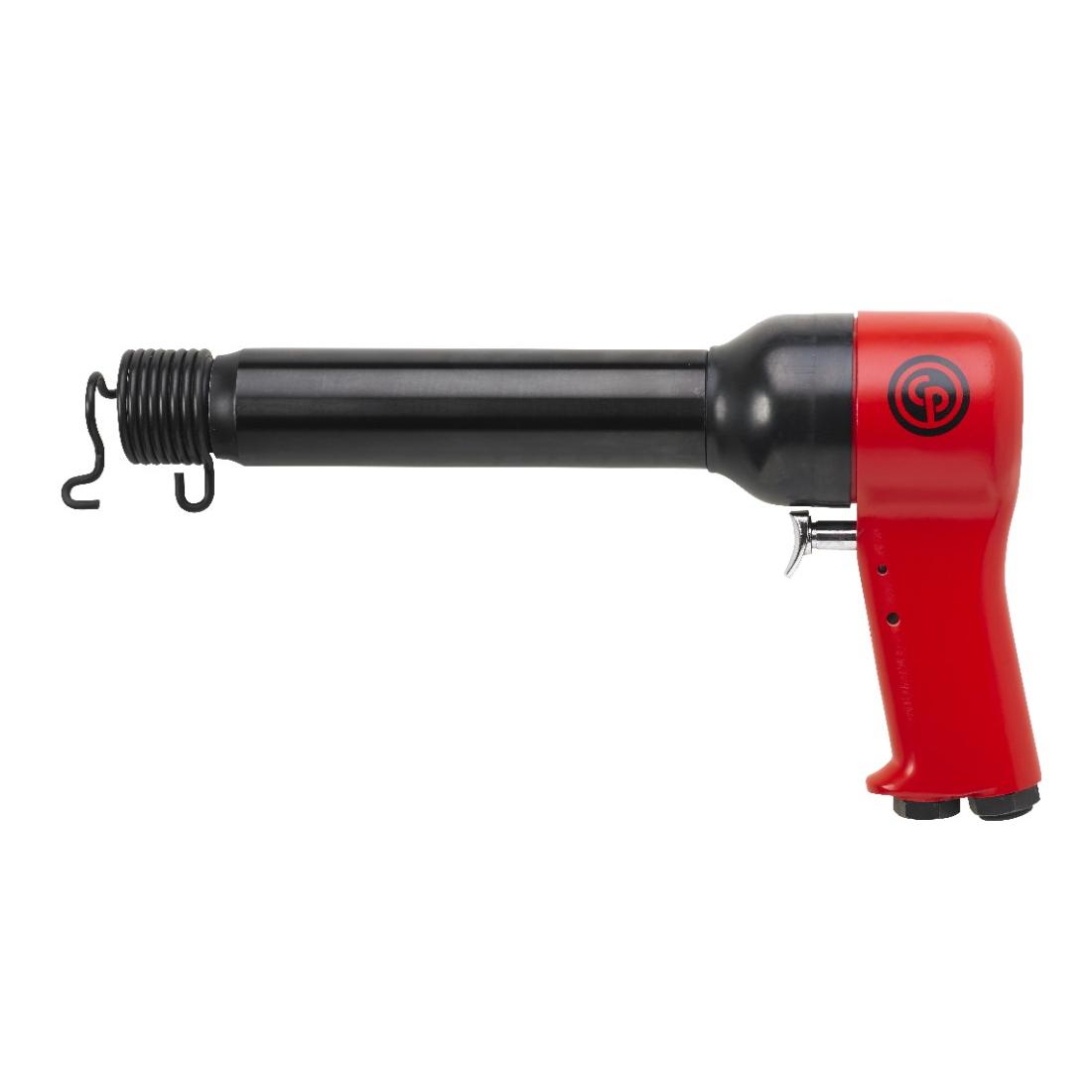

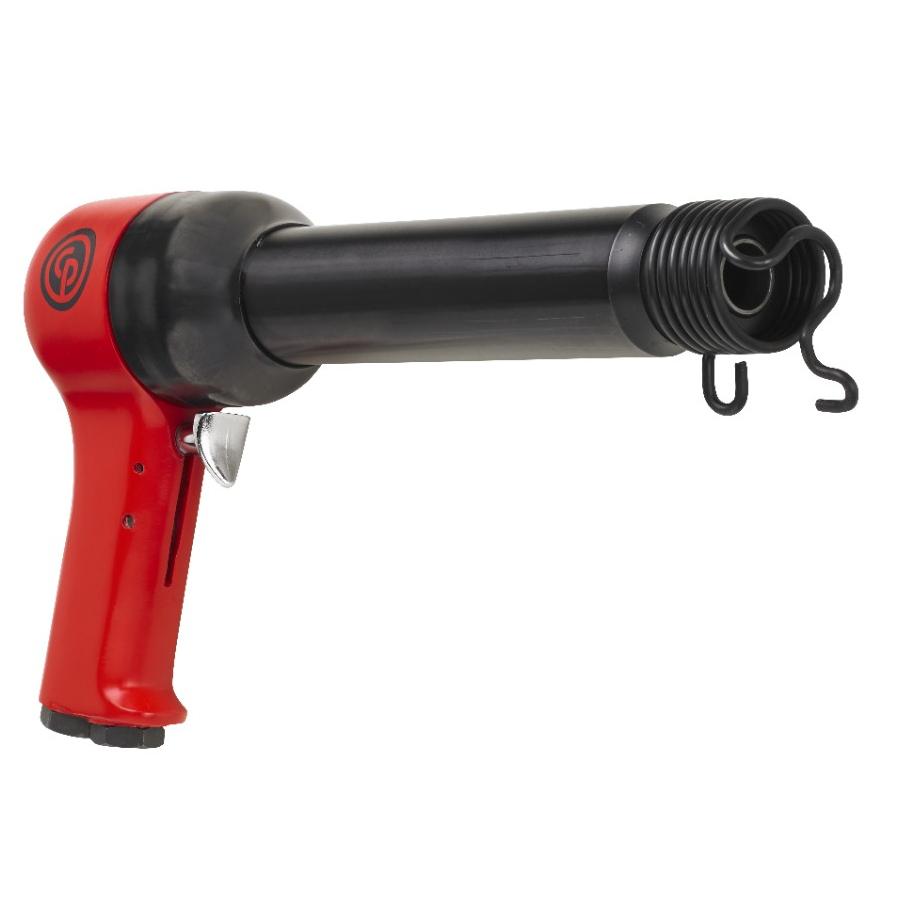

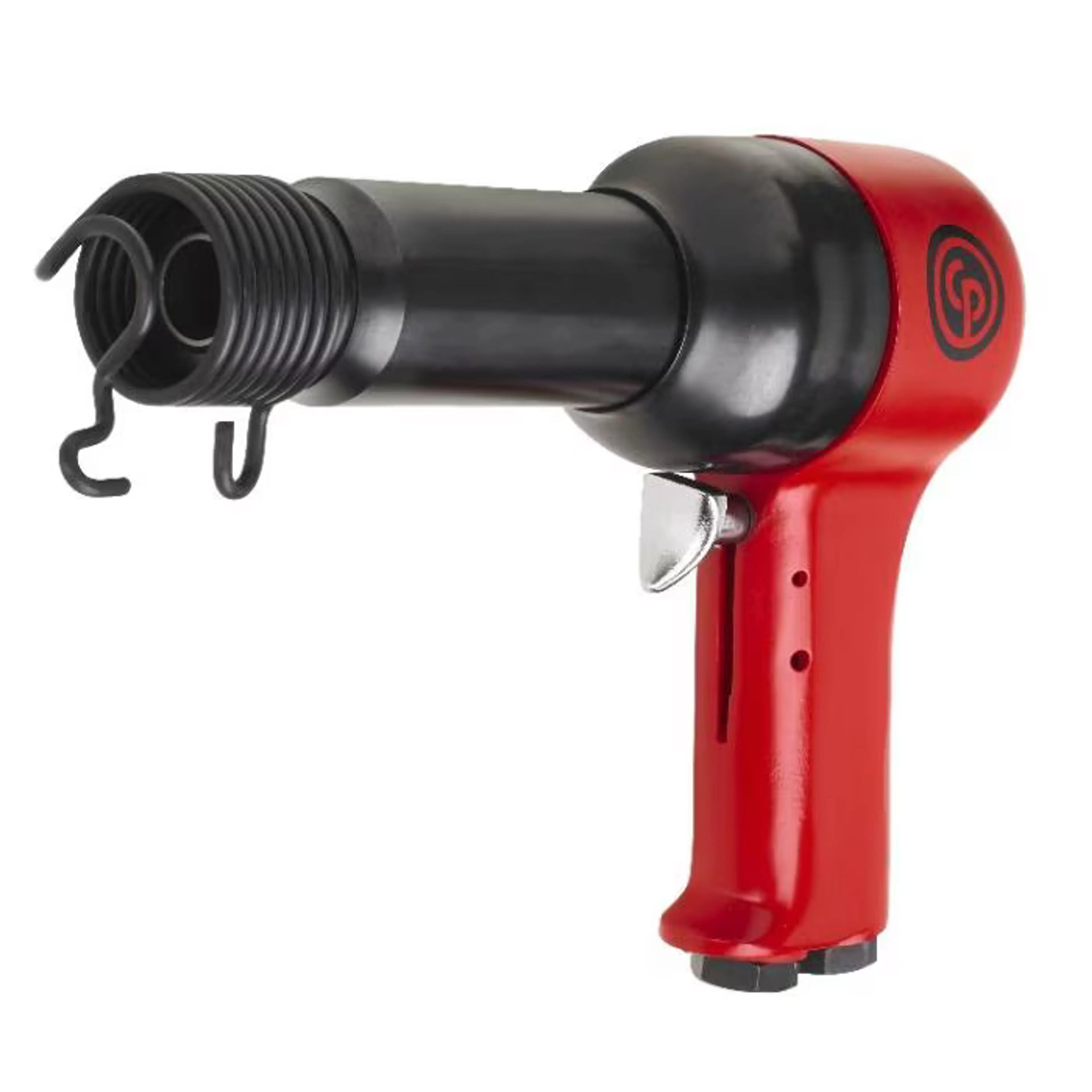

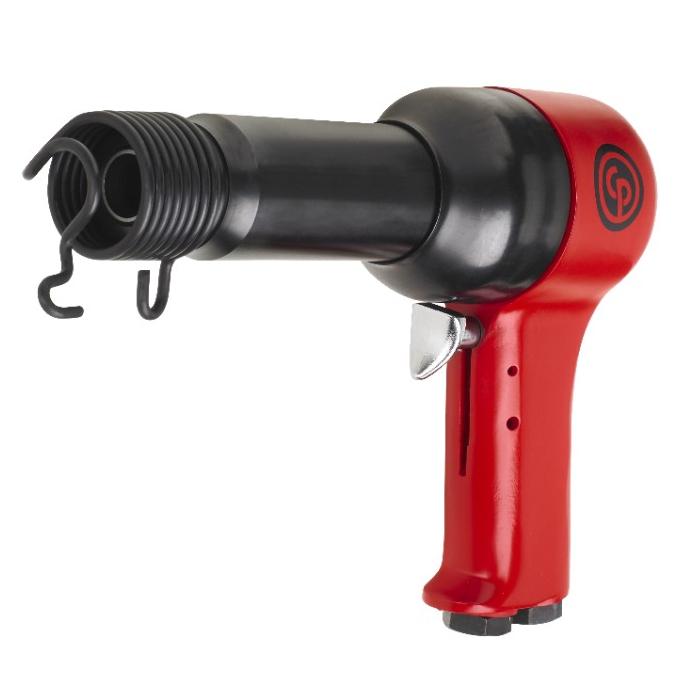

CP4289 | Rivet Hammer, 9X, 0.498 in. shank, 900 bpm
Aerospace riveting solution from Chicago Pneumatic
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP42 Series Rivet Hammers and Squeezers Brochure (PDF)Open
- PDFChicago Pneumatic CP42 Series Rivet Hammers Operators Manual (PDF)Open
- PDFChicago Pneumatic CP4285 CP4287 CP4289 Rivet Hammer Parts Breakdown (PDF)Open
- PDFChicago Pneumatic Hammers and Scalers Safety Information (PDF)Open
6151740650 | CP4289 | Rivet Hammer, 9X, 0.498 in. shank, 900 bpmCP4289
Price on request
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Chicago Pneumatic Rivet Hammer, 9X, 0.498 in. shank, 900 bpm
Rivet Hammer, 9X, 0.498 in. shank, 900 bpm, model# CP4289 available to order online. Do you see this Chicago Pneumatic Rivet Hammer available elsewhere for a lower price? Contact Customer Service to price match!
Benefits
- Efficient and powerful
- Lightweight and comfortable to hold
- Excellent control with teasing trigger
Features:
- Designed for rivets up to 3/8"
- Delivered with chiesel retainer included in the box
- To be used with chiesel kit 6153609410
CP4289 by Chicago Pneumatic
The Aerospace riveting solution from Chicago Pneumatic! This Rivet Hammer has a 5/16, 11/32 and 3/8 in. rivet capacity.
| Technical Specifications | |
|---|---|
| Size | 5/16, 11/32, 3/8 in. |
| Model | CP4289 |
| Type | Rivet Hammer |
| Manufacturer | Chicago Pneumatic |
| SKU | 6151740650 |
| Stock Code | 2 |
| Shank | 0.498'' |
| Weight (lbs) | 5.51 |
| Bore Diameter (in) | 3/4 |
| Blows Per Minute (bpm) | 900 |
| Stroke Length (in) | 5 |
| Series | CP42 |
| Air Inlet NPT (in) | 1/4 |
| MPN | CP4289 |
| Features & Benefits | |
| Efficient and powerful | |
| Lightweight and comfortable to hold | |
| Excellent control with teasing trigger | |
| Designed for rivets up to 3/8" | |
