Chicago Pneumatic6151922622

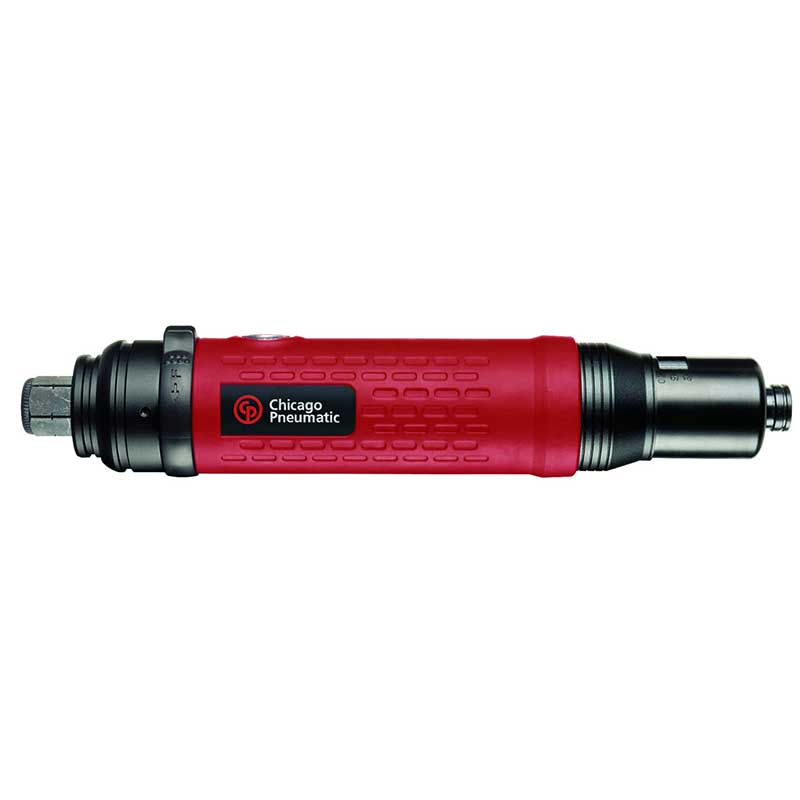

CP2622 | 1/4 in. 4.5 Nm Straight Air Screwdriver, 1700 rpm, Shut Off clutch
Chicago Pneumatic Shut-Off Clutch Screwdrivers are rigorously engineered to meet your demands for productivity, accuracy, and durability for the more demanding applications.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP2622 1/4 in. 4.5 Nm Straight Air Screwdriver Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP2622 1/4 in. 4.5 Nm Straight Air Screwdriver Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Screwdriver and Air Nutrunner Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP2622 1/4 in. 4.5 Nm Straight Air Screwdriver CE Certificate (PDF)Open
6151922622 | CP2622 | 1/4 in. 4.5 Nm Straight Air Screwdriver, 1700 rpm, Shut Off clutchCP2622
Price on request
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CA149661CA149661 | Air Tool Oil, 0.12L | 1 | View details | |
 P089507P089507 | Air Tool Oil, 1 Gallon | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1/4 in. 4.5 Nm Straight Air Screwdriver, 1700 rpm, Shut Off clutch
CP2622
CP2622, 1/4 in. 4.5 Nm Straight Air Screwdriver, 1700 rpm, Shut Off clutch by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. 4.5 Nm Straight Air Screwdriver at a lower price? Call or email and we'll match the price!
Benefits
- Excellent for moderate to intensive assembly line
- Productivity thanks to high speed
- Easy to operate thanks to ergonomics features
- Excellent accuracy for versatile applications
Features
- Automatic Shut-off clutch screwdriver
- Straight Push-to-start operation
- One-hand reverse button
- Keyless Torque setting adjustment
- Color rings for identification
| Technical Specifications | |
|---|---|
| Max torque in forward | 4.5 Nm |
| Min torque in forward | 0.5 Nm |
| Torque Control System | Shut-off-pneumatic valve |
| Adjustment | Rotative ring |
| Body | Steel |
| Clutch housing | Steel |
| Clutch Type | Ball clutch |
| Handle type | Straight handle |
| Main Material type | Aluminium, Composite over-sleeve |
| Output drive size (in) | 1/4 |
| Output drive type | Hex |
| Output retainer type | Quick change |
| Reversible | Yes |
| Starting system | Push start |
| Free Speed | 1700 rpm |
| Air consumption at free speed | 13 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Length (L) | 232 mm |
| Weight | 0.8 kg |
| Sound Power | 86 dB(A) |
| Sound Pressure | 75 dB(A) |
| Vibration (m/s²) | <2.5 |
| MPN | CP2622 |
| Features & Benefits | |
| Compact & comfortable for production operations | |
| Reliable & Accurate for various fastenings | |
| Excellent for intensive & precise applications | |
