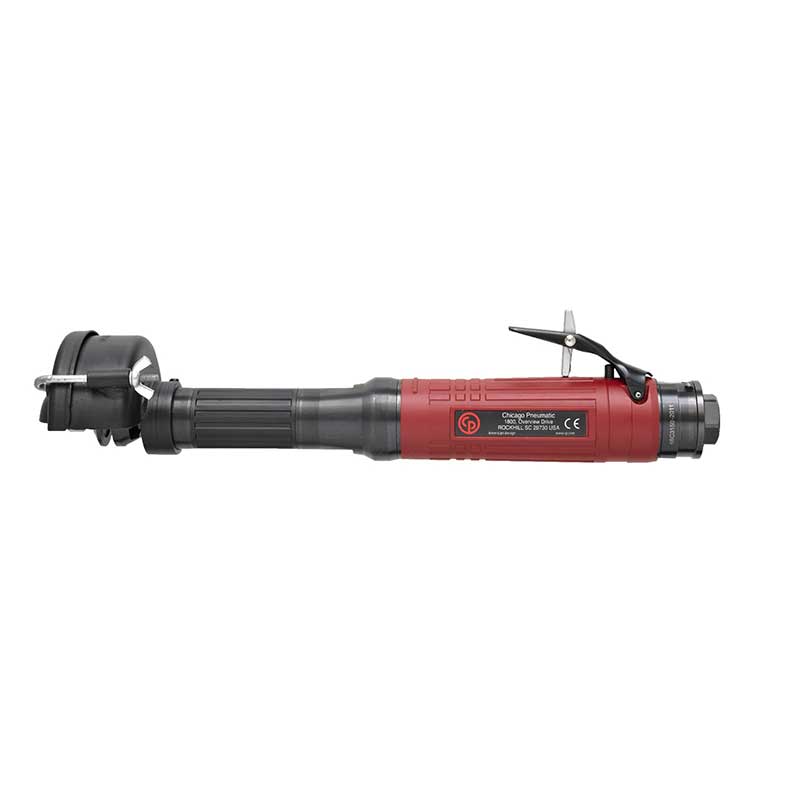

CP3119-18ES3 | 3 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust
This CP3119 Straight Grinder has a 1.2 hp motor with speeds up to 18,000 rpm.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3119-18ES3 3 in. Extended Die Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3119-18ES3 3 in. Extended Die Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3119-18ES3 3 in. Extended Die Grinder CE Certificate (PDF)Open
6151606060 | CP3119-18ES3 | 3 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaustCP3119-18ES3
Price on request
Details
Product information
Overview
Chicago Pneumatic 3 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust
CP3119-18ES3
CP3119-18ES3, 3 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial straight wheel grinder
- High productivity
- Highest durability in demanding applications with up to 2000 hrs maintenance intervals
Features
- Steel housing
- Insulating composite over-housing
- Extended body with rubber grip
- Streamlined safety lever
- 3" (80 mm) wheel capacity
- Extended body with rubber grip
- 1.2 hp (900 W) governed motor
- 18,000 rpm free speed
| Technical Specifications | |
|---|---|
| Autobalancer | No |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 3/8-24 UNF |
| Rotative guard type | Band |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Wheel/Disc diameter (in) | 3 |
| Wheel/Disc diameter (mm) | 75 |
| Wheel thickness (in) | 1/2 |
| Wheel thickness (mm) | 13 |
| Max power | 900 W |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Air consumption at load | 16 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Free Speed | 18000 rpm |
| Air consumption at free speed | 7 l/s |
| Overspeed shut-off | No |
| Length (L) | 338 mm |
| Weight | 1.7 kg |
| Sound Power | 88 dB(A) |
| Sound Pressure | 77 dB(A) |
| Uncertainty vibration-K | 3.1 m/s² |
| Vibration | 5.3 m/s² |
| MPN | CP3119-18ES3 |
| Features & Benefits | |
| Industrial Straight Wheel Grinder | |
| Lightweight design | |
| Excellent durability | |
