Chicago Pneumatic6151580280

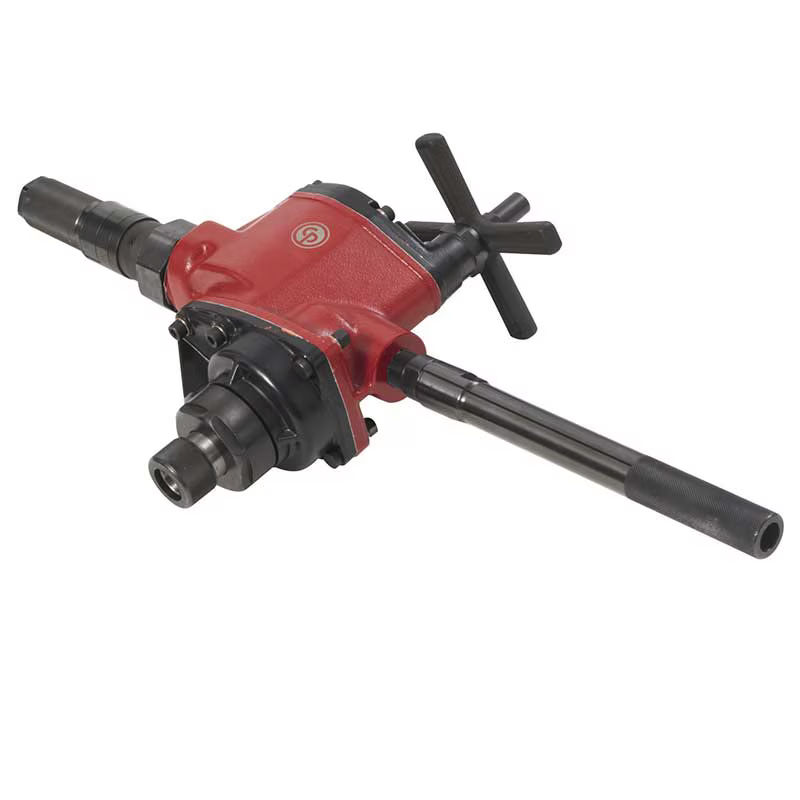

CP1820R22 | 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
$3,033.29List $3,791.62
Save $758.33Total$3,033.29Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
- PDFChicago Pneumatic CP1820R22 7/8 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1820R22 7/8 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1820R22 7/8 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580280 | CP1820R22 | 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stallCP1820R22
Total$3,033.29
1
Details
Product information
Overview
Chicago Pneumatic 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall
CP1820R22
CP1820R22, 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 7/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Super Industrial drills designed for intensive duty and high durability with precision
- Ideal for drilling, reaming & tapping of mild steel, cast iron
Features
- 7/8" (22 mm) reversible heavy duty drill, 480rpm of free speed
- Powerfull with 1.2 hp (890 W) motor
- Morse Taper No.2 drill socket
- Good for drilling up to 7/8", reaming & tapping up to 3/4"
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 7/8 |
| Chuck max capacity (mm) | 22 |
| Chuck type | Morse taper 2 |
| Handle type | T-handle |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Self return rolling throttle |
| Sound Power | 109 dB(A) |
| Sound Pressure | 98 dB(A) |
| Uncertainty vibration-K | 1.2 m/s² |
| Air consumption at load | 20 l/s |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 890 W |
| Stall torque | 78.4 Nm |
| Free Speed | 480 rpm |
| Air consumption at free speed | 0 l/s |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 282 mm |
| Weight | 7.3 kg |
| MPN | CP1820R22 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
