Chicago Pneumatic6151580290

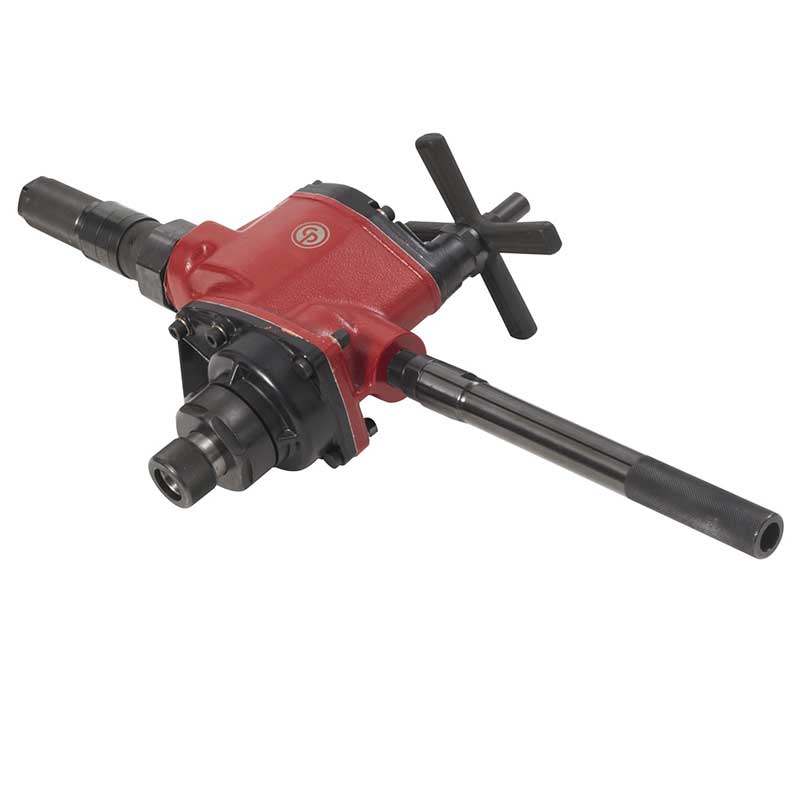

CP1820R32 | 1-1/4 in. Pneumatic Air Drill, reversible, 2.8 hp, 380 rpm, 144.6 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
$4,431.80List $5,539.76
Save $1,107.96Total$4,431.80Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
- PDFChicago Pneumatic CP1820R32 1-1/4 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1820R32 1-1/4 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1820R32 1-1/4 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580290 | CP1820R32 | 1-1/4 in. Pneumatic Air Drill, reversible, 2.8 hp, 380 rpm, 144.6 ft lb stallCP1820R32
Total$4,431.80
1
Details
Product information
Overview
Chicago Pneumatic 1-1/4 in. Pneumatic Air Drill, reversible, 2.8 hp, 380 rpm, 144.6 ft lb stall
CP1820R32
CP1820R32, 1-1/4 in. Pneumatic Air Drill, reversible, 2.8 hp, 380 rpm, 144.6 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1-1/4 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Designed for super-intensive duty and high durability with precision
- Ideal for drilling, reaming, tapping of mild steel, cast iron, forged steel
Features
- 1-1/4" (32 mm) reversible heavy duty drill, 380 rpm of free speed
- Powerful 2.8 hp (2,100 W) motor
- Morse Taper No.3 drill socket
- Good for drilling up to 1-1/4" (32 mm), reaming & tapping up to 1" (25 mm)
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Model | CP1820R32 |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 353 |
| Free Speed (RPM) | 380 |
| SKU | 6151580290 |
| Stock Code | 2 |
| Style | T-Handle |
| Max Torque (Ft Lb) | 144.6 |
| Weight (lbs) | 31.9 |
| Handle Type | T-Handle |
| Stall Torque (ft lb) | 144.6 |
| Series | Low Speed |
| Spindle | No. 3 Morse Taper |
| Stall Torque (in lb) | 1735.2 |
| Air Inlet NPT (in) | 1/2 |
| Chuck Capacity (in) | 1-1/4 |
| Rated Power (hp) | 2.8 |
| Reversible | Yes |
| Air Consp. @ Free Speed (L/s) | 53 |
| MPN | CP1820R32 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
