Chicago Pneumatic6151590020

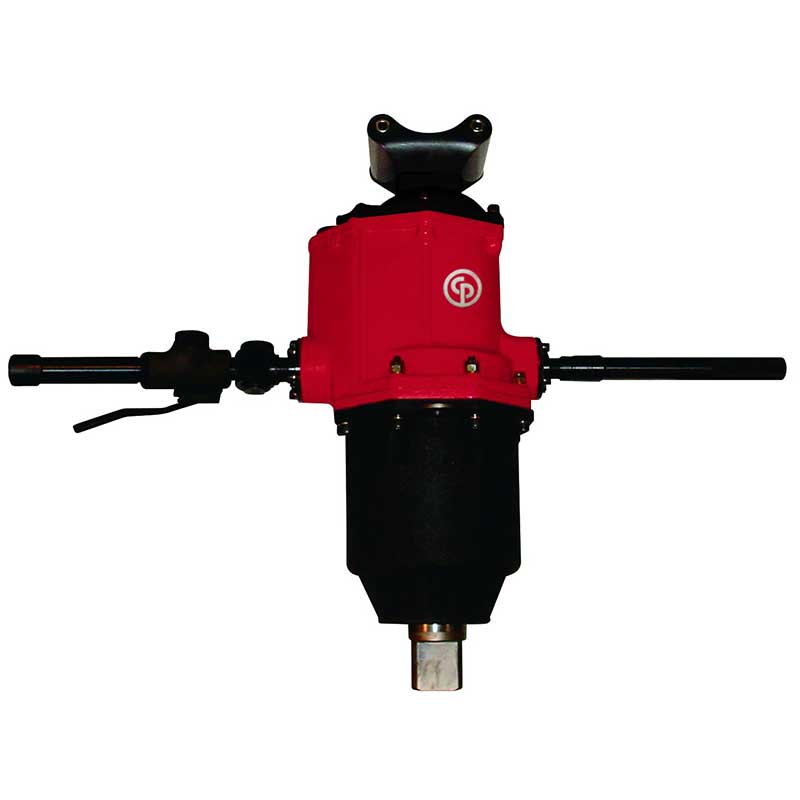

CP6240-T120 | 2-1/2 in. 18440 ft lb Air Impact Wrench, T-Handle, 3000 rpm
Powerful, Durable and comfortable 2-1/2'' square T-Handle Impact Wrench
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP6240-T120 2-1/2 in. 18440 ft lb Air Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP6240-T120 2-1/2 in. 18440 ft lb Air Impact Wrench Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP6240-T120 2-1/2 in. 18440 ft lb Air Impact Wrench CE Certificate (PDF)Open
6151590020 | CP6240-T120 | 2-1/2 in. 18440 ft lb Air Impact Wrench, T-Handle, 3000 rpmCP6240-T120
Price on request
Details
Product information
Overview
Chicago Pneumatic 2-1/2 in. 18440 ft lb Air Impact Wrench, T-Handle, 3000 rpm
CP6240-T120
CP6240-T120, 2-1/2 in. 18440 ft lb Air Impact Wrench, T-Handle, 3000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 2-1/2 in. 18440 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Incredible breaking torque (up to M72) for Industrial Maintenance & Production applications
- Extreme durability: Resistant parts, reliable mechanisms & robust housing
- Operator comfort: smooth control, low levels of vibration & limited noise
- Compact 3-parts construction for easy maintenance
Features
- 2-1/2" Super Duty T-Handle
- Reliable Double Rocking Dog clutch
- Durable aluminum body & clutch housing
- 6-positions regulator, progressive trigger & Easy reverse
- Removable dead handle and comfortable Top handles
- Suspension hole for easy hoist/balancer hooking
| Technical Specifications | |
|---|---|
| Max working torque fwd | 12400 Nm |
| Max torque reverse | 25000 Nm |
| Min working torque fwd | 5.1 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.75 in |
| Min hose diam (5 m hose length) | 19 mm |
| Sound Power | 118 dB(A) |
| Sound Pressure | 107 dB(A) |
| Uncertainty vibration-K | 1.5 m/s² |
| Vibration (m/s²) | 4.5 |
| Free Speed | 3000 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 610 mm |
| Power weight ratio | 410 Nm/kg |
| Side to Center | 90 mm |
| Weight | 60 kg |
| Blow per minute | 800 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | T-handle |
| Impact mecanism | Double rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 2-1/2 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Lever |
| MPN | CP6240-T120 |
| Features & Benefits | |
| Incredible breaking torque for industrial maintenance and production | |
| Resistant parts, reliable mechanisms, robust housing | |
| Resistant parts | |
| reliable mechanisms | |
| robust housing | |
