Chicago PneumaticT021959
CP9356 | Square Shank Weld Flux Chipping Hammer, 1/2 in, 4600 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP9356 Weld Flux Chipping Hammer Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP9356 Weld Flux Chipping Hammer Operator Manual (PDF)Open
- PDFChicago Pneumatic CP9356 Weld Flux Chipping Hammer CE Certificate (PDF)Open
- PDFChicago Pneumatic Hammers and Scalers Safety Instructions (PDF)Open
T021959 | CP9356 | Square Shank Weld Flux Chipping Hammer, 1/2 in, 4600 bpmCP9356
Price on request
Details
Product information
Overview

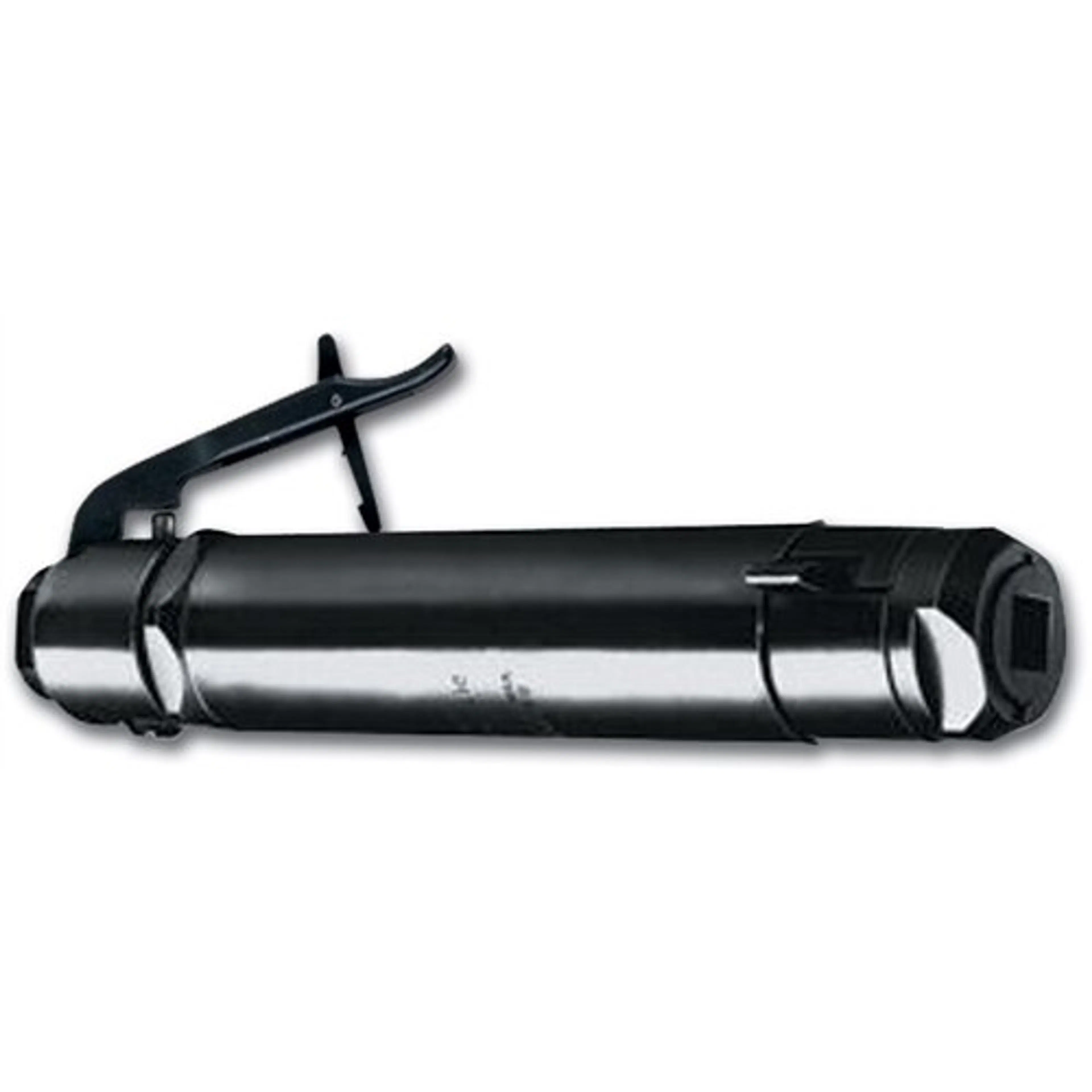

Chicago Pneumatic Square Shank Weld Flux Chipping Hammer, 1/2 in, 4600 bpm
CP9356
CP9356, Square Shank Weld Flux Chipping Hammer, 1/2 in, 4600 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Weld Flux Chipping Hammer at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Sturdy and simple design for heavy and wide applications
- Convertible to needle scaler
- Ideal tool for weld-flux removal or de-burring
Features
- Weld-flux chipper for industrial application
- Versatile design with good durability
- 1/2" shank
| Technical Specifications | |
|---|---|
| Blow per minute | 4600 |
| Chisel shank | Square |
| Chisel shank diameter (in) | 1/2 |
| Chisel shank diameter (mm) | 12.7 |
| Energy | 5.5 J |
| Main Material type | Steel |
| Starting system | Lever |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 8 m/s² |
| Vibration | 21.3 m/s² |
| Bore diameter | 25.4 mm |
| Length (L) | 238 mm |
| Stroke | 28.6 mm |
| Weight | 1.7 kg |
| Air consumption at load | 4.8 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 13 mm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| MPN | CP9356 |
