Chicago Pneumatic6151602030

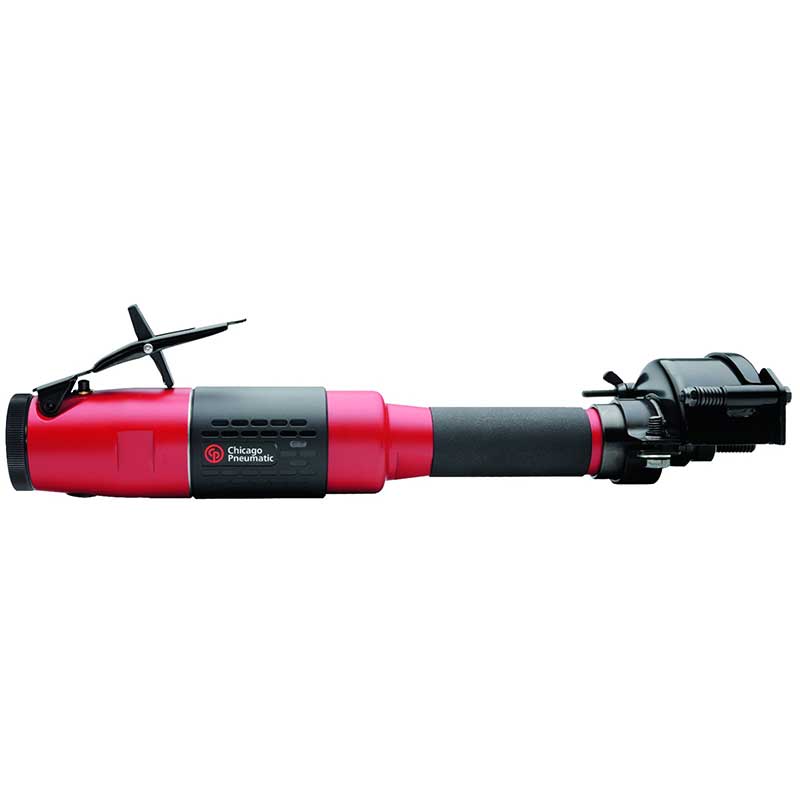

CP3451-18SE3 | 3 in. Straight Wheel Grinder, 18000 rpm, 1 hp, Rear exhaust
This CP3451 Straight Grinder has a 1 hp motor with speeds up to 18,000 rpm. Superior power-to-weight ratio
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3451-18SE3 3 in. Straight Wheel Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3451-18SE3 3 in. Straight Wheel Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3451-18SE3 3 in. Straight Wheel Grinder CE Certificate (PDF)Open
6151602030 | CP3451-18SE3 | 3 in. Straight Wheel Grinder, 18000 rpm, 1 hp, Rear exhaustCP3451-18SE3
Price on request
Details
Product information
Overview
Chicago Pneumatic 3 in. Straight Wheel Grinder, 18000 rpm, 1 hp, Rear exhaust
CP3451-18SE3
CP3451-18SE3, 3 in. Straight Wheel Grinder, 18000 rpm, 1 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3 in. Straight Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial straight wheel grinder
- Industrial grade durability with up to a 1,000 hour maintenance interval
- Light body
Features
- Aluminum body
- Insulating composite cover
- Rear exhaust
- 3" (75 mm) wheel capacity
- 1 hp (750 W) high torque motor
- 18,000 rpm free speed
| Technical Specifications | |
|---|---|
| Autobalancer | No |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 3/8-24 UNF |
| Rotative guard type | Band |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Wheel/Disc diameter (in) | 3 |
| Wheel/Disc diameter (mm) | 75 |
| Wheel thickness (in) | 1/2 |
| Wheel thickness (mm) | 13 |
| Max power | 750 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Air consumption at load | 17 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Free Speed | 18000 rpm |
| Air consumption at free speed | 18 l/s |
| Overspeed shut-off | No |
| Length (L) | 351 mm |
| Weight | 1.6 kg |
| Sound Power | 94.8 dB(A) |
| Sound Pressure | 815 dB(A) |
| Uncertainty vibration-K | 57 m/s² |
| Vibration | 112 m/s² |
| MPN | CP3451-18SE3 |
| Features & Benefits | |
| Industrial Straight Wheel Grinder | |
| Lightweight design | |
| Excellent durability | |
