Chicago Pneumatic8941071600

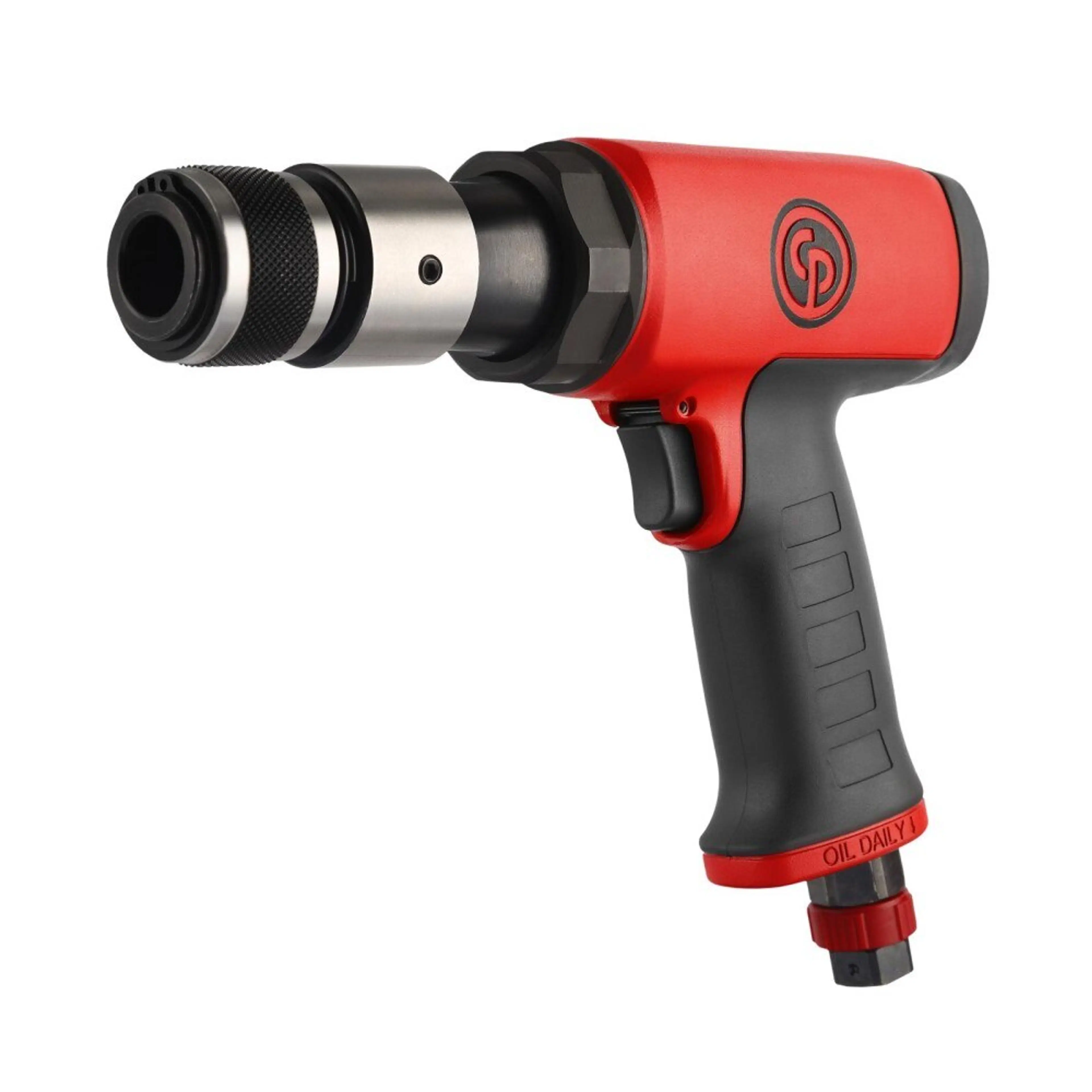

CP7160 | Low vibration hammer, 3500 bpm, round shank
Lightweight & Durable. Low vibrations
$231.31List $385.51
Save $154.20Total$231.31Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
8941071600 | CP7160 | Low vibration hammer, 3500 bpm, round shankCP7160
Total$231.31
1
Details
Product information
| Technical Specifications | |
|---|---|
| Bore diameter | 19 mm |
| Height (H) | 194 mm |
| Length (L) | 191 mm |
| Width (W) | 58 mm |
| Stroke | 67 mm |
| Weight | 1.88 kg |
| Air consumption at load | 8.7 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 3500 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.401 |
| Chisel shank diameter (mm) | 10.2 |
| Energy | 8 J |
| Main Material type | Composite, Steel |
| Max rivet size (in) | 1/4 |
| Max rivet size (mm) | 6.4 |
| Max rivet size steel (in) | 3/16 |
| Max rivet size steel (mm) | 4.8 |
| Starting system | Trigger |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Sound Power | 109.4 dB(A) |
| Sound Pressure | 98.4 dB(A) |
| Uncertainty vibration-K | 1.4 m/s² |
| Vibration | 4.4 m/s² |
| MPN | CP7160 |
| Features & Benefits | |
| 8 joule of power | |
| Air cushion present in the tool reducing vibration to 4.37 m/s² | |
| Rubber grip at the back of the tool & Well balanced tool | |
| 8 joule of power,Air cushion present in the tool reducing vibration to 4.37 m/s²,Rubber grip at the back of the tool & Well balanced tool | |
