6 Axis, 35 kg Collaborative Robot, 1813 mm reach
FANUC's strongest collaborative robot. Capable of lifting 35 kg. This Robot ideally suited to a whole range of manual processes that people have traditionally had to do alone.
A specialist replies within one business day.
Details
Product information
Overview

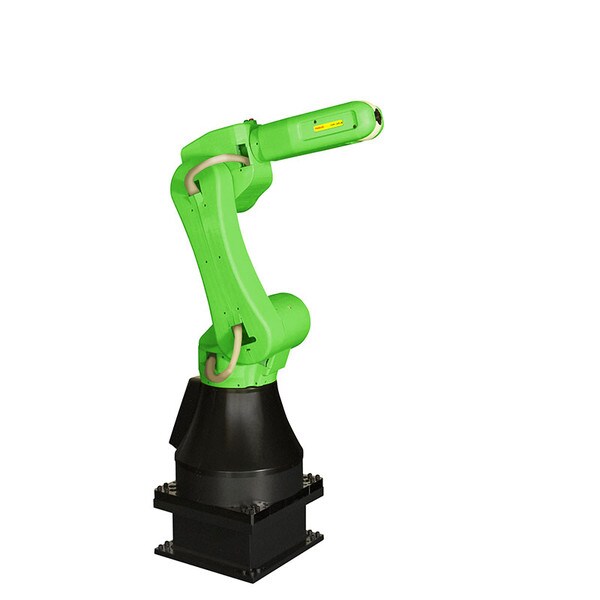

FANUC CR-35iA
6 Axis, 35 kg Collaborative Robot, 1813 mm reach
The FANUC CR Series Collaborative Robots can work without safety fences.
Features:
- Collaborative Operations
Operates in close proximity to humans in a shared worksapce without safety fences.
works in cooperation with human operator (heavy workpiece transfer, parts assembly)
- Safety Function
Stops safely when it comes in contact with a human operator.
Safe and gentle green cover reduces impact forces and pinch points by providing a soft barrier between a human operator and the robot arm.
- Intelligence and High Reliability
Latest intelligent functions such as iRVision (Integrated Vision) are available.
The CR series are designed and built wityh the precision and reliability of all FANUC robots.
| Technical Specifications | |
|---|---|
| Application | Assembly, Pick/Pack/Palletizing, Material Removal, Machine Tending, Load Transfer, Dispensing |
| Model | CR-35iA |
| Type | Articulated |
| Manufacturer | FANUC |
| SKU | CR-35iA |
| Reach | 1813 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.08 mm |
| Payload | 35 kg |
| Weight (kg) | 990 |
| MPN | CR-35iA |
| Features & Benefits | |
| Built-in anti-trap protection and soft rubber skin to keep operators safe | |
| Easy to program. New iHMI guides provide step by step guidance for setting up and creating programs, along with other wizards/tutorials | |
| Can be equipped with a Vision Sensor or a 3D Area Sensor, enabling location or to envision workpieces | |
| Built-in anti-trap protection and soft rubber skin to keep operators safe,Easy to program. New iHMI guides provide step by step guidance for setting up and creating programs, along with other wizards/tutorials,Can be equipped with a Vision Sensor or a 3D Area Sensor, enabling location or to envision workpieces | |
