6 Axis, 7 kg Collaborative Robot, 717 mm reach
Flexible and can work right by your side. This robot can handle light but tedious and repetitive, manual tasks that include different types of material handling.
A specialist replies within one business day.
Details
Product information
Overview

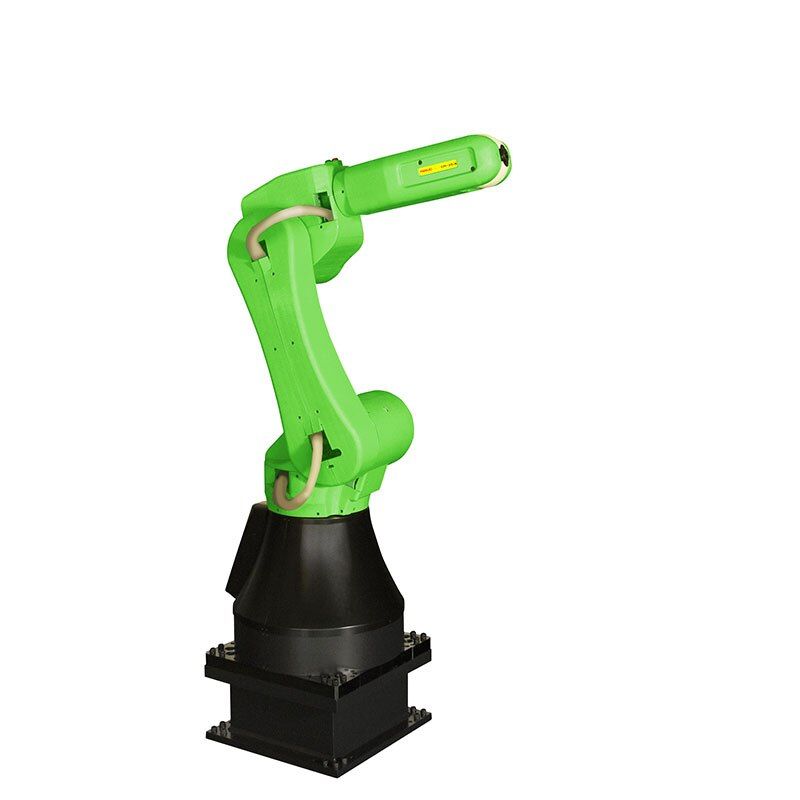

FANUC CR-7iA
6 Axis, 7 kg Collaborative Robot, 717 mm reach
The FANUC CR Series Collaborative Robots can work without safety fences.
Features:
- Collaborative Operations
Operates in close proximity to humans in a shared worksapce without safety fences.
works in cooperation with human operator (heavy workpiece transfer, parts assembly)
- Safety Function
Stops safely when it comes in contact with a human operator.
Safe and gentle green cover reduces impact forces and pinch points by providing a soft barrier between a human operator and the robot arm.
- Intelligence and High Reliability
Latest intelligent functions such as iRVision (Integrated Vision) are available.
The CR series are designed and built wityh the precision and reliability of all FANUC robots.
| Technical Specifications | |
|---|---|
| Application | Assembly, Pick/Pack/Palletizing, Material Removal, Machine Tending, Load Transfer, Dispensing |
| Model | CR-7iA |
| Type | Articulated |
| Manufacturer | FANUC |
| SKU | CR-7iA |
| Reach | 717 mm |
| Installation | Floor, upside-down, wall and angle mount |
| No. of Axis | 6 |
| Repeatability | 0.03 mm |
| Payload | 7 kg |
| Weight (kg) | 53 |
| MPN | CR-7iA |
| Features & Benefits | |
| Ideal for small parts assembly, to highly repetitive tasks such as picking and placing items from one place to another. | |
| Sensor technology means no fencing is required | |
| Can be equipped with a Vision Sensor or a 3D Area Sensor, enabling location or to envision workpieces | |
| Can be equipped with a Vision Sensor or a 3D Area Sensor | |
| enabling location or to envision workpieces | |
