Desoldering Station w/ Pneumatic Pump, 100V, 15 slpm
CV is a microdesoldering station using compressed air for precision electronic applications.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 C360004C360004 | Microdesoldering Tip Ø1.2$15.00 | $15.00 | 10 | View details |
 CL6210CL6210 | Brass Wool$7.00 | $7.00 | 1 | View details |
 DS360DS360-A | DS360 | Micro Desoldering Iron$726.00 | $726.00 | 1 | View details |

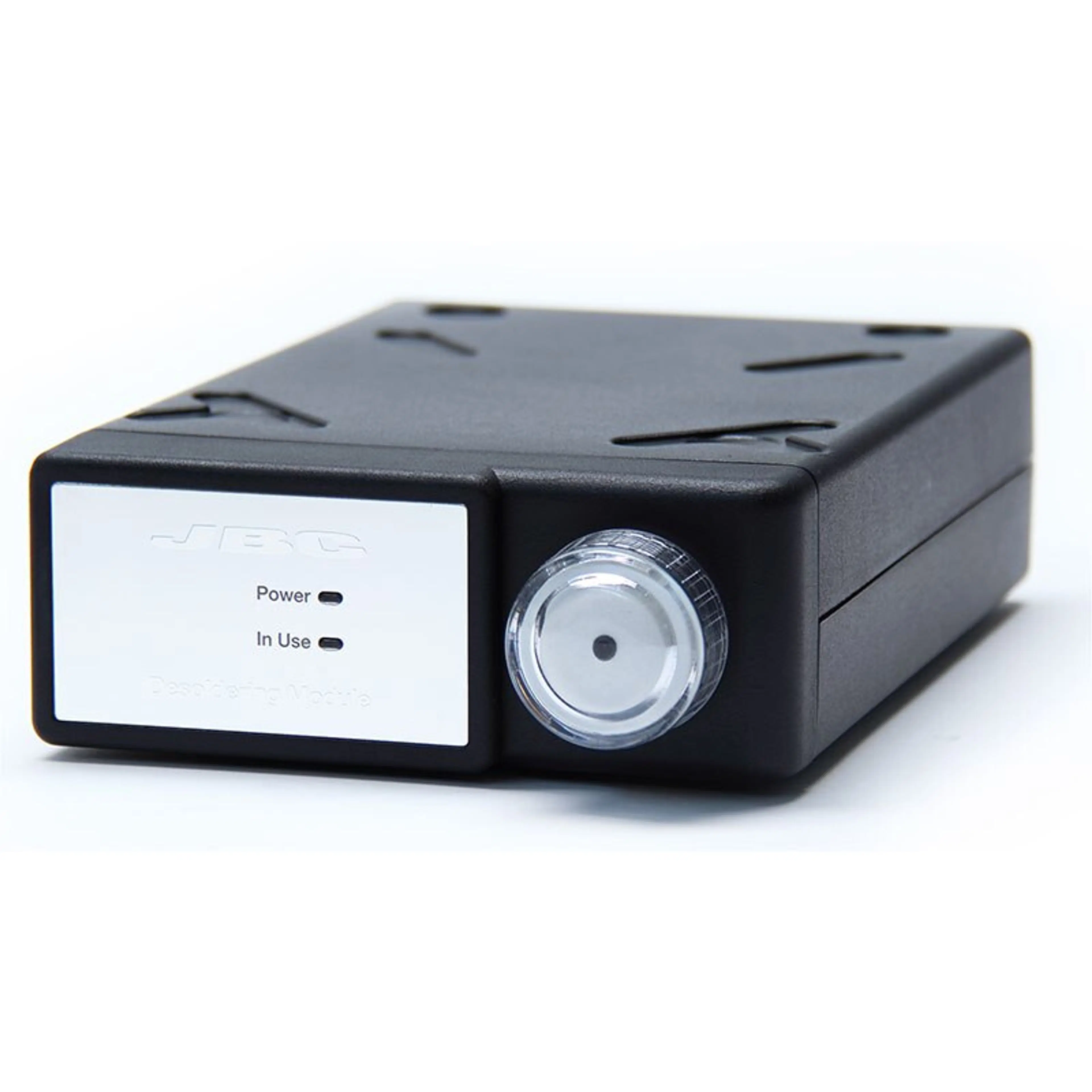

 MV-AMV-A | Pneumatic Desoldering Module$800.00 | $800.00 | 1 | View details |
Details
Product information
Overview
JBC CV-9E
Desoldering Station w/ Pneumatic Pump, 100V, 15 slpm
CV is a microdesoldering station using compressed air for precision electronic applications.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the process.
It incorporates a USB connector (type B) to update station software and create graphs.
Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.
CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron and C360 cartridges.
| Technical Specifications | |
|---|---|
| Temperature Range - fahrenheit | 356 - 840 |
| Vacuum range | 90% / 680 mmHg / 26.8 inHg |
| Permissible ambient temperature - celsius | 10 - 40 |
| Voltage | 100V;"Input Fuse=2A |
| Tip to ground resistance | <2 ohms |
| Dimensions - | 150 x 175 x 145 |
| Weight - lbs | 7.71 |
| ESD Compliant | Yes |
| MPN | CV-9E |
| Features & Benefits | |
| Using the menu, you can personalize over 20 parameters to help manage the process. | |
| Complete cleaning system with an antisplash membrane to keep the work area clean. | |
| JBC exclusive heating system and the intelligent sleep & hibernation feature | |
| Integrated wiper to remove excess solder from the tip | |
