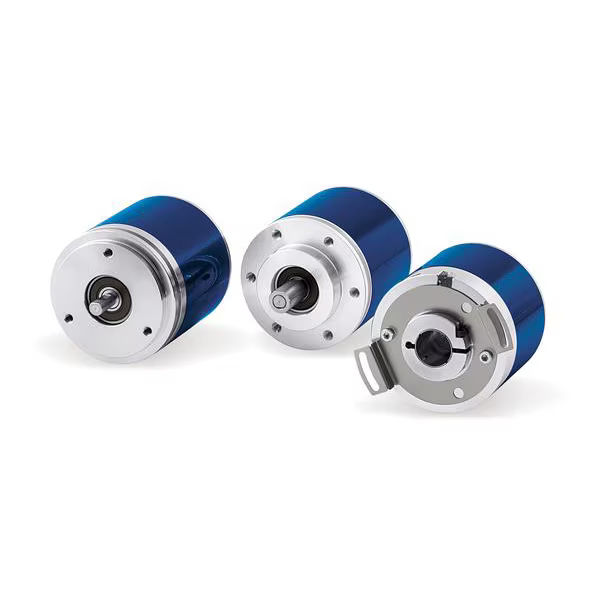

AMT58 Series Absolute Rotary Encoders
AMT58 is the absolute encoder multi-turn standard industrial line, recommended for its price/performance ratio, very high resolution and accuracy for advanced applications.
Models Available
24 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
AMT58 is the absolute encoder multi-turn standard industrial line, recommended for its price/performance ratio, very high resolution and accuracy for advanced applications. AMT58 is also available with the most common modular Fieldbus interfaces, or even Ethernet based integrated Fieldbus interfaces, offering the highest resolution and accuracy for precision motion control and length measurement.
The typical applications for this encoder can be found in motion control, automated machinery, length measurement and positioning.
Features:
- Aluminium anticorodal metal case Ø58 mm
- Solid shaft Ø6 or 10 mm, hollow shaft Ø15 mm
- Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm
- Resolution 13x12 bit (8192 x 4096) up to 16x14 bit (65536 x 16384)
- Gray SSI® tree output signal
- Modular Fieldbus interface models: CANopen, Devicenet, Profibus
- Integrated Fieldbus interface models: CANopen, Devicenet, EtherCAT, Profibus or Profinet
Applications:
- Motion control
- Automated machinery
- Length measurement and positioning
| Features & Benefits | |
|---|---|
| Integrated Fieldbus interface models: CANopen, Devicenet, EtherCAT, Profibus or Profinet | |
| Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm | |
| Resolution 13x12 bit (8192 x 4096) up to 16x14 bit (65536 x 16384) | |
| From $276 | |
| Integrated Fieldbus interface models: CANopen, Devicenet, EtherCAT, Profibus or Profinet,Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm,Resolution 13x12 bit (8192 x 4096) up to 16x14 bit (65536 x 16384) |
