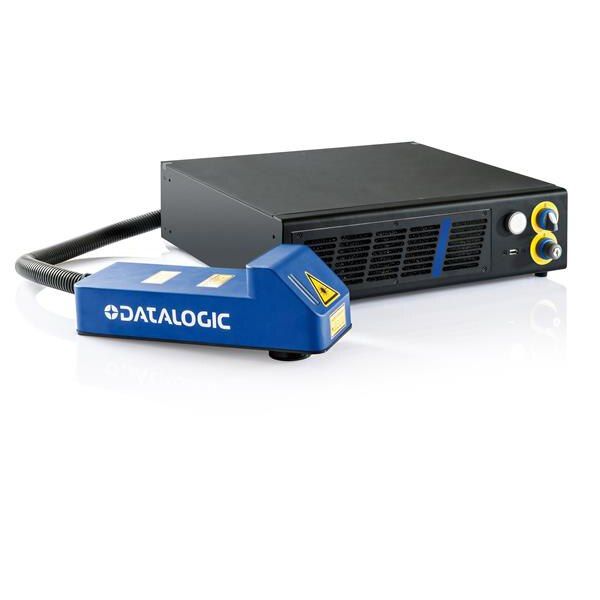

AREX Series Fiber Laser Markers

AREX family of ultra compact Fiber Laser, represents a reference standard in the permanent marking arena since many years.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Documents4 files

Models Available

16 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductNominal PowerModulationPeak power (max)PriceQty
AREX 1100-1042 Fiber IR System985180023 | AREX 1100-1042 Fiber IR System | AREX 10W IR Fiber w/out F-Lens$33,152.03> 10W20 ÷ 100 kHz5 kW$33,152.031View details
AREX 1200-1042 Fiber IR System985180024 | AREX 1200-1042 Fiber IR System | AREX 20W IR Fiber w/out F-Lens$37,631.99> 20W20 ÷ 100 kHz10 kW$37,631.991View details
AREX 1100-1642 Fiber IR System985180028 | AREX 1100-1642 Fiber IR System | AREX 10W IR Fiber F254S-M39 lens 140mmx140mm$32,508.00> 10W20 ÷ 100 kHz5 kW$32,508.001View details
AREX 1200-1642 Fiber IR System985180030 | AREX 1200-1642 Fiber IR System | AREX 20W IR Fiber F254S-M39 lens 140mmx140mm$36,828.00> 20W20 ÷ 100 kHz10 kW$36,828.001View details
AREX 1200-1742 Fiber IR System985180051 | AREX 1200-1742 Fiber IR System | AREX 20W IR Fiber F254L-M85 lens 180mmx180mm$38,448.00> 20W20 ÷ 100 kHz10 kW$38,448.001View details
AREX 1300-1742 Fiber IR System985180052 | AREX 1300-1742 Fiber IR System | AREX 30W IR Fiber F254L-M85 lens 180mmx180mm$49,572.0030W30 ÷ 200 kHz11 kW$49,572.001View details
AREX 1300-1A42 Fiber IR System985180053 | AREX 1300-1A42 Fiber IR System | AREX 30W IR Fiber F330L-M85 lens 220mmx220mm$49,896.0030W30 ÷ 200 kHz11 kW$49,896.001View details
AREX 1500-1742 Fiber IR System985180055 | AREX 1500-1742 Fiber IR System | AREX 50W IR Fiber F254L-M85 lens 180mmx180mm$60,804.0050W50 ÷ 200 kHz10 kW$60,804.001View details
AREX 1500-1A42 Fiber IR System985180056 | AREX 1500-1A42 Fiber IR System | AREX 50W IR Fiber F330L-M85 lens 220mmx220mm$61,128.0050W50 ÷ 200 kHz10 kW$61,128.001View details
AREX 1100-1142 Fiber IR System985180058 | AREX 1100-1142 Fiber IR System | AREX 10W IR Fiber F100S-M39 lens 50mmx50mm$33,824.03> 10W20 ÷ 100 kHz5 kW$33,824.031View details
AREX 1200-1142 Fiber IR System985180059 | AREX 1200-1142 Fiber IR System | AREX 20W IR Fiber F100S-M39 lens 50mmx50mm$38,303.99> 20W20 ÷ 100 kHz10 kW$38,303.991View details
AREX 1200-1A42 Fiber IR System985180060 | AREX 1200-1A42 Fiber IR System | AREX 20W IR Fiber F330L-M85 lens 220mmx220mm$38,664.00> 20W20 ÷ 100 kHz10 kW$38,664.001View details
AREX 1200-1B42 Fiber IR System985180061 | AREX 1200-1B42 Fiber IR System | AREX 20W IR Fiber F420L-M85 lens 285mm x 285mm$38,988.00> 20W20 ÷ 100 kHz10 kW$38,988.001View details
AREX 1300-1442 Fiber IR System985180063 | AREX 1300-1442 Fiber IR System | AREX 30W IR Fiber F160L-M85 lens 110mm x 110mm$48,168.0030W30 ÷ 200 kHz11 kW$48,168.001View details
AREX 1500-1442 Fiber IR System985180064 | AREX 1500-1442 Fiber IR System | AREX 50W IR Fiber F160L-M85 lens 110mm x 110mm$59,292.0050W50 ÷ 200 kHz10 kW$59,292.001View details
AREX 1100-1742 Fiber IR System985180069 | AREX 1100-1742 Fiber IR System | AREX 10W IR Fiber F254L-M39 lens 180mmx180mm$34,128.00> 10W20 ÷ 100 kHz5 kW$34,128.001View details

Details

Product information

Overview

AREX family of ultra compact Fiber Laser, represents a reference standard in the permanent marking arena since many years.

With the smallest marking head footprint today offered on the market, AREX drastically simplifies design for system integrators, and makes mechanical installations extremely easy in all the applications: from stand alone marking stations to fully automated working center in production lines.

Thanks to the state-of- the-art fiber technology, AREX allows high speed marking on metal and plastic material increasing systems productivity.

Arex and Lighter 6 Suite allows OEMs and Machine builders to develop a complete, cost effective, Laser Marking Station, based on embedded hardware and software resources, (STAND ALONE mode) or to design an advanced Laser Marking Solutions able to control a complete machinery over a simple Ethernet connection with supervisor computer (MASTER-SLAVE mode).

Features & Benefits
Advanced Graphical Layout
Ethernet protocol for easy integration PLC and industrial environments
Local and Remote laser test & setup
From $25,371
