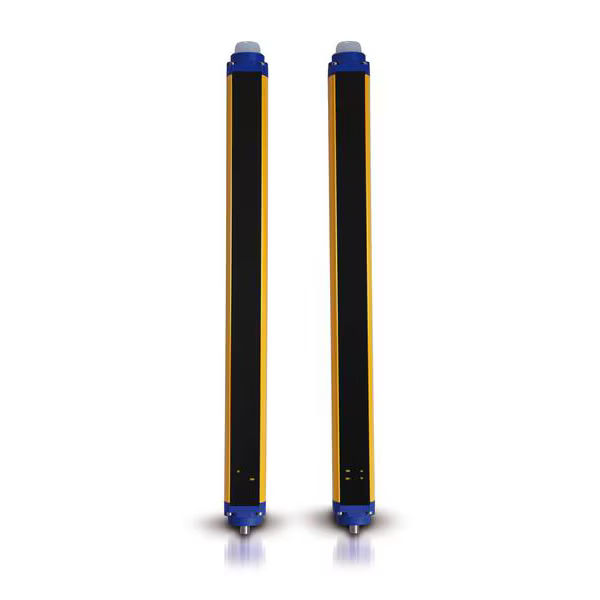

Big Base and Muting Series Light Curtains

SG BODY BIG (BASE and MUTING) safety light curtains, with sturdy housing and an innovative optical-electronic platform, ensures the high-level performance required in the material handling industry

SG BODY BIG BASE, with manual or automatic reset, EDM function and operating distance up to 60 m, is ideal to protect perimeters and openings in harsh environment, where a robust housing and high emission power is needed.

SG BODY BIG MUTING integrates T and L muting functions with all the advanced features, like anti-interference coding, edged or triggered override, and external muting enable signal.

Features:

• Big sturdy profile: 52x56 mm (2,08x2,24 in)
• 3 different types of mounting brackets (angled, top-bottom and rear)
• Simple and fast mounting, cabling and configuration
• User interface: 4 or 2 LEDs + 7 segment display
• Operating distance up to 60 m
• 2, 3, 4 beams with 500, 800, 900 and 1200mm controlled
• Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY BIG MUTING)
• Optional pre-assembled and pre-cabled retroreflective polarized or through-beam sensors (only SG BODY BIG MUTING)
• Advanced features: anti-interference coding, edged or triggered override, external muting enable signal
• LONG RANGE model with 40mm resolution for hand protection over long distance (60 m)

Applications:

• Automatic machines
• Robots
• Automatic assembling lines
• Palletizers and Depalletizers
• Automatic warehouses
• Protecting perimeter areas
