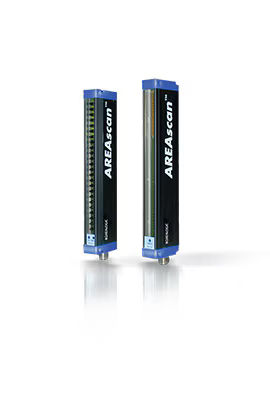

Datalogic DS1 Series Light Arrays image 1

Click the image to zoom

DS1 Series Light Arrays

The DS1 AREAscan™ series are compact multibeam light grids suitable for the detection and measurement of objects with different shapes and dimensions.

Models and pricing below

Documents4 files

Models Available

1 item

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Price	Qty
957701160957701160 \| 300 mm Measurement Light Curtain, Standard, 2m distance$676.49	$676.49	1	View details

Recommended Accessories

15 items

Add-on accessories that can be purchased alongside this product.

Product	Controlled Height	Minimum Detectable Object	Number of Rays	Price	Qty
957701120957701120 \| 100 mm Measurement Light Curtain, High Res, 2m distance$461.04	100 mm	5 mm	32	$461.04	1	View details
957701130957701130 \| 100 mm Measurement Light Curtain, Standard, 2m distance$422.11	100 mm	7 mm	16	$422.11	1	View details
957701140957701140 \| 150 mm Measurement Light Curtain, High Res, 2m distance$550.81	150 mm	5 mm	48	$550.81	1	View details
957701150957701150 \| 150 mm Measurement Light Curtain, Standard, 2m distance$491.31	150 mm	7 mm	—	$491.31	1	View details
957701170957701170 \| 100 mm Measurement Light Curtain, Standard, 0.8m distance$422.11	100 mm	7 mm	16	$422.11	1	View details
957701180957701180 \| 150 mm Measurement Light Curtain, Standard, 0.8m distance$491.31	150 mm	7 mm	24	$491.31	1	View details
957701190957701190 \| 300 mm Measurement Light Curtain, Standard, 0.8m distance$676.49	300 mm	7 mm	48	$676.49	1	View details
957701200957701200 \| 100 mm Measurement Light Curtain, High Res, 0.8m distance$461.04	100 mm	4 mm	32	$461.04	1	View details
957701210957701210 \| 150 mm Measurement Light Curtain, High Res, 0.8m distance$550.81	150 mm	4 mm	48	$550.81	1	View details
957701220957701220 \| 100 mm Measurement Light Curtain, Standard, 4m distance$422.11	100 mm	7 mm	16	$422.11	1	View details
957701230957701230 \| 150 mm Measurement Light Curtain, Standard, 4m distance$491.31	150 mm	7 mm	—	$491.31	1	View details
957701240957701240 \| 300 mm Measurement Light Curtain, Standard, 4m distance$676.49	300 mm	7 mm	48	$676.49	1	View details
957701250957701250 \| 100 mm Measurement Light Curtain, Standard, 2m distance, Adjustment trimmer$422.11	100 mm	7 mm	16	$422.11	1	View details
957701260957701260 \| 150 mm Measurement Light Curtain, Standard, 2m distance, Adjustment trimmer$491.31	150 mm	7 mm	24	$491.31	1	View details
957701270957701270 \| 300 mm Measurement Light Curtain, Standard, 2m distance, Adjustment trimmer$676.49	300 mm	7 mm	48	$676.49	1	View details

Overview

The DS1 AREAscan™ series are compact multibeam light grids suitable for the detection and measurement of objects with different shapes and dimensions. Different models are available with 100, 150 and 300 mm controlled height, 4 mm resolution and operating distance reaching 4 m. Versions with trimmer adjustment. The electronics is fully integrated and so no external drivers are required.

Applications:

Object dimension measurement
Shape or profile detection
Positioning, spacing, centering, stacking
Edge guiding
Object counting

Features & Benefits
100 to 300 mm controlled height
4 mm resolution and 1 ms response time
Operating distance up to 4 m
From $466
