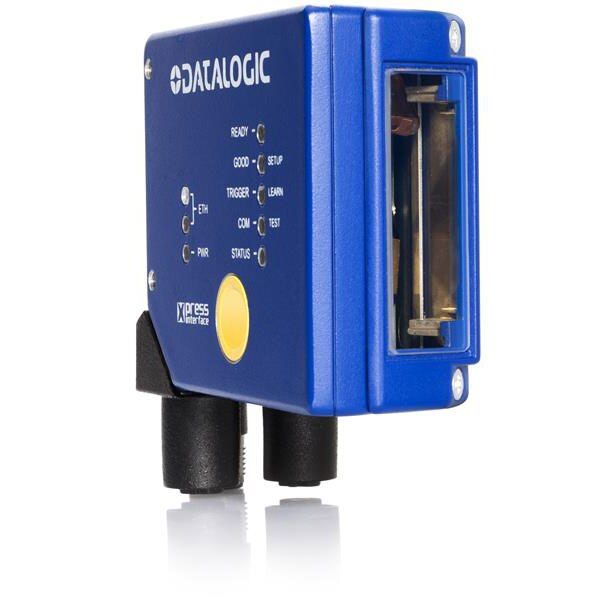

Datalogic DS2100N Series Barcode Scanners image 1

Click the image to zoom

DS2100N Series Barcode Scanners

Models and pricing below

Documents6 files

Models Available

16 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Dimensions	Communication	Price	Qty
DS2100N-1200930153183 \| DS2100N-1200 \| STD-RES, LINEAR, NSC$1,245.23	DS2100N-1200	84 x 68 x 34 mm	RS232, RS422, RS485	$1,245.23	1	View details
DS2100N-2200930153184 \| DS2100N-2200 \| HI-RES, LINEAR, NSC$1,245.23	DS2100N-2200	84 x 68 x 34 mm	RS232, RS422, RS485	$1,245.23	1	View details
DS2100N-1210930153185 \| DS2100N-1210 \| STD-RES, RASTER, NSC$1,245.23	DS2100N-1210	84 x 68 x 34 mm	RS232, RS422, RS485	$1,245.23	1	View details
DS2100N-2210930153186 \| DS2100N-2210 \| HI-RES, RASTER, NSC$1,245.23	DS2100N-2210	84 x 68 x 34 mm	RS232, RS422, RS485	$1,245.23	1	View details
DS2100N-1204930153187 \| DS2100N-1204 \| STD-RES, LINEAR, HI-PERF, NSC$1,343.68	DS2100N-1204	84 x 68 x 34 mm	RS232, RS422, RS485	$1,343.68	1	View details
DS2100N-1214930153188 \| DS2100N-1214 \| STD-RES, RASTER, HI-PERF, NSC$1,343.68	DS2100N-1214	84 x 68 x 34 mm	RS232, RS422, RS485	$1,343.68	1	View details
DS2100N-2204930153189 \| DS2100N-2204 \| HI-RES, LINEAR, HI-PERF, NSC$1,343.68	DS2100N-2204	84 x 68 x 34 mm	RS232, RS422, RS485	$1,343.68	1	View details
DS2100N-2214930153190 \| DS2100N-2214 \| HI-RES, RASTER, HI-PERF, NSC$1,343.68	DS2100N-2214	84 x 68 x 34 mm	RS232, RS422, RS485	$1,343.68	1	View details
DS2100N-1300930153232 \| DS2100N-1300 \| STD-RES, LINEAR, ETH, D$1,415.79	DS2100N-1300	104 x 69 x 38 mm	EtherNet IP, Ethernet TCP IP	$1,415.79	1	View details
DS2100N-1304930153233 \| DS2100N-1304 \| STD-RES,LIN,HI-PERF,ETH,D$1,514.24	DS2100N-1304	104 x 69 x 38 mm	EtherNet IP, Ethernet TCP IP	$1,514.24	1	View details
DS2100N-1310930153234 \| DS2100N-1310 \| STD-RES, RASTER, ETH, D$1,415.79	DS2100N-1310	104 x 69 x 38 mm	EtherNet IP, Ethernet TCP IP	$1,415.79	1	View details
DS2100N-1314930153235 \| DS2100N-1314 \| STD-RES,RAST,HI-PERF,ETH,D$1,514.24	DS2100N-1314	104 x 69 x 38 mm	EtherNet IP, Ethernet TCP IP	$1,514.24	1	View details
DS2100N-1400930153236 \| DS2100N-1400 \| STD-RES, LINEAR, PNET, D$1,600.91	DS2100N-1400	104 x 86 x 38 mm	PROFINET, Ethernet TCP IP	$1,600.91	1	View details
DS2100N-1404930153237 \| DS2100N-1404 \| STD-RES,LIN,HI-PERF,PNET,D$1,697.97	DS2100N-1404	104 x 86 x 38 mm	PROFINET, Ethernet TCP IP	$1,697.97	1	View details
DS2100N-1410930153238 \| DS2100N-1410 \| STD-RES, RASTER, PNET, D$1,600.91	DS2100N-1410	104 x 86 x 38 mm	PROFINET, Ethernet TCP IP	$1,600.91	1	View details
DS2100N-1414930153239 \| DS2100N-1414 \| STD-RES,RAST,HI-PERF,PNET,D$1,697.97	DS2100N-1414	104 x 86 x 38 mm	PROFINET, Ethernet TCP IP	$1,697.97	1	View details

Overview

The new DS2100N industrial laser bar code reader leverages Datalogic Automation's 40-year tenure in 1D bar code reading, satisfying the demanding application needs of warehousing, shop floor and OEM applications. Equipped with limitless connectivity options including PROFINET, EtherNet/IP, and Ethernet TCP/IP communication protocols, the DS2100N is the optimal choice for short reading distances.

Features:

Embedded Ethernet connectivity
Two PROFINET Ports
Embedded Ethernet Switch
Rotating connector block
Compact dimensions
Installation flexibility and optimum form factor
Advanced Code Reconstruction (ACR)
Excellent performance on low quality and damaged labels
Up to 300mm (11.8 in.) reading distance

Applications:

Automatic warehousing
Small conveyors
Picking systems
Packaging machines
Document handling machines
Print & Apply systems
Quality control and parts tracking

Features & Benefits
Advanced Code Reconstruction
Rotating connector block
Embedded Ethernet connectivity
From $1,107
