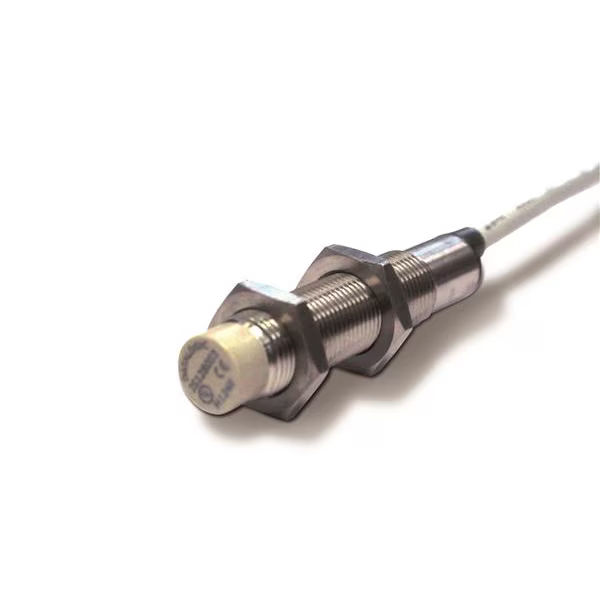

Inductive AC Inductive Sensors
The inductive sensors of the Inductive AC line are used as control devices for alternating current loads such as relays, contactors or solenoid valves.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
5 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Diameter - mm | Price | Qty | |
|---|---|---|---|---|---|
 IS-12-A15-0395B060680 | IS-12-A15-03 | Inductive Sensor, Ø12 Standard - Flush 2Mm - Vac - Cable$72.36 | IS-12-A15-03 | 12 | $72.36 | 1 | View details |
| IS-12-A15-S295B060690 | IS-12-A15-S2 | Inductive Sensor, Ø12 Standard - Flush 2Mm - Vac - M12$72.36 | IS-12-A15-S2 | 12 | $72.36 | 1 | View details |
 IS-18-A15-0395B060770 | IS-18-A15-03 | Inductive Sensor, Ø18 Standard - Flush 5Mm - 2 Wire + Gn Vac No - 2M Cable$51.95 | IS-18-A15-03 | 18 | $51.95 | 1 | View details |
 IS-30-A15-0395B060810 | IS-30-A15-03 | Inductive Sensor, Ø30 Standard - Flush 10Mm - 2 Wire + Gn Vac No - 2M Cable$60.37 | IS-30-A15-03 | 30 | $60.37 | 1 | View details |
| IS-30-A15-S295B060820 | IS-30-A15-S2 | Inductive Sensor, Ø30 Standard - Flush 10Mm - 2 Wire + Gn Vac No - M12$72.36 | IS-30-A15-S2 | 30 | $72.36 | 1 | View details |
Details
Product information
Overview
The inductive sensors of the Inductive AC line are used as control devices for alternating current loads such as relays, contactors or solenoid valves. The solid-state output allows the use of proximity switches directly on the line in series with a proper load. These proximity switches admit a supply voltage between 20-250 Vac. Available with a diameter of 12, 18 or 30 mm with M12 3-pole connector connected to ground.
Features:
- Nickel-plated Brass housing
- Standard housing length
- Operating distance: 2 … 10 mm
- Housing diameters: M12, M18, M30
- Connections type: 2 m cable or M12 connector
- Power supply: 20+250 Vac (50,60 Hz)
- Connections: 2 or 3 wires
- Outputs: NO
- IP67 protection
Applications:
- Automatic machines
- Packaging lines
- Transportation lines
- Automatic warehouses
- Automotive
| Features & Benefits | |
|---|---|
| Nickel-plated Brass housing | |
| Operating distance: 2 - 10 mm | |
| Outputs: NO | |
