Datalogic MATRIX 120 210-010 WVGA SER+ETH STD

937800001

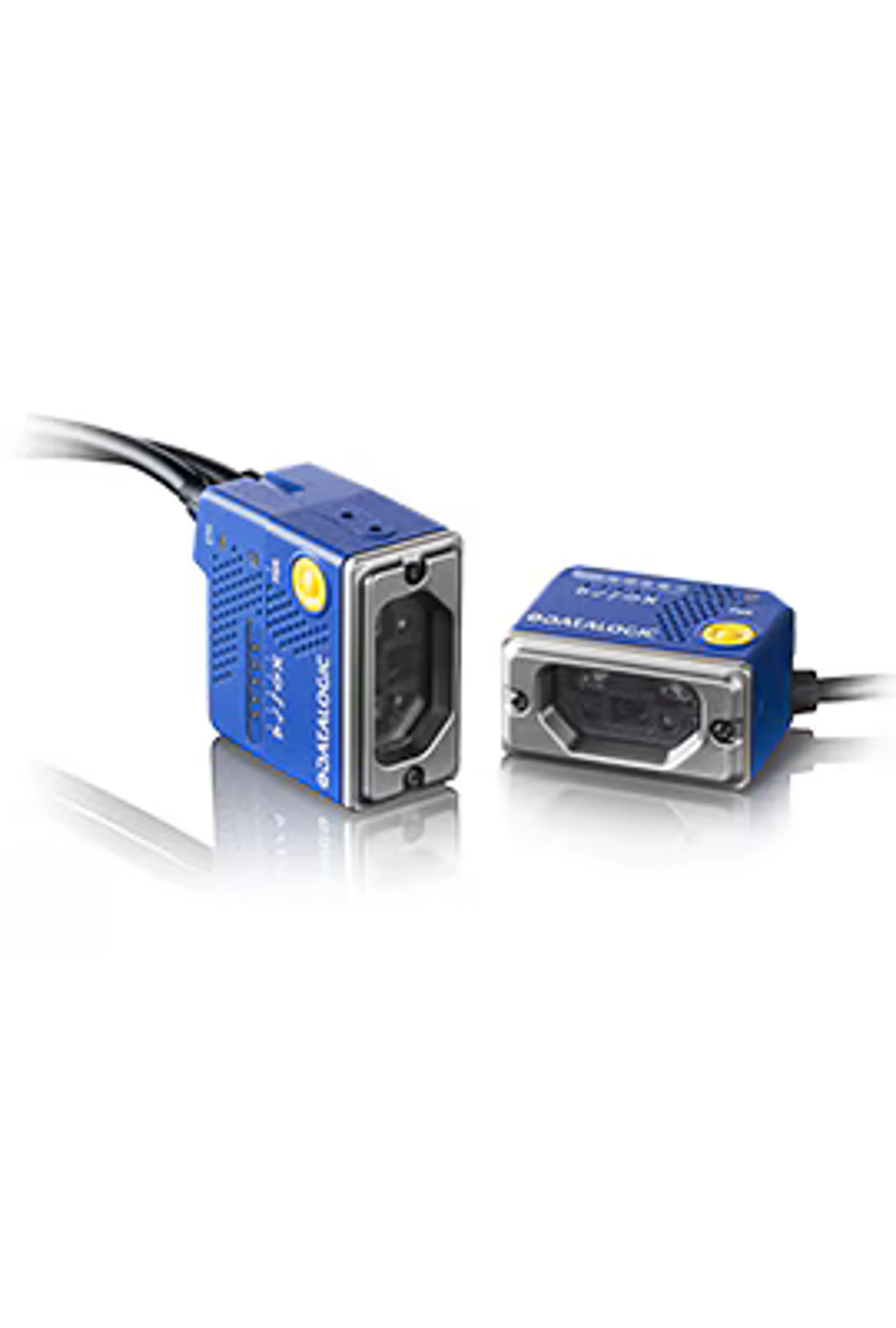

The Matrix 120?Ö imager is the smallest ultra-compact industrial 2D imager range in the market to fit any integration space and the smallest compact 2D imager with embedded Ethernet connectivity.

The Matrix 120?Ö is available in different models, including a WVGA sensor for standard applications or a 1.2 MP sensor for high resolution bar codes. Moreover, a wide angle version makes the Matrix 120?Ö the perfect solution for proximity reading.

The Matrix 120?Ö is characterized with the top industrial grade parts in its class (IP65 and 0-45 ??C / 32 ?û 133 ??F), with ESD safe models for applications in the electronic industry and features a glass-free reading window, suitable for the Food and Beverage environment.

As part of the full Matrix series, the Matrix 120?Ö leads the market for customer ease of use because of DL.CODE?Ö configuration software, X-Press?Ö button and intuitive HMI.

The Matrix 120?Ö is the entry level model of the bestin-class Matrix family of high performance industrial 2D imagers.

The Matrix 120?Ö is the perfect solution when small dimension, simple integration and performance are the key drivers. This makes the Matrix 120?Ö the ideal product for OEM customers: Chemical/Biomedical industry and Print & Apply applications. Additionally, this imager is perfect for entry level applications in the Factory Automation arena: Electronics, Packaging and Food/Beverage.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Ultra compact dimensions for easy integration
  • Smart user selectable focus for high application flexibility
  • Xpress, Datalogic’s ‘Green Spot’ technology and intuitive HMI for top ease of use

Technical Information

Technical Specifications

Technical Specifications

SKU: 937800001-datalogic
Manufacturer Datalogic
Model 937800001
Application Electronics, Factory Automation, OEM, Healthcare, Chemical and biomedical
Communication RS-232, RS-422-USB 2.0 high speed, Main RS-232 or RS-422 FD, 2400 to 115200 bits
Dimensions 45.4 x 48.5 x 23.5 mm
ESD Compliant Yes
Material Zama, Zinc Alloy - Plastic reading window cover
Series Matrix 120
