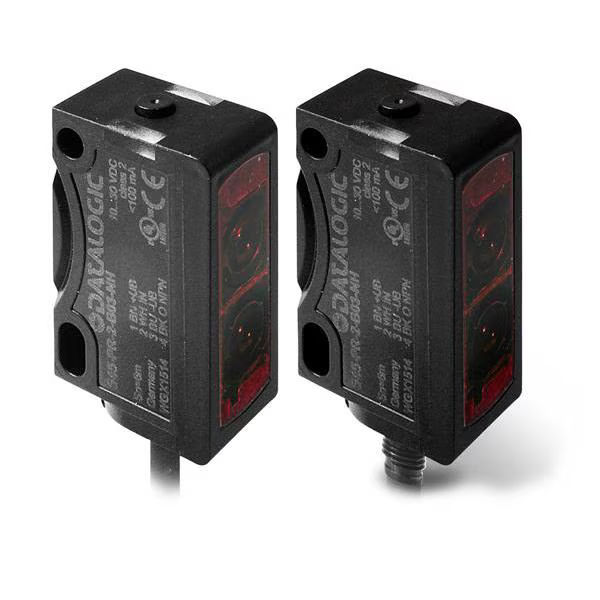

S45 Series Mini Sensors

The new S45 miniature sensor family offers a wide range of product variants and options to solve any kind of application in the market. The rugged and sturdy 32x20x12mm plastic body, reinforced with glass fibers is a great advantage in harsh environment applications, additionally its reliable sealing technology enhance the mechanical protection degree up to IP67 & IP69k, fulfilling all the existing industrial washing down requirements for food, pharma and beverage industries. The excellent technical features of this family are a technical reference for any kind of customer needs.

The wide choice of optical functions, the complete light emission options and the special advanced models like: transparent object, contrast sensor and distance sensor, settle this product family as one of the most complete sensor miniature format in the automation market.

The advanced technologies of auto-collimating optics and adaptive threshold system, ensures a perfect and reliable transparent detection through any kind of very critical target. The precise and sharp laser emission can detect very small objects at very high speed.

Thanks to improved electronic state of the art technology, the Background suppression models can detect any objects regardless any variety of surface type and color.

The precise distance sensor and the contrast sensor with high speed low jitter are completing the family with for two essential vertical applications, measurement and mark detection, achieving performance at top level in such miniaturized form factor.

The device installation is simple, precise and bump safe, with S45 dove tail and its special protective brackets. The mounting hole pitch is fully compatible with all European mounting style sensors.

Features:

• Rugged and sturdy plastic body, reinforced with glass-fibre in miniature 32x20x14 mm format
• The Background suppression models can detect any objects regardless any variety of surface type and color.
• Advanced auto-collimating optics and adaptive threshold system to ensure perfect and reliable transparent detection through any kind of very critical target.
• Precise distance sensor is available as well with good resolution and linearity up to 200mm.
• High speed low jitter contrast sensor up to 25kHz, with White and RGB light spot to cover all the critical application about mark reader.
• The installation is simple, precise and bump safe with S45 dove tail and its special protective brackets.

Applications:

• Detecting the presence of all object sizes on conveyors for Packaging industries.
• Detecting critical transparent objects in filling machines for Pharma and Food industries.
• Small part detection with maximum accuracy in Electronic and Automotive industries.
• Precise front edge detection and mark reading for packaging applications and paper printing.
• Checking position of objects with high resolution and linearity in control task
