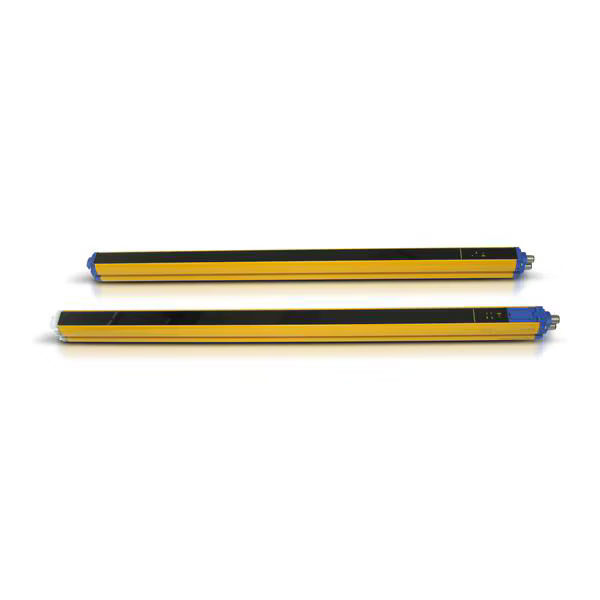

SG Compact Body Series Light Curtains

SG BODY COMPACT ( BASE and MUTING) are Type 2 and Type 4 safety light curtains with compact profile size for body protection (2,3 and 4 beams).

SG BODY COMPACT BASE, with manual or automatic reset, EDM function and operating distance up to 50 m, are ideal to protect perimeters and openings, with simple wiring and configuration through DIP Switches.

SG BODY COMPACT MUTING, with an integrated muting function, muting lamp and pre-assembled and pre-cabled muting sensors, are a complete and ready-to-use solution to protect openings.

Features:

• Compact profile: 35x40 mm
• 2 different types of mounting brackets (SWIVELLING SIDE for "THIN MOUNTING", TOP-BOTTOM ROTATING)
• Simple and fast mounting, cabling and configuration
• Models with 5-poles available for applications with automatic restart and without EDM function
• User interface: 4 LEDs (receiver) or 2 LEDs ( transmitter)
• Operating distance up to 50 m
• 2, 3, 4 beams with 500, 800, 900 and 1200 mm controlled heights
• Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY COMPACT MUTING)
• Models with T muting or L muting pre-assembled and pre-cabled retroreflective polarized sensors (only SG BODY COMPACT MUTING)

Applications:

• Automatic machines
• Robots
• Automatic assembling lines
• Palletizers and Depalletizers
• Protecting perimeter areas
