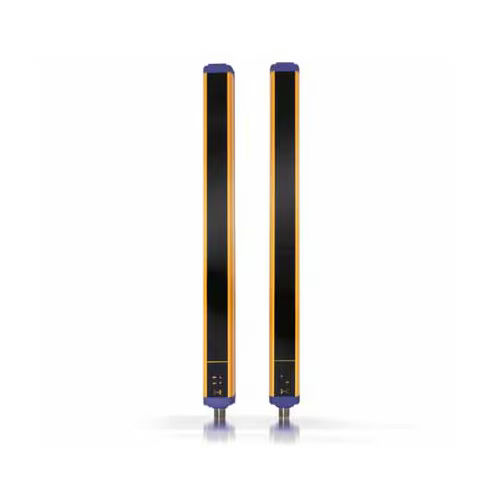

SG2 Base Series Light Curtains
SG BASE safety light curtains are a simple, reliable and cost effective solution for applications where the use of Type 2 safety sensors with hand or arm resolution, and automatic restart, is required.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
34 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
SG BASE safety light curtains are a simple, reliable and cost effective solution for applications where the use of Type 2 safety sensors with hand or arm resolution, and automatic restart, is required.
Features:
- 19 m operating distance: for applications with wide areas to monitor or deviating mirrors
- Reduced response times (from 8 to 24 ms): installation close to dangerous areas, reducing the overall machine dimensions
- Rotating brackets: installation in small spaces and easy optical alignment in difficult conditions
- SG-IP69K protection for applications where cleaning with detergents or hot water at high pressure is required
Applications:
- Automatic machines
- Machines for packaging, material handling, storing
- Weaving machines, wood working machines, ceramic working machines
- Automatic and semi-automatic assembly lines
- Automatic warehouses
| Features & Benefits | |
|---|---|
| Controlled heights ranging from 150 to 1800 mm | |
| Maximum operating distance reaching 19m | |
| Selectable Manual/Automatic Restart, EDM and Anti-Interference | |
| From $425 | |
| Controlled heights ranging from 150 to 1800 mm | |
| Selectable Manual/Automatic Restart | |
| EDM and Anti-Interference |
