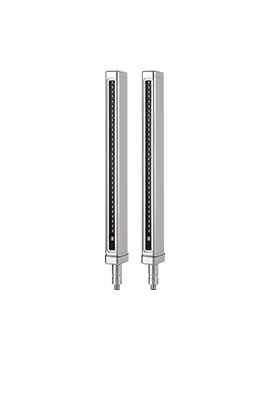

Datalogic SG4-H Series Light Curtains image 1

Click the image to zoom

SG4-H Series Light Curtains

SG4-H Safety Light Curtains, with their innovative Stainless Steel housing in a compact profile, offer the highest mechanical protection and washdown design for Pharmaceutical processing and packaging machinery applications where routine wash down and sterilization are vital to prevent bacterial contamination.

Models and pricing below

Documents3 files

Models Available

3 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Controlled Height	Sensing Distance	Resolution	Price	Qty
SG4-H14-030-OO-X-B957901700 \| SG4-H14-030-OO-X-B \| SG4-H safety light curtain stainless steel type 4 res=14mm h=300mm autorestart$2,788.20	300 mm	0.2 - 6 m	14 mm	$2,788.20	1	View details
SG4-H14-045-OO-X-B957901710 \| SG4-H14-045-OO-X-B \| SG4-H safety light curtain stainless steel type 4 res=14mm h=450mm autorestart$3,415.96	450 mm	0.2 to 6 m	14 mm	$3,415.96	1	View details
SG4-H14-015-OO-X-B957901760 \| SG4-H14-015-OO-X-B \| SG4-H safety light curtain stainless steel type 4 res=14mm h=150mm autorestart$2,252.71	150 mm	0.2 - 6 m	14mm	$2,252.71	1	View details

Overview

Features:

IP65 and IP69K full protection
Housing: AISI316L Stainless steel with roughness under 0.8 micron
Window: optical glass
Rounded surfaces, with no gaps or sharp edges
No labels: all information laser marked
Maximum safety: type 4, finger resolution
Three protection heights: 150, 300 and 450 mm
50 x 30 mm profile
4 LEDs and 7-segments display alignment aiding
Basic functionality: only automatic restart
5 poles M12 connectors

Applications:

Liquid filling machines
Powder filling machines
Closing and cap sealing machines

Features & Benefits
Maximum safety: type 4, finger resolution
IP65 and IP69K full protection
No labels: all information laser marked
