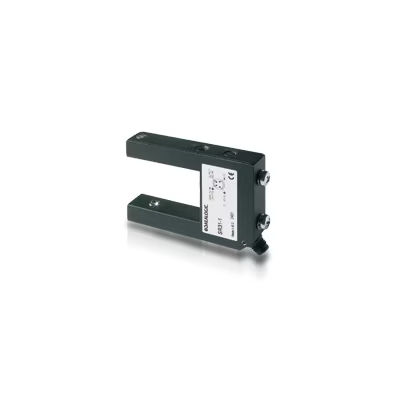

SR31 Series Fork Sensors
The SR31 series is composed of fork sensors with infrared LED emission, distinguished by an elevated 10kHz switching frequency and by a sturdy and compact metal housing.
Models Available
3 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Sensing Principle | Output Function | Nominal Sensing Distance | Price | Qty | |
|---|---|---|---|---|---|---|
 SR31S970830000 | SR31 | Sr Fork Sensor, Label Sensor Dark/Light Input Npn/Pnp Out Cable$143.85 | Photoelectric slot | L/D Selectable | 30 mm | $143.85 | 1 | View details |
| SR31-0S970830101 | SR31-0 | Sr Fork Sensor, Label Sensor Dark/Light Input Npn - M8$155.04 | Photoelectric slot | L/D Selectable | 30mm | $155.04 | 1 | View details |
| SR31-1S970830201 | SR31-1 | Sr Fork Sensor, Label Sensor Dark/Light Input Pnp - M8$155.04 | Photoelectric Slot | Light/Dark Selectable | — | $155.04 | 1 | View details |
Details
Product information
Overview
The SR31 series is composed of fork sensors with infrared LED emission, distinguished by an elevated 10kHz switching frequency and by a sturdy and compact metal housing.The detection sensitivity is adjusted by means of a trimmer. The dark/Iight operating mode is configured according to the connection.The series includes M8 connector versions with NPN output, or PNP output; cable versions present both NPN/PNP outputs.The SR31 sensors have e 30 mm wide and 42 mm deep fork These sensors are suitable for detecting opaque Iabels on a transparent support, to control material presence and continuity, to detect synchronism pulses on toothed or holed wheels, or as on-off edge guide.
Features:
- Infrared LED emission
- Sensitivity trimmer adjustment
- Elevated switching frequency
- Metal housing with wide fork
Applications:
- Labeling machines
- Packaging and bottling lines
- Assembling lines
| Features & Benefits | |
|---|---|
| Infrared LED emission | |
| Sensitivity trimmer adjustment | |
| Metal housing with wide fork | |
| From $159 |
