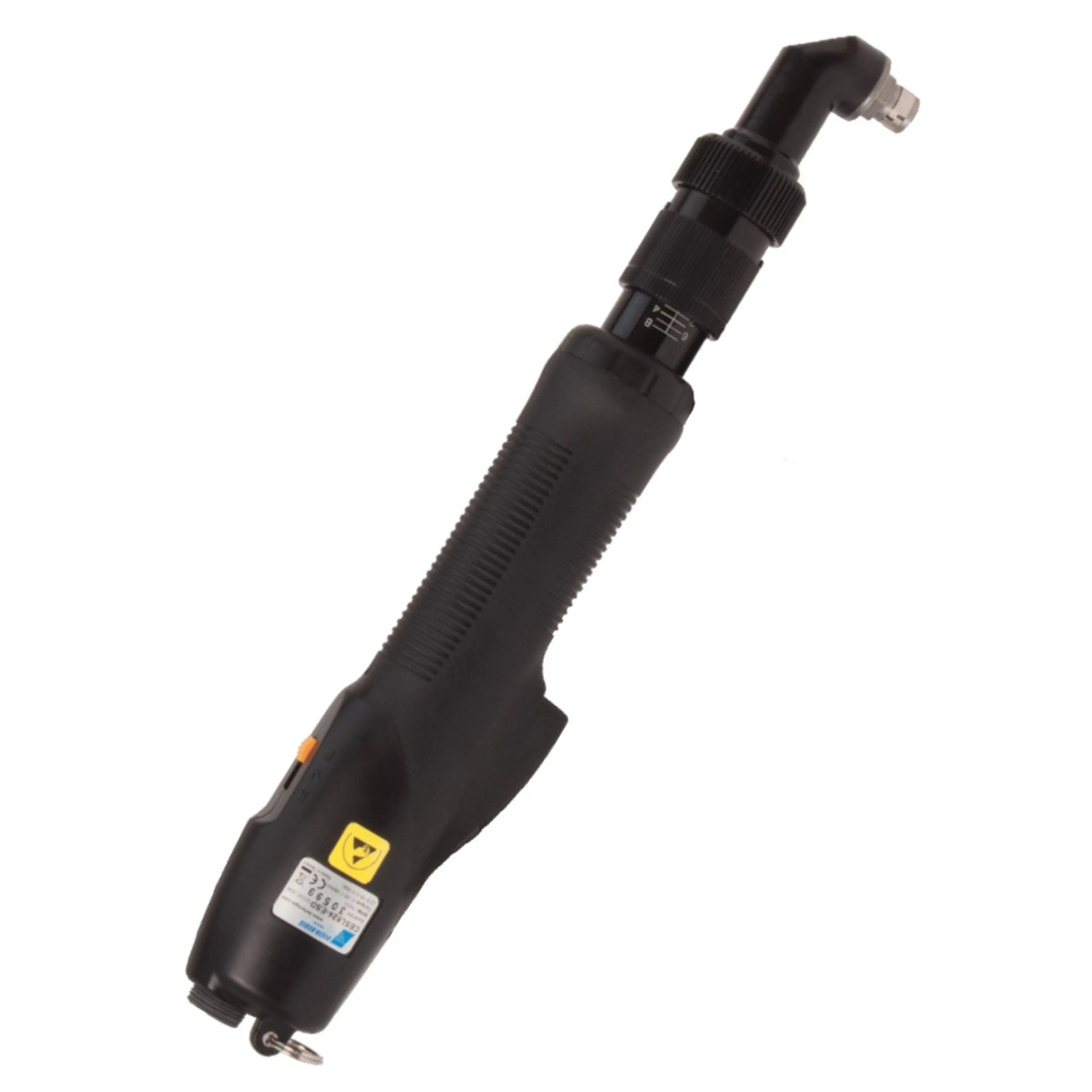

| CESL810-ESD | 1/4'' Hex Right Angle Driver, 17.4 - 32 mm, 1000 rpm
The Delta Regis 40VDC 90o Right Angle Drivers have a low-profile angle head attachment for applications with limited clearance. The right angle design provides the operator with a long handle to react the torque.
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08 | $76.08 | 1 | View details |
| $150.00 | 1 | View details |
Details
Product information
Overview
Delta Regis CESL829-ESD/RA
1/4" Hex Right Angle Driver, 17,4 - 32 mm, 1000 rpm
WeÂ’ve modified our popular 40V DC Electric Screwdriver line to create the new CESL series drivers. These drivers function exclusively with the newly designed CECT326-SSO Controller, providing the user with a host of options including slow start, batch counting, and OK/NG rundown indication based on the screwdriving cycle occurring within a predefined time window. An externally accessible I/O connection provides the user with a signal interface. Outputs (24VDC, 10mA) are available for rundown OK, rundown NG, and batch complete. External switches may be wired to the input for remote enable (part in position) and remote clear (reset the batch count).
- Accurate Torque Control, Ergonomic Design
- Same proven performance as our standard 32VDC, 300 Series Screwdrivers
- Precision Shut-off Clutch
- Hi/Lo Speed Selection Switch
- Selectable Slow Start Function
- ESD-safe housing standard, includes torque lock sleeve
- brushless design = low maintenance
- CE/RoHS Compliant
Requires external power controller BECT640NHL sold separately.
| Technical Specifications | |
|---|---|
| Model | CESL810-ESD |
| Stat 1 | Lever Start |
| Stat 2 | 0.2 - 3.1 In Lb |
| Drive size | 1/4'' hex |
| Manufacturer | Delta Regis |
| Controller | BECT640NHL |
| Motor Type | Brushless |
| Stock Code | 2 |
| Start Type | Lever Start |
| Power Source | BECT640NHL |
| Style | Angle Head |
| Min Torque (In Lb) | 17.4 |
| Max Torque (In Lb) | 32 |
| Min Torque (Nm) | 1.97 |
| Max Torque (Nm) | 3.62 |
| Overall Length | 185 |
| ESD Compliant | Yes |
| Power supply | BECT640NHL |
| Max Free Speed (rpm) | 1000 |
| Weight (lbs) | 0.85 |
| Series | CESL8 |
| Drive Type | 1/4'' hex |
| Voltage | 40V |
| MPN | CESL810-ESD |
| Features & Benefits | |
| Low-Profile Angle Head: The screwdriver's low-profile angle head attachment allows for access to tight spaces, enabling precise fastening even in confined areas. | |
| Dependable, long lifespan | |
| CE/RoHS compliant | |
| Dependable | |
| long lifespan | |
