DRFF-208R Automation Feeders
DRFF-208R Series Compact Screw Feeders for Vacuum Pickup and Automation
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
6 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Screw Size | Dimensions | Price | Qty | |
|---|---|---|---|---|---|---|
 DRFF-208R-0.8DRFF-208R-0.8 | Screw Feeder, 0.8mm screw thread dia, robotic/automated pickup | DRFF-208R-0.8 | M0.8 | 160 x 82 x 112 mm | 1 | View details | |
| DRFF-208R-1.0DRFF-208R-1.0 | Screw Feeder, 1.0mm screw thread dia, robotic/automated pickup | DRFF-208R-1.0 | M1.0 | 161 x 82 x 112 mm | 1 | View details | |
| DRFF-208R-1.2DRFF-208R-1.2 | Screw Feeder, 1.2mm screw thread dia, robotic/automated pickup | DRFF-208R-1.2 | M1.2 | 162 x 82 x 112 mm | 1 | View details | |
| DRFF-208R-1.4DRFF-208R-1.4 | Screw Feeder, 1.4mm screw thread dia, robotic/automated pickup | DRFF-208R-1.4 | M1.4 | 163 x 82 x 112 mm | 1 | View details | |
| DRFF-208R-1.7DRFF-208R-1.7 | Screw Feeder, 1.7mm screw thread dia, robotic/automated pickup | DRFF-208R-1.7 | M1.7 | 164 x 82 x 112 mm | 1 | View details | |
| DRFF-208R-2.0DRFF-208R-2.0 | Screw Feeder, 2.0mm screw thread dia, robotic/automated pickup | DRFF-208R-2.0 | M2.0 | 165 x 82 x 112 mm | 1 | View details |
Details
Product information
Overview

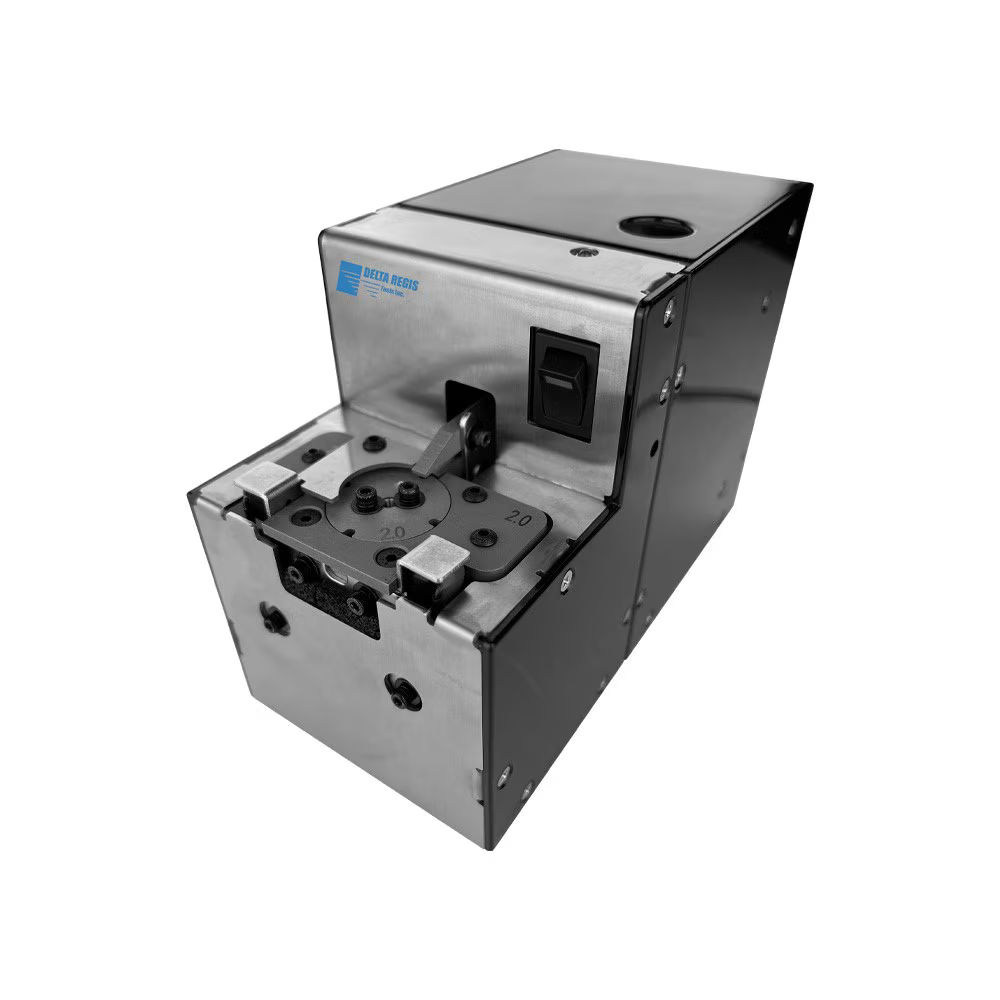

Delta Regis DRFF-208R Automation Feeders
- PICK-UP TYPE: Robotic
- MAX SCREW THREAD LENGTH: 0.31 in (8 mm)
- SCREW SIZE: M0.8 (#000), M1.0 (#00), M1.2 (#00), M1.4 (#0), M1.7 (#1), M2.0 (#2)
- INPUT: 100-240VAC
| Features & Benefits | |
|---|---|
| Magnetic pick-up of ferrous screws | |
| Precise vibration control allows feeding of many different screw types and sizes | |
| Individual brushless driver motors for vibration and feeding | |
| Auto shut-off of vibration/feed when not in use |
