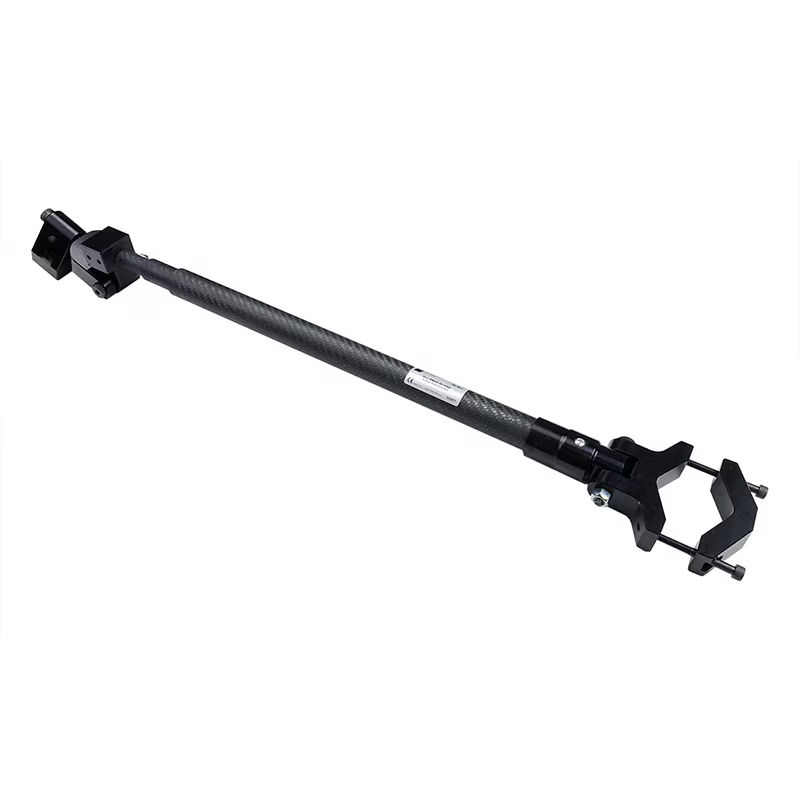

Delta RegisERGO-40-1000-A
354 in lb Telescopic Torque Reaction Arm
The ERGO-40 Telescopic Reaction Arm is used to absorb and transfer the reaction force generated at the screwdriver during fastening, without having a significant effect on freedom of movement.
$789.60
Total$789.60Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
ERGO-40-1000-A | 354 in lb Telescopic Torque Reaction ArmERGO-40-1000-A
Total$789.60
1
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 DR90-10103DR90-10103 | 1.5-3.0 lb Tool Balancer$102.35 | DR90-10103 | $102.35 | 1 | View details |
 DR90-30001DR90-30001 | 24'' Tool Stand$255.45 | DR90-30001 | $255.45 | 1 | View details |
Details
Product information
Overview
Delta Regis 354 in lb Telescopic Torque Reaction Arm
ERGO-40-1000-A
The ERGO-40 Telescopic Reaction Arm is used to absorb and transfer the reaction force generated at the screwdriver during fastening, without having a significant effect on freedom of movement, thereby reducing operator fatigue. Through the use of carbon-fiber tubes, the arm is extremely tough while being light at the same time. With the universal mounting adapter, the ERGO-40 is capable of being mounted problem-free in most work areas.
Features:
- Solidly constructed rotation and swivel joints. The universal adapter allows for easy mounting in most work environments.
- Telescopic carbon-fiber arm. The tubes have been polished for a precision fit and are guided in low wear polymer bushings.
- Sturdy tool holder accepts tool diameters of 27 to 45 mm. Optimize tool mounting by selecting the aluminum torque lock sleeve that corresponds to your model of Delta Regis Electric Screwdriver.
- For optimal installation, use the Telescopic Reaction Arm in conjunction with a DR90-30001 Tool Stand and a DR90-10103 Tool Balancer.
| Technical Specifications | |
|---|---|
| Model | ERGO-40-1000-A |
| Type | Torque Reaction Arm |
| Manufacturer | Delta Regis |
| SKU | ERGO-40-1000-A |
| Diameter - mm | 1.2 - 2.4'' |
| Max Torque (In Lb) | 354 |
| Max Torque (Nm) | 40 |
| Travel (in) | 19.13 - 41.97 |
| Diameter - in | 1.2 - 2.4 |
| MPN | ERGO-40-1000-A |
| Features & Benefits | |
| Solidly constructed rotation and swivel joints | |
| Universal adapter allows for easy mounting in most work environments | |
| Tubes have been polished for a precision fit | |
| Sturdy tool holder accepts tool diameters of 27 to 45 mm | |
