DI-1D | One-Tool Control Unit 120V
Overview

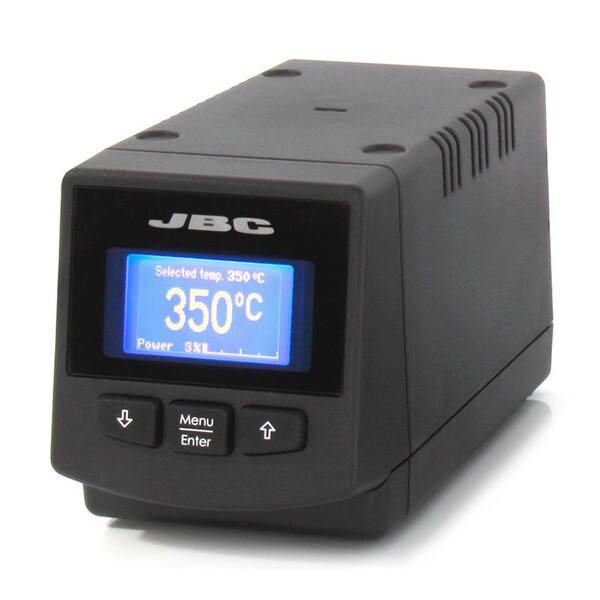

JBC DI-1D
One-Tool Control Unit 120V
This control unit manages 1 tool for soldering or desoldering.
It offers full connectivity to any of JBC tools in order to set up your personalized station.
The DI works with the JBC Exclusive Heating System and the intelligent sleep & hibernation features to extend a tip´s life up to 5 times longer.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
The USB connector allows to update software, create graphs and manage parameters from a PC.
For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge. See the full cartridge range.
Features & Benefits
- The USB connector allows software updates, creates graphs, and manages parameters from PC.
- Using the menu, you csn personalize over 20 parameters to help manage the soldering process
- It offers full connectivity to any of jBC tools in order to set up your personalized station.
- JBC exclusive heating system and the intelligent sleep & hibernation features to extend a tip's life up to 5x longer.
Technical Specifications
Temperature Range - fahrenheit
190 - 840
Permissible ambient temperature - celsius
10 - 40
Voltage
120V
Input Fuse
2A
Tip to ground resistance
<2 ohms
Dimensions -
90 x 105 x 180
Weight - lbs
4.74
ESD Compliant
Yes
Technical Documents
JBC DI Control Unit Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
