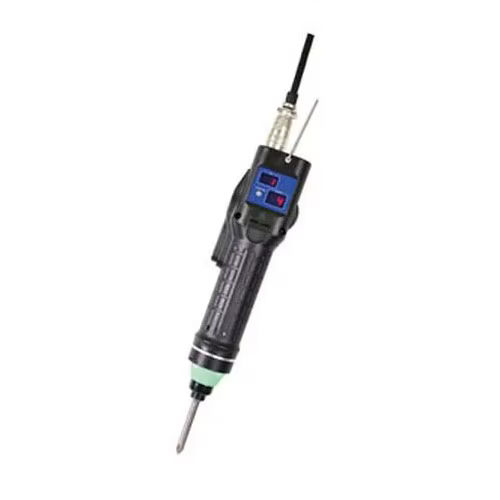

DLV45C12P-AYK | Inline Brushless Electric Screwdriver, 5.3 - 39.8 in lbs, Push-to-Start
Experience the power of precision with the Nitto Kohki DLV45C12P-AYK Inline Brushless Electric Screwdriver. Its innovative design, wide torque range, and user-friendly features make it an indispensable tool for any assembly line. Invest in this exceptional electric screwdriver and unlock new levels of efficiency and productivity in your fastening operations.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
4 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 DCC0241X-AZ165802372 | DCC0241X-AZ | Delvo C series Controller$1,567.50 | $1,567.50 | 1 | View details |
 BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08 | $76.08 | 1 | View details |
| $150.00 | 1 | View details | |
 QCI-100QCI-100 | Torque Tester 10 - 100 Lb. In., .25'' Sq. Dr.$1,232.81 | $1,232.81 | 1 | View details |
Details
Product information
Overview
Introducing the Nitto Kohki DLV45C12P-AYK Inline Brushless Electric Screwdriver, a remarkable assembly tool that combines power, precision, and versatility. Engineered by Nitto Kohki, this electric screwdriver is designed to streamline your fastening processes and enhance productivity in various assembly applications.
- Min Torque(In Lb: 5.3)
- Max Torque(In Lb: 39.8)
- Drive Size: 1/4'' hex
- Free Speed(RPM): 1200
- Voltage: 120V
- Start Type: Push-to-Start
Controller/Power Supply DCC0241X-AZ sold separately.
| Technical Specifications | |
|---|---|
| Min Torque - in lbs | 5.3 |
| Max Torque - in lbs | 39.8 |
| Min Torque - Nm | 0.6 |
| Max Torque - Nm | 4.5 |
| free speed - rpm | 1200 |
| Series | Delvo C |
| Type | Electric Screwdriver |
| Style | Inline |
| Start Type | Push-to-Start |
| Motor Type | Brushless |
| Power Source | DCC0241X-AZ |
| Machine Screw Size - mm | 3-6 |
| Tapping Screw Size - mm | 2.5-5 |
| ESD Compliant | Yes |
| weight - lbs | 1.39 |
| Stock Code | B |
| MPN | DLV45C12P-AYK |
| Features & Benefits | |
| Inline Design: The DLV45C12P-AYK features an inline configuration, providing improved balance and control during fastening applications, making it ideal for use in tight spaces or hard-to-reach areas. | |
| Wide Torque Range: With a torque range of 5.3 - 39.8 in lbs (0.6 - 4.5 Nm), this electric screwdriver caters to a broad spectrum of fastening requirements, ensuring accurate and consistent results. | |
| Push-to-Start Operation: The convenient push-to-start mechanism allows for effortless operation, minimizing user fatigue and maximizing efficiency during assembly tasks. | |
| Brushless Motor: Equipped with an advanced brushless motor, the DLV45C12P-AYK delivers exceptional performance, increased durability, and reduced maintenance needs. | |
