DRFF-535R-M6.0 | Robotic Screw Presenter, M6.0 x 35mm, 500cc
Overview

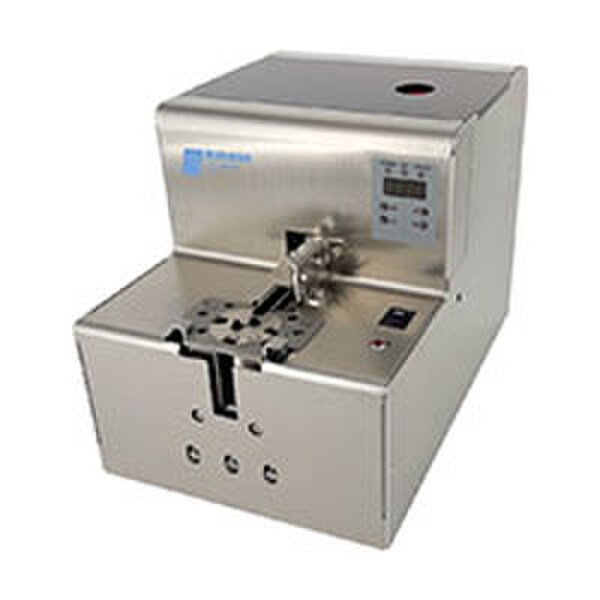

Introducing the DRFF-535R-M6.0 Robotic Screw Presenter from Delta Regis, an innovative solution designed to revolutionize your robotic and automated screwdriving processes. This screw presenter offers a range of features that enhance productivity and efficiency in your assembly operations.
- Screw Size: M6.0 x 35mm
- Hopper Capacity: 500cc
- Brand: Delta Regis
Features & Benefits
- Increased Productivity: The DRFF-535R-M6.0 ensures that screws are always ready to be picked up and installed, minimizing downtime and maximizing production output.
- Robotic Applications: Specifically designed for robotic applications, this screw presenter can be integrated with magnetic or vacuum pick-up systems, providing seamless automation.
- Large Hopper Capacity: Equipped with an extra-large 500cc hopper, this screw presenter significantly reduces the frequency of refilling, ensuring uninterrupted operation.
- Simple Maintenance: With its user-friendly design, the DRFF-535R-M6.0 allows for simple service and setup, reducing maintenance downtime.
- Comprehensive Package: The DRFF-535R-M6.0 comes with an AC adapter, setup tools, and shims, providing everything you need to get started.
Technical Specifications
Input Power
100-240 VAC
Screw Size
M6.0
Manufacturer
Delta Regis
Capacity
30.5 cu.in / 500cc
SKU
DRFF-535R-M6.0
Dimensions
11.5 x 7.5 x 8.3 in (292.5 x 190 x 210 mm)
Weight (lbs)
15.4
Series
DRFF-535R
Technical Documents
Delta Regis DRFF-535R Operation and Setup Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
