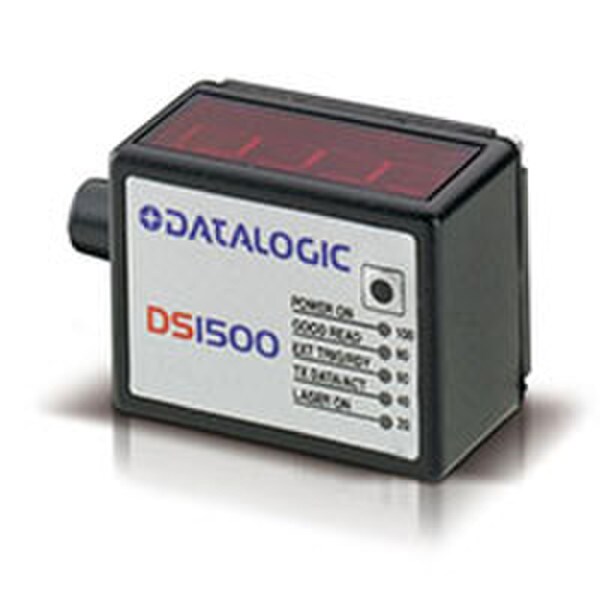

DS1500-2100 | HI-RES,RS232+RS485,LIN,DIR
The combination of extremely compact dimensions and powerful high speed reading capabilities makes the DS1500 scanner ideal for demanding OEM applications. DS1500 miniaturization allows easy integration into OEM equipment and automatic machinery. The high scan rate and sophisticated electronic design effectively suits difficult reading conditions.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

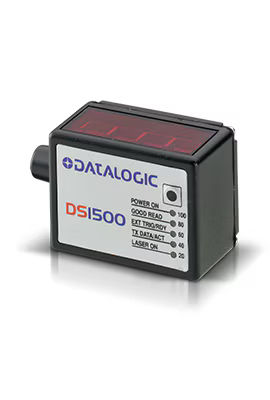

Datalogic DS1500-2100 / 939201001
HI-RES,RS232+RS485,LIN,DIR
The combination of extremely compact dimensions and powerful high speed reading capabilities makes the DS1500 scanner ideal for demanding OEM applications. DS1500 miniaturization allows easy integration into OEM equipment and automatic machinery. The high scan rate and sophisticated electronic design effectively suits difficult reading conditions.
Features:
- Dimensions: 40 x 30 x 22mm
- Scan Frequency: 800-1200scan/sec
- 1 input + 2 output
- RS232 + RS232 or RS485 serial port
- 5Vdc
- Function Button + LED
- Typical reading range: 50 ?û 200mm
Applications:
- Packaging machines
- Biomedical analysis machines
- Document handling machines: Electronic Industry, Print & Apply systems
- ATL (Automated Tape Libraries)
| Technical Specifications | |
|---|---|
| Operating Modes | On Line, Serial On Line, Automatic, Continuous, Test |
| Model | DS1500-2100 |
| Interface | Pushbutton, 5 LEDs |
| Type | Identification - Laser Bar Code Scanner |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 45°C (32 to 113 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 2 |
| SKU | 939201001 |
| Dimensions | 40 x 30 x 22 mm |
| Power supply | 5 VDC |
| Weight (lbs) | 0.10 |
| Series | DS1500 |
| Max scans/sec | 1200 |
| Resolution | 0.15 mm |
| MPN | DS1500-2100 |
| Features & Benefits | |
| Dimensions: 40 x 30 x 22mm | |
