Datalogic930161040
DS2200-2100 | HI-RES, LIN, RS485+RS232, 5V
The DS2200-2100 embedded bar code reader is an ultra-compact laser scanner with built-in decoder, 500scans/sec, reading distance from 50 to 220mm.
$1,342.44List $1,491.60
Save $149.16Total$1,342.44Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
930161040 | DS2200-2100 | HI-RES, LIN, RS485+RS232, 5VDS2200-2100
Total$1,342.44
1
Details
Product information
Overview

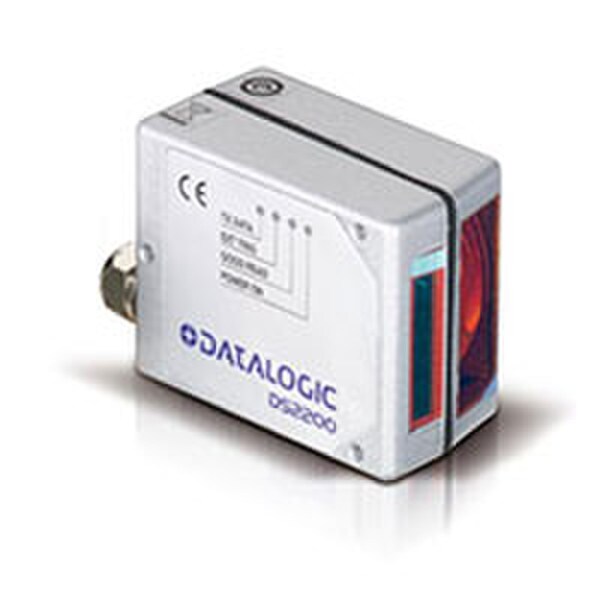

Datalogic DS2200-2100 / 930161040
HI-RES, LIN, RS485+RS232, 5V
The DS2200-2100 embedded bar code reader is an ultra-compact laser scanner with built-in decoder, 500scans/sec, reading distance from 50 to 220mm.
Features:
- Compact dimensions
- Excellent reading capabilities
- Designed for OEM integration
- Very high density code reading (up to 0,076mm/3mils)
Applications:
- Packaging machines
- Biomedical analysis machines
- Document handling machines
- Print & Apply systems
- ATL (Automated Tape Libraries)
| Technical Specifications | |
|---|---|
| Operating Modes | On-line, Serial On-line, Automatic, Test, Verifier |
| Model | DS2200-2100 |
| Type | Identification - Laser Bar Code Scanner |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 40 °C (32 to 104 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 2 |
| SKU | 930161040 |
| Dimensions | 50 x 40 x 28 mm |
| Communication | RS485, RS232 |
| Power supply | 5 VDC |
| Output | Two SW programmable, event driven |
| Weight (lbs) | 0.33 |
| Series | DS2200 |
| Max scans/sec | 500 |
| Resolution | 0.076 m, 3 mils |
| MPN | DS2200-2100 |
| Features & Benefits | |
| Compact dimensions | |
