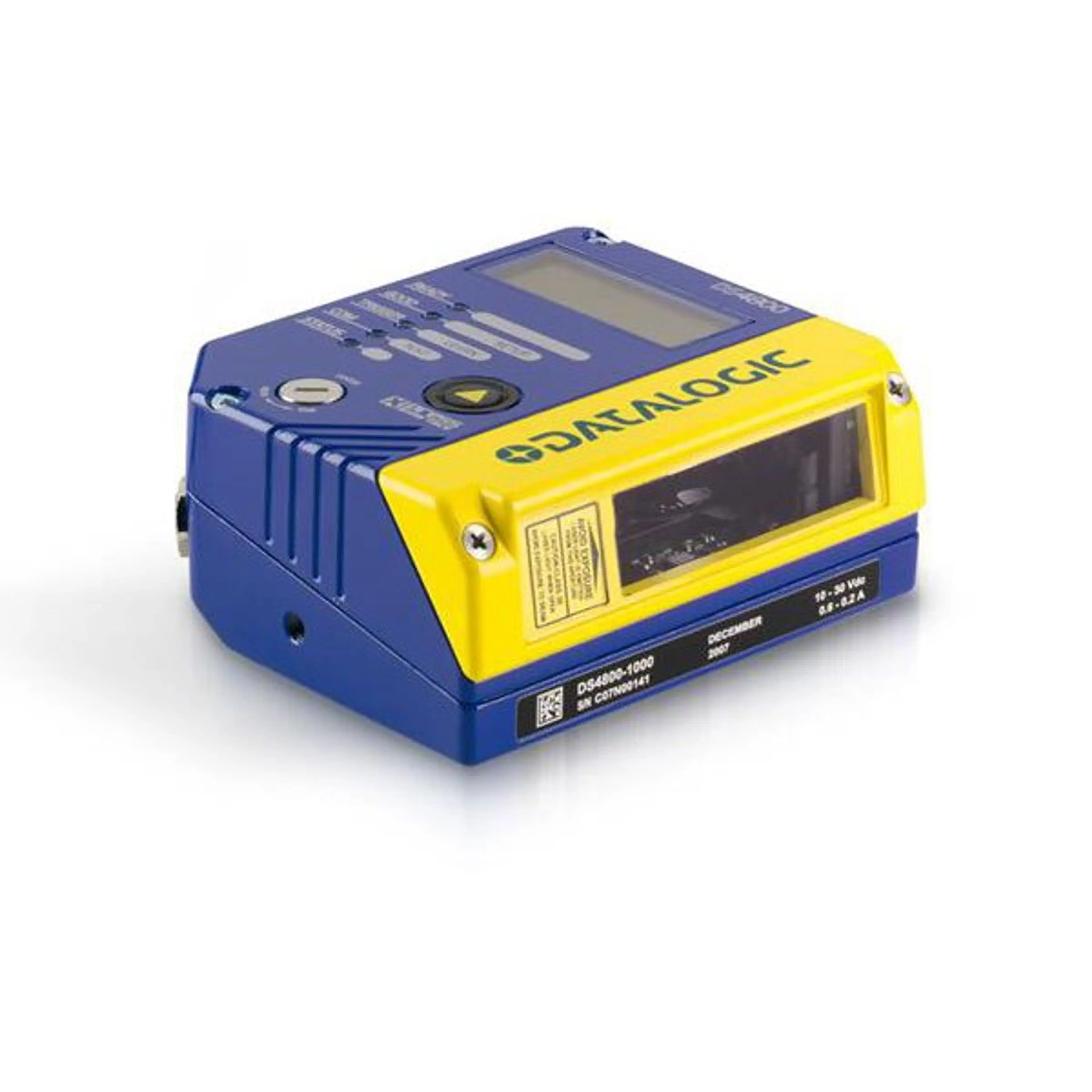

DS4800-1005 | ADJ FOCUS, LINEAR, SUBZERO
DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESSinterface, high-speed ID-NET communication interface and total immunity against ambient light. Smart Focus Adjustment optimizes reading performances based on reading distances using a single model. DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35°C +50°C by means of the smart internal heater and de-frost window.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Datalogic DS4800-1005 / 931061322
ADJ FOCUS, LINEAR, SUBZERO
DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESSinterface, high-speed ID-NET communication interface and total immunity against ambient light. Smart Focus Adjustment optimizes reading performances based on reading distances using a single model. DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35??C +50??C by means of the smart internal heater and de-frost window.
Features:
- Variable focus system
- 600-900scan /sec
- 2 input + 2 output
- RS232 + RS485 serial port
- Display and multi-language messages
- ID-NET
- X-PRESS
- 10-30Vdc, IP65, 0-50??C (-35??C-50??C Subzero models)
- ACR4 decoding algorithm
- Typical reading range: 200 - 1000mm
Applications:
- Automated warehousing
- Reading on pallets
- Picking systems
- Automated shop floor
- Quality control and parts tracking
- Reading on forklift trucks
- Frozen Industry, Temperature Controlled Room applications and Outdoor Environment
| Technical Specifications | |
|---|---|
| Operating Modes | On-line, Serial On-line, Automatic, Continuous, Test, Verifier |
| Model | DS4800-1005 |
| Interface | X-PRESS HMI, Programmable Push Button, LEDs |
| Type | Identification - Laser Bar Code Scanner |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 50 °C (32 to 122 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 28.8 |
| SKU | 931061322 |
| Dimensions | 101 x 85 x 42 mm |
| Communication | RS232, RS422, RS485 |
| Power supply | 10 - 30 VDC |
| Output | Two SW programmable, event driven, optocoupled |
| Weight (lbs) | 1.28 |
| Series | DS4800 |
| Max scans/sec | 600 - 1000 |
| Resolution | 0.20 mm, 8 mils |
| MPN | DS4800-1005 |
| Features & Benefits | |
| Variable focus system | |
