Datalogic931351095
DS6400-100-011 | DYN.F.,M, LIN.,PROFIBUS

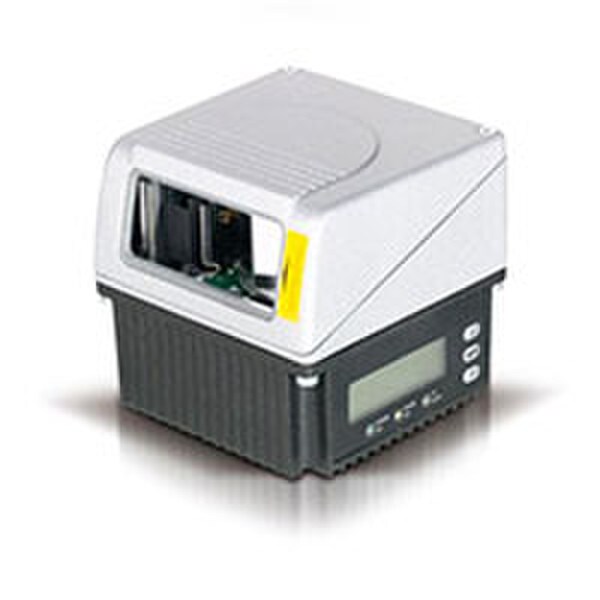

The high performance DS6400 industrial laser bar code scanner presents the new Step-a-Head feature, reading range from 300 to 2.500mm, new FLASH dynamic focus, advanced decoder with code reconstruction capability (ACR4), display and keyboard, new GENIUSSW configurator and PackTrack function.
$5,378.19List $7,757.00
Save $2,378.81Total$5,378.19Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
- PDFDatalogic DS6400 Laser Barcode Scanners Manual (PDF)Open
- PDFDatalogic DS6400 Laser Barcode Scanners Brochure (PDF)Open
- PDFDatalogic Identification Product Guide (PDF)Open
- PDFDatalogic Identification Reference Guide (PDF)Open
- PDF6K 8KA Family Host Mode Programming (PDF)Open
- PDF6K 8KA EtherNetIP UserGuide (PDF)Open
931351095 | DS6400-100-011 | DYN.F.,M, LIN.,PROFIBUSDS6400-100-011
Total$5,378.19
1
Details
Product information
Overview
Datalogic DS6400-100-011 / 931351095
DYN.F.,M, LIN.,PROFIBUS
The high performance DS6400 industrial laser bar code scanner presents the new Step-a-Head feature, reading range from 300 to 2.500mm, new FLASH dynamic focus, advanced decoder with code reconstruction capability (ACR4), display and keyboard, new GENIUSSW configurator and PackTrack function.
Features:
- Dynamic focus system (FLASH)
- Avalanche photodiode technology
- 600-1200scan /sec
- 4 input + 3 output
- RS232 + RS485 serial port
- Built in: Ethernet or Profibus or Devicenet
- ACR4 decoding algorithm
- Typical reading range: 500 x 2000mm
Applications:
- Automated warehousing
- Reading on forklift trucks
- Shop floor Applications
- Parcel sorting
| Technical Specifications | |
|---|---|
| Operating Modes | On-Line, Serial On-Line, Continuous, Test, Pack Track |
| Model | DS6400-100-011 |
| Type | Identification - Laser Bar Code Scanner |
| Manufacturer | Datalogic |
| Operating Temperature Range | 0 to 40 °C (32 to 104 °F) |
| Permissible relative humidity (%) | 90 |
| Power consumption (W) | 15 - 20 |
| SKU | 931351095 |
| Dimensions | 110 x 113 x 99 mm |
| Communication | RS232, RS485 |
| Power supply | 15 - 30 VDC |
| Weight (lbs) | 3.30 |
| Series | DS6400 |
| Max scans/sec | 600 - 1200 |
| MPN | DS6400-100-011 |
| Features & Benefits | |
| Dynamic focus system (FLASH) | |
