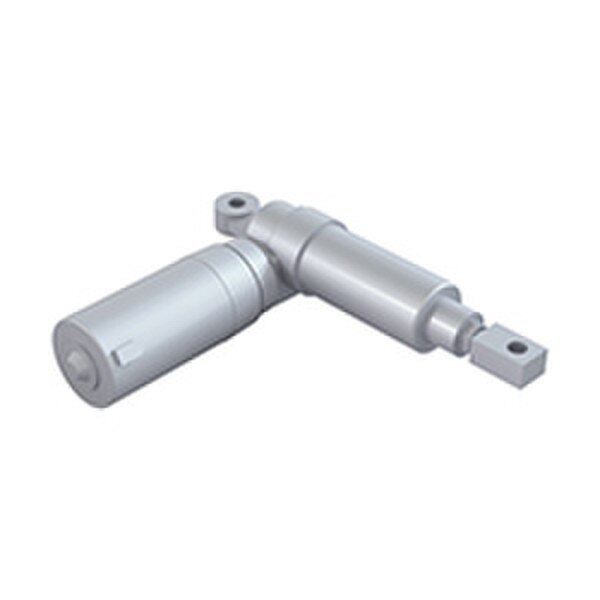

MPD Linear Actuators

MPD Linear Actuator have a Heavy duty design for long life in tough applications

Models and pricing below

Documents2 files

Models Available

44 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Stroke Length (in)	Voltage	Capacity (lbs)	Price	Qty
HMPD3405-12HMPD3405-12 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, High-Speed Motor, 12'' Stroke$866.00	12	12 VDC	250	$866.00	1	View details
HMPD3405-18HMPD3405-18 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, High-Speed Motor, 18'' Stroke$893.00	18	12 VDC	250	$893.00	1	View details
HMPD3405-3HMPD3405-3 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, High-Speed Motor, 3'' Stroke$803.00	3	12 VDC	250	$803.00	1	View details
HMPD3405-6HMPD3405-6 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, High-Speed Motor, 6'' Stroke$831.00	6	12 VDC	250	$831.00	1	View details
HMPD3905-12HMPD3905-12 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, High-Speed Motor, 12'' Stroke$1,208.00	12	12 VDC	250	$1,208.00	1	View details
HMPD3905-18HMPD3905-18 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, High-Speed Motor, 18'' Stroke$1,242.00	18	12 VDC	250	$1,242.00	1	View details
HMPD3905-3HMPD3905-3 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, High-Speed Motor, 3'' Stroke$1,146.00	3	12 VDC	250	$1,146.00	1	View details
HMPD3905-6HMPD3905-6 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, High-Speed Motor, 6'' Stroke$1,173.00	6	12 VDC	250	$1,173.00	1	View details
HMPD6405-12HMPD6405-12 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, High-Speed Motor, 12'' Stroke$920.00	12	12 VDC	500	$920.00	1	View details
HMPD6405-18HMPD6405-18 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, High-Speed Motor, 18'' Stroke$947.00	18	12 VDC	500	$947.00	1	View details
HMPD6405-3HMPD6405-3 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, High-Speed Motor, 3'' Stroke$876.00	3	12 VDC	500	$876.00	1	View details
HMPD6405-6HMPD6405-6 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, High-Speed Motor, 6'' Stroke$893.00	6	12 VDC	500	$893.00	1	View details
MPD3404-12MPD3404-12 \| Linear Actuator, 24 VDC, 250 lbs, Clutch, 12'' Stroke$790.00	12	24 VDC	250	$790.00	1	View details
MPD3404-18MPD3404-18 \| Linear Actuator, 24 VDC, 250 lbs, Clutch, 18'' Stroke$817.00	18	24 VDC	250	$817.00	1	View details
MPD3404-3MPD3404-3 \| Linear Actuator, 24 VDC, 250 lbs, Clutch, 3'' Stroke$721.00	3	24 VDC	250	$721.00	1	View details
MPD3404-6MPD3404-6 \| Linear Actuator, 24 VDC, 250 lbs, Clutch, 6'' Stroke$761.00	6	24 VDC	250	$761.00	1	View details
MPD3405-12MPD3405-12 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, 12'' Stroke$790.00	12	12 VDC	250	$790.00	1	View details
MPD3405-18MPD3405-18 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, 18'' Stroke$817.00	18	12 VDC	250	$817.00	1	View details
MPD3405-3MPD3405-3 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, 3'' Stroke$721.00	3	12 VDC	250	$721.00	1	View details
MPD3405-6MPD3405-6 \| Linear Actuator, 12 VDC, 250 lbs, Clutch, 6'' Stroke$761.00	6	12 VDC	250	$761.00	1	View details
MPD3904-12MPD3904-12 \| Linear Actuator, 24 VDC, 250 lbs, Limit Switch, 12'' Stroke$1,132.00	12	24 VDC	250	$1,132.00	1	View details
MPD3904-18MPD3904-18 \| Linear Actuator, 24 VDC, 250 lbs, Limit Switch, 18'' Stroke$1,159.00	18	24 VDC	250	$1,159.00	1	View details
MPD3904-3MPD3904-3 \| Linear Actuator, 24 VDC, 250 lbs, Limit Switch, 3'' Stroke$1,071.00	3	24 VDC	250	$1,071.00	1	View details
MPD3904-6MPD3904-6 \| Linear Actuator, 24 VDC, 250 lbs, Limit Switch, 6'' Stroke$1,105.00	6	24 VDC	250	$1,105.00	1	View details
MPD3905-12MPD3905-12 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, 12'' Stroke$1,132.00	12	12 VDC	250	$1,132.00	1	View details
MPD3905-18MPD3905-18 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, 18'' Stroke$1,159.00	18	12 VDC	250	$1,159.00	1	View details
MPD3905-3MPD3905-3 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, 3'' Stroke$1,071.00	3	12 VDC	250	$1,071.00	1	View details
MPD3905-6MPD3905-6 \| Linear Actuator, 12 VDC, 250 lbs, Limit Switch, 6'' Stroke$1,105.00	6	12 VDC	250	$1,105.00	1	View details
MPD6404-12MPD6404-12 \| Linear Actuator, 24 VDC, 500 lbs, Clutch, 12'' Stroke$844.00	12	24 VDC	500	$844.00	1	View details
MPD6404-18MPD6404-18 \| Linear Actuator, 24 VDC, 500 lbs, Clutch, 18'' Stroke$879.00	18	24 VDC	500	$879.00	1	View details
MPD6404-3MPD6404-3 \| Linear Actuator, 24 VDC, 500 lbs, Clutch, 3'' Stroke$790.00	3	24 VDC	500	$790.00	1	View details
MPD6404-6MPD6404-6 \| Linear Actuator, 24 VDC, 500 lbs, Clutch, 6'' Stroke$817.00	6	24 VDC	500	$817.00	1	View details
MPD6405-12MPD6405-12 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, 12'' Stroke$844.00	12	12 VDC	500	$844.00	1	View details
MPD6405-18MPD6405-18 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, 18'' Stroke$879.00	18	12 VDC	500	$879.00	1	View details
MPD6405-3MPD6405-3 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, 3'' Stroke$790.00	3	12 VDC	500	$790.00	1	View details
MPD6405-6MPD6405-6 \| Linear Actuator, 12 VDC, 500 lbs, Clutch, 6'' Stroke$817.00	6	12 VDC	500	$817.00	1	View details
MPD6904-12MPD6904-12 \| Linear Actuator, 24 VDC, 500 lbs, Limit Switch, 12'' Stroke$1,173.00	12	24 VDC	500	$1,173.00	1	View details
MPD6904-18MPD6904-18 \| Linear Actuator, 24 VDC, 500 lbs, Limit Switch, 18'' Stroke$1,208.00	18	24 VDC	500	$1,208.00	1	View details
MPD6904-3MPD6904-3 \| Linear Actuator, 24 VDC, 500 lbs, Limit Switch, 3'' Stroke$1,119.00	3	24 VDC	500	$1,119.00	1	View details
MPD6904-6MPD6904-6 \| Linear Actuator, 24 VDC, 500 lbs, Limit Switch, 6'' Stroke$1,146.00	6	24 VDC	500	$1,146.00	1	View details
MPD6905-12MPD6905-12 \| Linear Actuator, 12 VDC, 500 lbs, Limit Switch, 12'' Stroke$1,173.00	12	12 VDC	500	$1,173.00	1	View details
MPD6905-18MPD6905-18 \| Linear Actuator, 12 VDC, 500 lbs, Limit Switch, 18'' Stroke$1,208.00	18	12 VDC	500	$1,208.00	1	View details
MPD6905-3MPD6905-3 \| Linear Actuator, 12 VDC, 500 lbs, Limit Switch, 3'' Stroke$1,119.00	3	12 VDC	500	$1,119.00	1	View details
MPD6905-6MPD6905-6 \| Linear Actuator, 12 VDC, 500 lbs, Limit Switch, 6'' Stroke$1,146.00	6	12 VDC	500	$1,146.00	1	View details

Overview

Duff-Norton's MPD Series linear actuators are specially designed for industrial and commercial applications. Linear Actuators can be used for opening, closing, tilting, pivoting, lifting, lowering and positioning.

Features & Benefits
Heavy duty design for long life in tough applications
Aluminum housing and outer tube
Steel translating tube – zinc chromate plated
Double clevis mounting
Spring Type Brake
Load Limiting Friction Disc Clutch
Automatic reset thermal overload motor protection
