Duff-NortonXT450-2-150

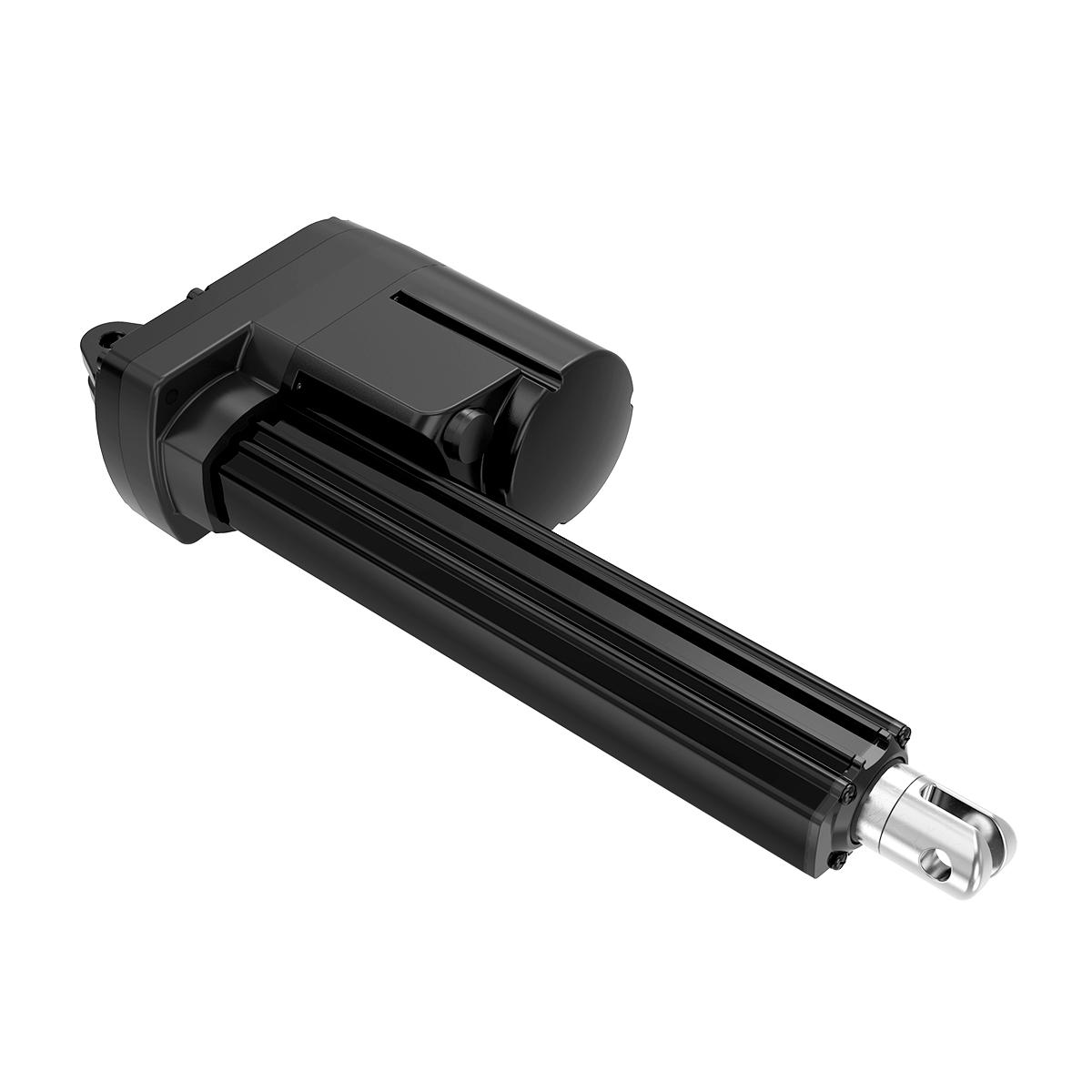

Linear Actuator, 24 VDC, 450 lbs, 5.9'' Stroke
The XT series Electromechanical Actuator. This 24 VDC Linear Actuator can yields capacities up to 450 lbs.
$389.00
Total$389.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
XT450-2-150 | Linear Actuator, 24 VDC, 450 lbs, 5.9'' StrokeXT450-2-150
Total$389.00
1
Details
Product information
Overview
Duff Norton XT450-2-150 Linear Actuator
Duff-Norton Linear Actuator, 24 VDC, 450 lbs, 5.9'' Stroke, model# XT450-2-150; available to order from Flexible Assembly Systems.
Do you see this same XT Linear Actuator available elsewhere for a lower cost? Contact Customer Service to price Match!
| Technical Specifications | |
|---|---|
| Series | XT |
| Type | Linear Actuator |
| Voltage | 24 VDC |
| Stroke Length (in) | 5.9 |
| Capacity (lbs) | 450 |
| MPN | XT450-2-150 |
| Features & Benefits | |
| Safe operation with internal limit switches to stop motion at fully retracted and fully extended positions | |
| Keyed translating tube eliminates the need for restraining torque | |
| IP66 protection for rugged outdoor environments | |
| Improved strength from zinc die cast housing | |
