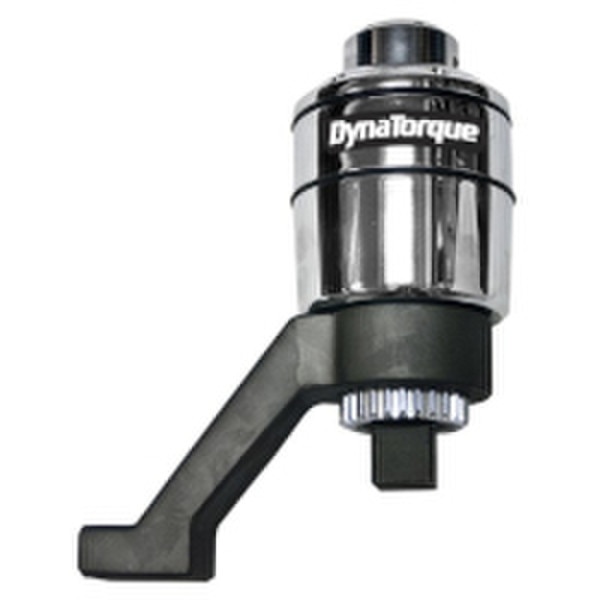

DynaTorqueATM-5000
Manual Torque Multiplier, 3/4 in, 1-1/2 out, 5000 Nm
ATM-5000 | Manual Torque Multiplier, 3/4 in, 1-1/2 out, 5000 Nm
$6,307.88List $7,209.00
Save $901.12Total$6,307.88Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
ATM-5000 | Manual Torque Multiplier, 3/4 in, 1-1/2 out, 5000 NmATM-5000
Total$6,307.88
1
Details
Product information
Overview
DynaTorque Manual Torque Multiplier, 3/4 in, 1-1/2 out, 5000 Nm
Manual Torque Multiplier, 3/4 in, 1-1/2 out, 5000 Nm, model# ATM-5000 by DynaTorque; available to order from Flexible Assembly Systems. Do you see this Manual Torque Multiplier available elsewhere for a lower price? Contact customer service on price matching!
ATM-5000 by DynaTorque
Manual Torque Multipliers offer the perfect, economical solution to high torque bolting applications.
Features:
- Superior power to weight ratio
- Delivered torque accuracy +/- 4%
- Anti-Wind Up safety feature (2,800 NM models and up) prevents input device from springing backward when released
- True torque multiplication ratios
- Standard reaction arms supplied. Custom reaction arms/nose extensions available to suit specific applications
- No preventative maintenance required
- Overload protected by shear-drive design (spare torsion shaft included). Easily replace sheared-off pins at the work site
| Technical Specifications | |
|---|---|
| SKU | ATM-5000 |
| Model | ATM-5000 |
| Input Drive/Square: in | 3/4 |
| Max. Torque - ft-lbs | 3690 |
| Max. Torque - Nm | 5000 |
| Output Drive/Square - in | 1.5 |
| Torque Ratio | 1:17 |
| Weight - kg | 7.0 |
| Weight - lb | 15.4 |
| MPN | ATM-5000 |
