Air Balancer, hi, low, no load control, 1000 lbs, 40 in. travel
Ingersoll Rand Equal Air (EA) Series (Zimmerman) Balancers are used for handling multiple (up to 3) loads within a 40 lb. (18.1 kg) weight range without the need to adjust the controls.
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Stat 2 | Weight Capacity (Lb) | Price | Qty | |
|---|---|---|---|---|---|---|
 EAW015080EAW015080 | Air Balancer, hi, low, no load control, 150 lbs, 80 in. travel$4,646.40 | EAW015080 | 150 lbs Capacity | 150 | $4,646.40 | 1 | View details |
| EAW020120EAW020120 | Air Balancer, hi, low, no load control, 200 lbs, 120 in. travel$5,649.38 | EAW020120 | 200 lbs Capacity | 200 | $5,649.38 | 1 | View details |
| EAW032080SEAW032080S | Air Balancer, hi, low, no load control, Z-stop, 325 lbs, 80 in. travel$4,032.34 | EAW032080S | 325 lbs Capacity | 325 | $4,032.34 | 1 | View details |
| EAW035080EAW035080 | Air Balancer, hi, low, no load control, 350 lbs, 80 in. travel$3,090.78 | EAW035080 | 350 lbs Capacity | 325 | $3,090.78 | 1 | View details |
| EAW050080EAW050080| Air Balancer, hi, low, no load control, 500 lbs, 80 in. travel$8,602.33 | EAW050080 | 500 lbs Capacity | 500 | $8,602.33 | 1 | View details |
| EAW065040EAW065040 | Air Balancer, hi, low, no load control, 650 lbs, 40 in. travel$3,503.50 | EAW065040 | 650 lbs Capacity | 650 | $3,503.50 | 1 | View details |
Details
Product information
Overview

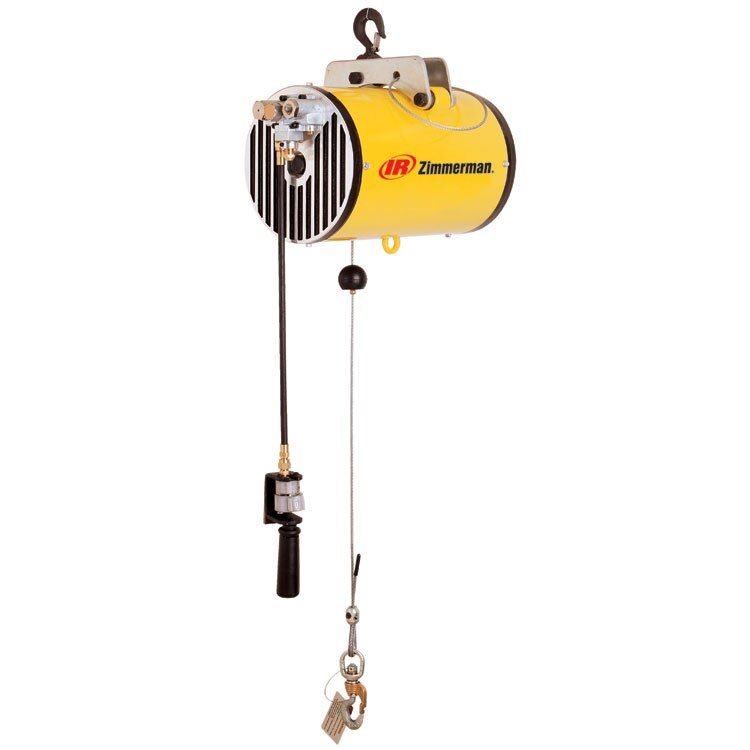

Ingersoll Rand Air Balancer with high/low control, Reeved Wire Rope, 1000 lb capacity
Ingersoll Rand Air Balancer with high/low control, Reeved Wire Rope, 1000 lb capacity, model# EAW100040. Do you see this Ingersoll Rand Air Balancer with high/low control with a Reeved Wire Rope and 1000 lb capacity available for a lower price? Contact Customer Service on Price Matching!
Ingersoll Rand EAW100040
Ingersoll Rand "EA" series balancers are used for handling multiple (up to 3) loads within a 40 lb (18.1 kg) weight range without the need to adjust the controls. When the pendant is in the LO- and UN-LOAD position, balancer air pressure is released to allow the lighter loads to be in balance. When the pendant is in the HI-LOAD position, no pressure is released, and the heaviest load can be balanced. The "EA" series balancers are ideally suited for applications where up to 3 load sizes are frequently lifted, and operator hands-on the part is required. The UN-LOAD position is also often used for handling device balancing (loaded/unloaded).
| Technical Specifications | |
|---|---|
| Model | EAW100040 |
| Stat 1 | Vert Travel 3.33 ft |
| Stat 2 | 1000 lbs Capacity |
| Type | Air Balancer |
| Manufacturer | Ingersoll Rand |
| SKU | EAW100040 |
| Stock Code | 3 |
| Weight Capacity (Lb) | 1000 |
| Travel (Ft) | 3.33 |
| Travel (mm) | 1016 |
| Weight (lbs) | 110 |
| Series | EA |
| Travel (in) | 40 |
| Capacity (lbs) | 1000 |
| MPN | EAW100040 |
| Features & Benefits | |
| All-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook. | |
| Include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake | |
| If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake,If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
