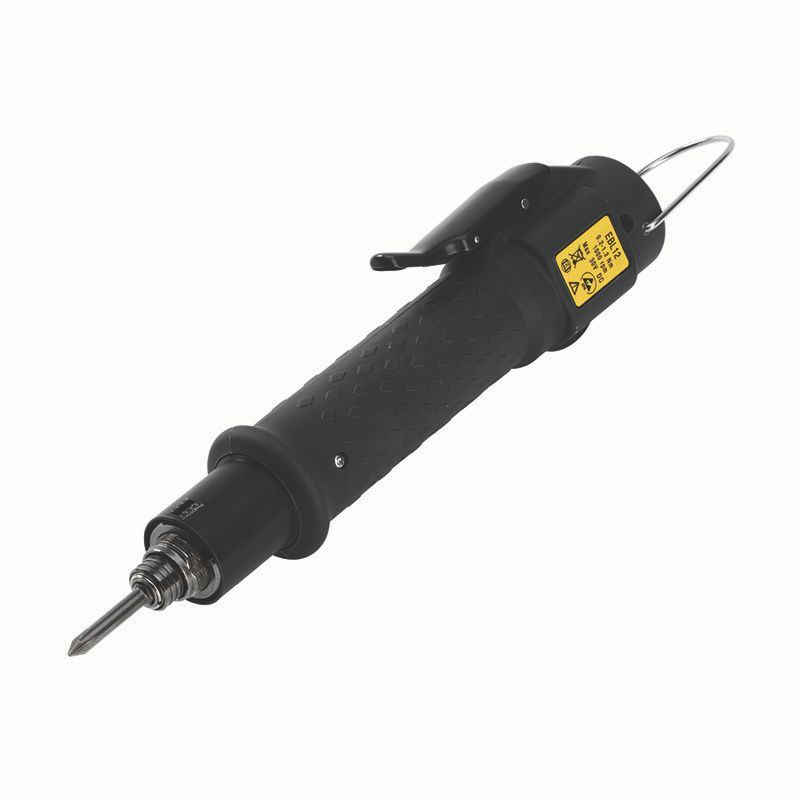

EBL12 | Inline Brushless Electric Screwdriver, 0.2 - 1.2 Nm, 910 rpm, 1/4'' hex
Elevate your low torque assembly operations with the Atlas Copco EBL12 Inline Brushless Electric Screwdriver. Its combination of advanced technology and superior ergonomics guarantees increased productivity, making it the smart choice for demanding low torque applications. Invest in the EBL12 and experience the future of electric screwdrivers today.
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
8 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Introducing the EBL12 Inline Brushless Electric Screwdriver - a revolutionary assembly tool that combines cutting-edge technology with superior ergonomics. Engineered by Atlas Copco, this electric screwdriver sets new standards for low torque screwdrivers in the industry.
- Min Torque(In Lb): 1.8
- Max Torque(In Lb): 10.6
- Speed(RPM): 910
- Drive Size: 1/4'' hex
- Inline
- Auto Shut Off
| Technical Specifications | |
|---|---|
| length | 215 mm |
| weight | 1.1 lb |
| bitdrive | 1/4' Hex |
| modeltype | Straight |
| screwcapacity | M2-3 |
| shutoffsystem | Clutch |
| torquerangemax | 1.2 Nm |
| torquerangemin | 0.2 Nm |
| torquerangesoftjointmax | 1.2 Nm |
| torquerangesoftjointmin | 0.2 Nm |
| torquescatter3s | ≤ 15 % |
| freespeed | 910 r/min |
| speedrangemax | 910 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s� |
| eaccertified | Yes |
| eulegislation | (EU) 2023/1230 (MR) |
| eustandard | EN 61000-3-3:2013+A1:2019+A2:2021​ |
| kccertified | Yes |
| kcid | MSIP-REI-50A-EBL |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 61000-3-3:2013+A1:2019+A2:2021​ |
| weee | 5 - Small equipment <50cm |
| motorpower | 15 W |
| motorvoltagesecond | 20 V |
| motorvoltagetype | d.c. |
| motorvoltage | 30 V |
| ingressprotectionrating | IP20 |
| MPN | EBL12 |
| Features & Benefits | |
| Unrivaled Durability: Equipped with a state-of-the-art brushless motor, the EBL12 delivers exceptional power and efficiency. Its long-lasting performance outshines traditionally powered competitors, ensuring consistent and reliable operation. | |
| Unmatched Comfort: The EBL12 boasts a unique patented ergonomic design that provides unparalleled operator comfort. Its well-thought-out shape and grip minimize fatigue, allowing for extended use without strain. | |
| Configurable Start Options: The EBL12 offers the flexibility of choosing between a push or lever start mechanism. This customization empowers users to select the most comfortable and efficient starting method based on their preferences and task requirements. | |
| Reporting and Batch Count Capability: The EBL12 comes with advanced reporting and batch count capabilities. This feature enables users to monitor and track assembly data, enhancing productivity and quality control. | |
