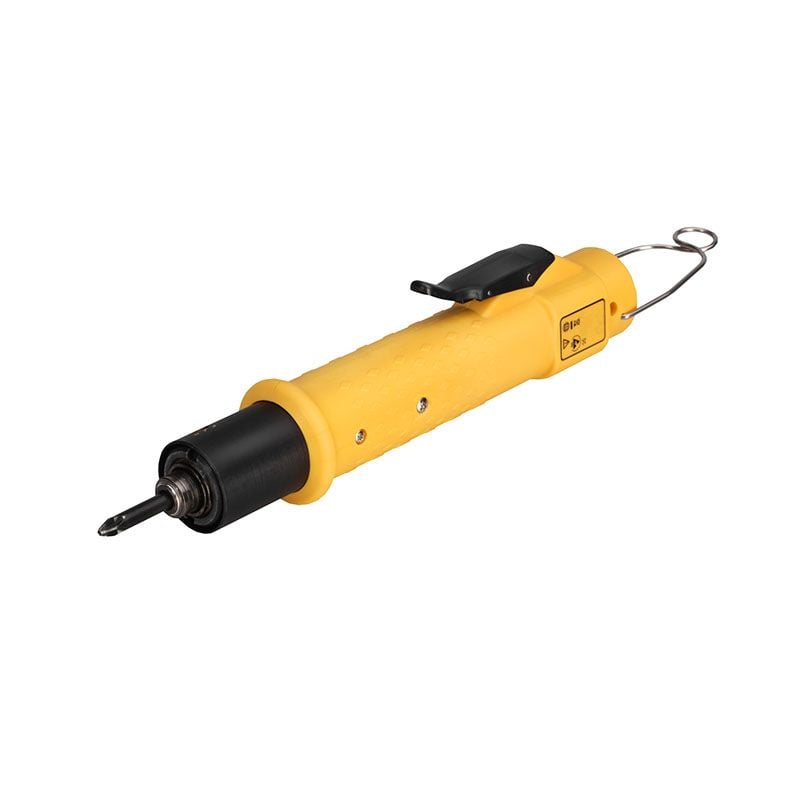

8431 0170 29 | EBL25-SS-RE | Inline Brushless Electric Screwdriver, soft stop, reporting, 1 - 2.5 Nm, 930 rpm, 1/4'' hex image 1
Click the image to zoom
Atlas Copco
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
Atlas Copco8431 0170 29

EBL25-SS-RE | Inline Brushless Electric Screwdriver, soft stop, reporting, 1 - 2.5 Nm, 930 rpm, 1/4'' hex

Elevate your low torque assembly operations with the Atlas Copco EBL25-SS-RE Inline Brushless Electric Screwdriver. Experience the perfect blend of power, durability, and ergonomics. Invest in this revolutionary tool and unlock new levels of productivity and efficiency in your assembly line.

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Warning:California Proposition 65Trade Regulations Advisory Notice

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents4 files

Recommended Accessories

7 items

Add-on accessories that can be purchased alongside this product.

ProductPriceQty
4220 0347 004220 0347 00 | CABLE1View details
8431 0170 758431 0170 75 | EBL RE-DRIVE1View details
8431 0170 768431 0170 76 | EBL RE MODULE1View details
SDS8432 0830 00 | SDS | M1 - M5 Screw Dispenser for magnetized bits1View details
BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08$76.081View details
NIST CERTNIST Certificate$150.00$150.001View details
QCI-100QCI-100 | Torque Tester 10 - 100 Lb. In., .25'' Sq. Dr.$1,232.81$1,232.811View details

Details

Product information

Overview

Introducing the EBL25-SS-RE Inline Brushless Electric Screwdriver, a revolutionary assembly tool that combines cutting-edge technology with superior ergonomics. Engineered by Atlas Copco, this electric screwdriver sets new standards for low torque screwdrivers in the industry.

  • Min Torque(In Lb): 8.8
  • Max Torque(In Lb): 22.1
  • Drive Size: 1/4'' hex
  • Free Speed(RPM): 930
  • Voltage: 120V
  • Start Type: Push or lever start configurable
Technical Specifications
Length235 mm
Weight1.8 lb
Bit Drive1/4' Hex
StyleStraight
Screw CapacityM2.5-4
Shut Off SystemClutch
Max Torque2.5 Nm
Min Torque1 Nm
Soft Joint Max Torque2.5 Nm
Soft Joint Min Torque1 Nm
Torque Scatter (3s)<= 15 %
Free Speed930 r/min
Max Speed930 r/min
Sound Pressure<70 dB(A)
Sound StandardISO15744
Vibration StandardISO28927-2
Vibration<2.5 m/s2
Motor Power20 W
Secondary Motor Voltage20 V
Motor Voltage Typed.c.
Motor Voltage30 V
Ingress Protection RatingIP20
MPNEBL25-SS-RE
Features & Benefits
Unrivaled Durability: Equipped with a state-of-the-art brushless motor, the EBL25-SS-RE delivers exceptional power and durability. Say goodbye to the limitations of traditionally powered competitors that burn out easily. This screwdriver is built to withstand the most demanding low torque operations
Unmatched Ergonomics: Experience unparalleled operator comfort with the EBL25-SS-RE's unique patented ergonomics. Designed with human factors in mind, this screwdriver minimizes strain and fatigue, allowing operators to work efficiently for extended periods.
Configurable Start Options: The EBL25-SS-RE offers the flexibility of choosing between push or lever start. This feature allows users to select the most comfortable and efficient starting method based on their preferences and specific applications.
Reporting and Batch Count Capability: The EBL25-SS-RE comes with built-in reporting and batch count capabilities. This feature enables users to monitor and track assembly data, ensuring quality control and optimizing productivity.
